Quick Details
-
CaO Content (%):
-
-
-
CrO Content (%):
-
-
-
SiC Content (%):
-
-
-
Place of Origin:
-
Henan, China
-
Model Number:
-
M-98/M-97A/M-97B/M-95A/M-95B/M-91/M-89
-
Brand Name:
-
Kerui Refractory
-
Processing Service:
-
Packaging
-
Name:
-
Magnesia Brick
-
Size:
-
230x114x65mm or customized
-
BULK DENSITY:
-
2.85~3.00 g/cm3
-
Certificate:
-
ISO9001;ISO14001;OHSAS18001
-
Compressive strength:
-
30~60MPa
-
Coefficient of thermal conductivity:
-
2.7~2.9 w/(m`K)
-
Apparent Porosity:
-
16~20%
-
CCS:
-
45~60 MPa
-
Application:
-
Alkaline open hearth and electric furnace for steelmaking
-
Advantage:
-
High working temperature
Quick Details
-
SiO2 Content (%):
-
1.0%~2.5%
-
Al2O3 Content (%):
-
-
-
MgO Content (%):
-
89.0%~97.5%
-
CaO Content (%):
-
-
-
CrO Content (%):
-
-
-
SiC Content (%):
-
-
-
Place of Origin:
-
Henan, China
-
Model Number:
-
M-98/M-97A/M-97B/M-95A/M-95B/M-91/M-89
-
Brand Name:
-
Kerui Refractory
-
Processing Service:
-
Packaging
-
Name:
-
Magnesia Brick
-
Size:
-
230x114x65mm or customized
-
BULK DENSITY:
-
2.85~3.00 g/cm3
-
Certificate:
-
ISO9001;ISO14001;OHSAS18001
-
Compressive strength:
-
30~60MPa
-
Coefficient of thermal conductivity:
-
2.7~2.9 w/(m`K)
-
Apparent Porosity:
-
16~20%
-
CCS:
-
45~60 MPa
-
Application:
-
Alkaline open hearth and electric furnace for steelmaking
-
Advantage:
-
High working temperature
Product Description

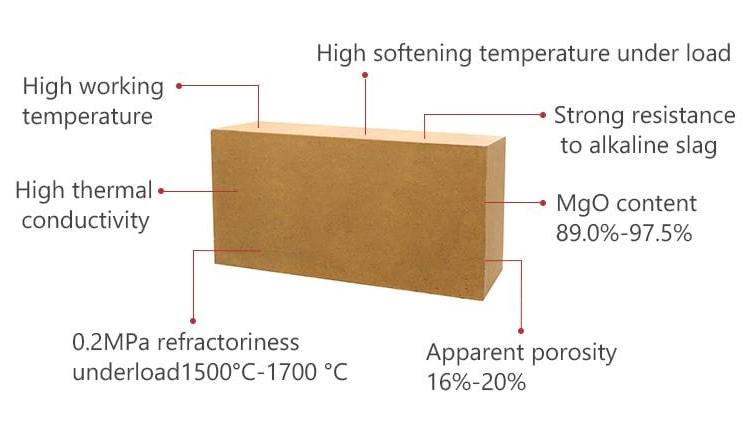

Magnesium brick is an alkaline refractory material mainly composed of magnesium oxide, with a magnesium oxide content of up to 91%, and periclase as the main crystal phase. Meanwhile, it has high refractoriness at 2000℃ (3632℉) and strong resistance to alkaline corrosion, they have excellent high-temperature mechanical strength and volume stability.
|
Item/Grade
|
|
M-98
|
M-97A
|
M-97B
|
M-95A
|
M-95B
|
M-91
|
M-89
|
||||||
|
ω (MgO)/%
|
μ0 ≥
|
97.5
|
97.0
|
96.5
|
95.0
|
94.5
|
91.0
|
89.0
|
||||||
|
|
σ
|
1.0
|
|
|
|
|
1.5
|
|
||||||
|
ω (SiO
2
)/%
|
μ0 ≤
|
1.00
|
1.20
|
1.50
|
2.00
|
2.50
|
/
|
/
|
||||||
|
|
σ
|
0.3
|
|
|
|
|
|
|
||||||
|
ω (CaO)/%
|
μ0 ≤
|
/
|
/
|
/
|
2.00
|
2.00
|
3.00
|
3.00
|
||||||
|
|
σ
|
0.3
|
|
|
|
|
|
|
||||||
|
Apparent Porosity/%
|
μ0 ≤
|
16
|
16
|
18
|
16
|
18
|
18
|
20
|
||||||
|
|
σ
|
1.5
|
|
|
|
|
|
|
||||||
|
Bulk Density (g/cm³)
|
μ0 ≥
|
3.00
|
3.00
|
3.00
|
2.95
|
2.95
|
2.90
|
2.85
|
||||||
|
|
σ
|
0.3
|
|
|
|
|
|
|
||||||
|
Cold Crushing Strength/MPa
|
μ0 ≥
|
60
|
60
|
60
|
60
|
60
|
60
|
50
|
||||||
|
|
X
min
|
50
|
50
|
50
|
50
|
50
|
50
|
45
|
||||||
|
|
σ
|
10
|
|
|
|
|
|
|
||||||
|
0.2MPa Refractoriness Underload/℃
|
μ0 ≥
|
1700
|
1700
|
1700
|
1650
|
1650
|
1560
|
1500
|
||||||
|
|
σ
|
15
|
|
|
|
|
|
|
||||||
|
Permanent Linear Change/%
|
X
min
~X
max
|
1650℃*2h -0.2-0
|
|
|
1650℃*2h -0.3-0
|
|
1600℃*2h -0.5-0
|
1600℃*2h -0.6-0
|
||||||
Specification
Key Features
Refractory bricks are characterized by their ease of installation, thermal insulation, heat resistance, wear resistance, and chemical erosion resistance. They protect the
furnace
shell and are ideal for use in various industrial high-temperature kilns.
High compressive strength
Strong erosion resistance and stable volume at high temperatures.
High load softening temperature
Good thermal conducti
vity, high
fire resistance and load softening point.
High quality raw materials
Using excellent raw materials, it has good wear resistance at high temperatures and a long service life.
Processing customization
We can provide customized one-stop production and processing services according to customer requirements.
Good slag resistance
Magnesia bricks are alkaline refractory materials with periclase as the main crystal phase and high melting point second solid phase as the main bonding phase, and less glass phase.
Applicable to multiple ranges
Mainly used for steelmaking alkaline open hearth, electric furnace bottom and furnace wall, permanent lining of oxygen converter, non-ferrous metal smelting furnace, etc.
Applications
Glass Industry
The brick are used in glass melting furnaces and regenerators.
Petrochemical Industry
The brick are utilized in kilns and furnaces for ceramic production.
Steel Industry
The brick is extensively used to line the steel ladles, blast furnaces, and other high-temperature equipment.
Ceramic Industry
The brick is used in petrochemical processes, such as the construction of cracking furnaces and reformers.
Cement Industry
The brick are used in cement kilns and other cement production equipment.
Power Station Industry
The brick is used in boilers, incinerators, and other high-temperature equipment in power plants.
Production Process
KERUI Refractory
Zhengzhou Kerui (Group) Refractory Co., Ltd.
is located in China’s largest refractory industry zone: Chaohua Town, Xinmi City, Henan Province.
KERUI Refractory strives to provide top-notch solutions and services for high-temperature industries worldwide, including iron steel, aluminum, power, glass, boiler, non-ferrous, cement industry, etc.
KERUI has a diverse and extensive global customer base, with clients located in various regions around the world. our high-quality products and services have earned us a reputation for excellence, making us a preferred choice for many industries.
Our commitment to quality and customer satisfaction has allowed us to build strong relationships with clients in North America, South America, Europe, Asia, Africa, and beyond. We continually strive to exceed our customers' expectations, delivering reliable products and exceptional service at all times.
We work closely with our customers to understand their unique needs, providing tailored solutions that meet their specific requirements.
KERUI Refractory strives to provide top-notch solutions and services for high-temperature industries worldwide, including iron steel, aluminum, power, glass, boiler, non-ferrous, cement industry, etc.
KERUI has a diverse and extensive global customer base, with clients located in various regions around the world. our high-quality products and services have earned us a reputation for excellence, making us a preferred choice for many industries.
Our commitment to quality and customer satisfaction has allowed us to build strong relationships with clients in North America, South America, Europe, Asia, Africa, and beyond. We continually strive to exceed our customers' expectations, delivering reliable products and exceptional service at all times.
We work closely with our customers to understand their unique needs, providing tailored solutions that meet their specific requirements.
With feasible solutions and considerate service, Kerui has dece loped stable cooperation relationships with global customers.
Our cooperation is based on a common win-win goal. Together with Kerui, we can create innovative solutions and realize your success in high temperature industries.
Our cooperation is based on a common win-win goal. Together with Kerui, we can create innovative solutions and realize your success in high temperature industries.
FAQ
1. Are we a manufacturer or supplier?
We have surely been a reliable manufacturer since 2004.
2. OEM, ODM?
Most certainly, we can also customizable to meet unique requirements, for instance, indicators, sizes, etc.
3. Project questions, such as kiln maintenance, available for consultation?
Yes, PLEASE, We have experienced product technical consultants to communicate online.
4. How do you conduct quality testing on your products?
We strictly follow the quality management system, and we have a logistics chemistry laboratory. Here are some of the ways we conduct quality testing:
1) Raw material inspection
2) In-process inspection
3) Finished product inspection
4) Performance testing
5) Stability testing
5. How can I get a sample?
Sure, before your first purchase order, you can get a free test sample.
We have surely been a reliable manufacturer since 2004.
2. OEM, ODM?
Most certainly, we can also customizable to meet unique requirements, for instance, indicators, sizes, etc.
3. Project questions, such as kiln maintenance, available for consultation?
Yes, PLEASE, We have experienced product technical consultants to communicate online.
4. How do you conduct quality testing on your products?
We strictly follow the quality management system, and we have a logistics chemistry laboratory. Here are some of the ways we conduct quality testing:
1) Raw material inspection
2) In-process inspection
3) Finished product inspection
4) Performance testing
5) Stability testing
5. How can I get a sample?
Sure, before your first purchase order, you can get a free test sample.
