Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CO-WIN
-
Year:
-
2019
-
Voltage:
-
110-220V
-
Dimension(L*W*H):
-
790*800*2100MM
-
Weight (T):
-
0.68 T
-
Motor Power (kw):
-
2 kw
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Strcture Type:
-
Four Columns
-
Processing material:
-
Metal Sheet, Carbon Steel, Stainless Stee
-
Light Curtain:
-
Customer Optional
-
Driving Pressure:
-
0.4-0.7MPA
-
Daylight:
-
350mm
-
Stroke:
-
100-350mm
-
Working Area:
-
420*420mm
-
Product name:
-
Power Press Machine
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
150
-
Return Force (kN):
-
15 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CO-WIN
-
Year:
-
2019
-
Voltage:
-
110-220V
-
Dimension(L*W*H):
-
790*800*2100MM
-
Weight (T):
-
0.68 T
-
Motor Power (kw):
-
2 kw
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Strcture Type:
-
Four Columns
-
Processing material:
-
Metal Sheet, Carbon Steel, Stainless Stee
-
Light Curtain:
-
Customer Optional
-
Driving Pressure:
-
0.4-0.7MPA
-
Daylight:
-
350mm
-
Stroke:
-
100-350mm
-
Working Area:
-
420*420mm
-
Product name:
-
Power Press Machine
Product Description
|
Model
|
CW-AF-20T
|
CW-AF-30T
|
CW-AF-40T
|
CW-AF-50T
|
CW-AF-60T
|
CW-AF-80T
|
|||||
|
Pressure capacity
|
20T
|
30T
|
40T
|
50T
|
60T
|
80T
|
|||||
|
Working height(mm)
|
350
|
350
|
350
|
350
|
350
|
350
|
|||||
|
Cylinder size
|
ø125mm
|
ø150mm
|
ø150mm
|
ø180mm
|
ø180mm
|
ø210mm
|
|||||
|
Power
|
AC220V,60Hz
|
AC220V,60Hz
|
AC220V,60Hz
|
AC220V,60Hz
|
AC220V,60Hz
|
AC220V,60Hz
|
|||||
|
Weight(kg)
|
500
|
550
|
620
|
680
|
750
|
880
|
|||||
|
Driving pressure
|
Theoretical output
|
|
|
|
|
|
|||||
|
0.4MPa
|
136.6KN
|
196.6KN
|
270.1KN
|
352KN
|
400.5KN
|
506.9KN
|
|||||
|
0.5MPa
|
170.7KN
|
245.8KN
|
337.6KN
|
440KN
|
500.6KN
|
633.6KN
|
|||||
|
0.6MPa
|
204.9KN
|
295KN
|
405.2KN
|
528KN
|
600.8KN
|
760.4KN
|
|||||
|
0.7MPa
|
239KN
|
344KN
|
472.7KN
|
616KN
|
700.9KN
|
887.1KN
|
|||||
Detailed Images

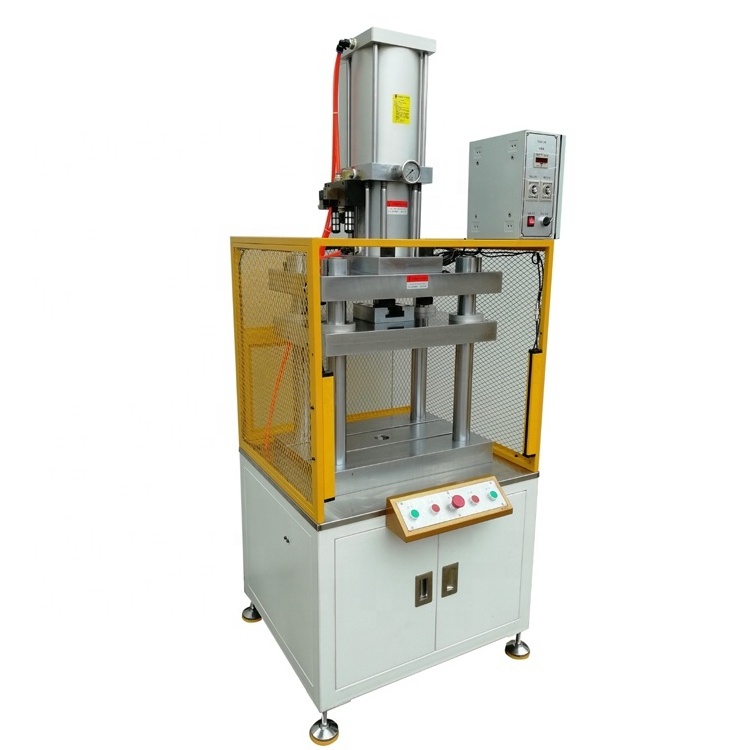

1. Light curtain, two hands start button, protective fence, multiple safety protection.
2. The working area table plate has the advantages of flat grinding hard chromium plating, high precision, abrasion resistance and rust resistance;
3. Desktop stainless steel plate, scratch, rust prevention;
Electrical components adopt
international famous brands,
reliable and stable quality,
convenient maintenance.
Application
Related Products
Packing&Shipping
Company Introduction
Co-Win Machinery Equipment Co.,Ltd supply a wide range of high quality punching
machine, hydraulic press machine, automatic riveting machine, eyelet punching
machine, hydro pneumatic press machine, air liquid booster pump, pneumatic
hydraulic components and other automation equipment. Committed to the complete
solution from design to manufacturing to meet customer demand.
Our company has a professional technical team, nearly 30 years of experience in this
area. Our products are widely used in aerospace, new energy, automobile and
boating, petrochemical, mold, clothing and other fields.Our products are exported to
Europe, South America, North America, southeast Asia, South Africa and other
places.
Co-Win has always adhered to the principle of "Integrity, Professionalism,
Technology and Innovation", to provide high quality solutions to the customers
and all aspects of service, strive to make the world love made in China.Corporate
Philosophy: Integrity as Root, Customer-Based Culture; Science and Technology
Innovation, Sharing and Co-Win.
Our Services & Strength
1. Products have a number of patents, the accumulation of rich industry experience,
mature and stable technology;
2. Each product is strictly in accordance with the design requirements, process flow,
process testing, to ensure reliable quality;
3. Excellent workmanship, beautiful appearance, energy saving and environmental
protection, high efficiency;
4. Modular design, can be customized according to customer requirements, convenient
after-sales maintenance;
5. Rich product line, complete specifications, can meet customers' diverse needs;
6. A number of certification, in line with international standards.
Certifications
FAQ
1.Professional technical team, nearly 30 years of industry experience;
2.Lean production management mode combines market demand, product research and
development, production and manufacturing,pre-sales quality and after-sales service;
3.Advanced equipment, mature technology, with a number of independent intellectual ;
4.Complete quality control, assured quality, from raw material procurement, production
process control, to finished product inspection, packaging, full field monitoring traceability,
to ensure that every product qualified;
5.Has three specialized processing and manufacturing factories, sufficient inventory,
short delivery time;
6.Support customized, design according to customer requirements to meet the diversified
demand of customers;
7.Perfect after-sales service system and after-sales quality tracking system;
8.Professional sales system, rich experience in export related operation process.
