Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SHENZHOU
-
Dimension(L*W*H):
-
2800x1600x1200mm
-
Weight:
-
3.1 KG
-
Power:
-
2.5
Quick Details
-
Type:
-
Shuttle Loom
-
Production Capacity:
-
99.9%
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China
-
Brand Name:
-
SHENZHOU
-
Dimension(L*W*H):
-
2800x1600x1200mm
-
Weight:
-
3.1 KG
-
Power:
-
2.5
Product Description
|

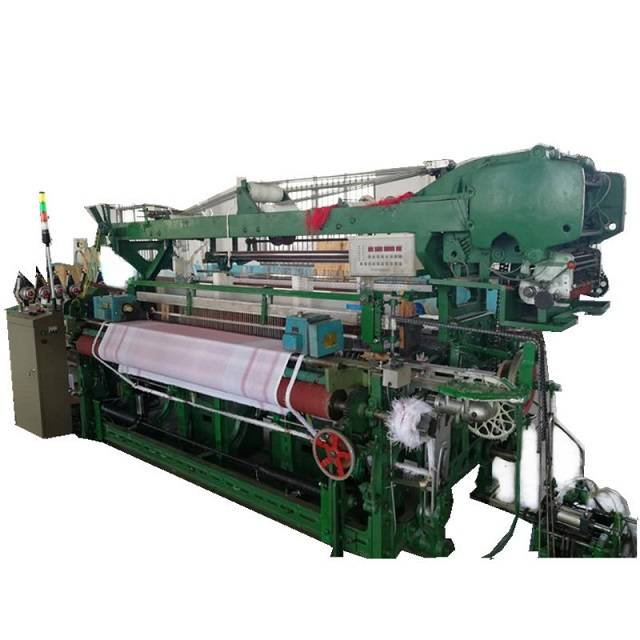

Model
|
TD736
|
|
Reed width (cm)
|
180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
|
|
Rotation Speed(RPM)
|
190-300
|
|
Yarn Range
|
Cotton:6Ne-80Ne,Wool:10Ne-135Nm,Chemical Fabric:900D-70D
|
|
Shedding
|
Upper Mechanical(electronic)dobby,spring reversing motion, 20 or 24 shafts
|
|
Weft Insertion Form
|
Six Linkages Weft Insertion
|
|
Beating-up Motion
|
Four Linkages Short Crank Arm Beating-Up
|
|
Take-up and Rolling-up
|
Continous take-up and separate rolling-up,full rolling diameter 400mm
|
|
Weft Selection
|
4-6 colors
|
|
Diameter of Warp Beam
|
600mm
|
|
Warp Stop
|
6 rows electric warp stop
|
|
Weft Stop
|
Piezoelectric Ceramic Sensor Control Weft Stop
|
|
Electric System
|
PLC
|
|
Power
|
1.8-2.2KW
|
|
Weight
|
3200-3500KG
|
|
Overall Size
|
3700x2000x1800(200cm/78'')
|
Packing & Delivery
wooden case
