SPS3000 screw valve is specially designed for precision solder paste dispensing process. The system controls the precise rotation angle of the screw. The solder paste moves along the cavity of the screw thread groove and is extruded from the precision needle to achieve precise quantitative dispensing, which can meet different product applications.

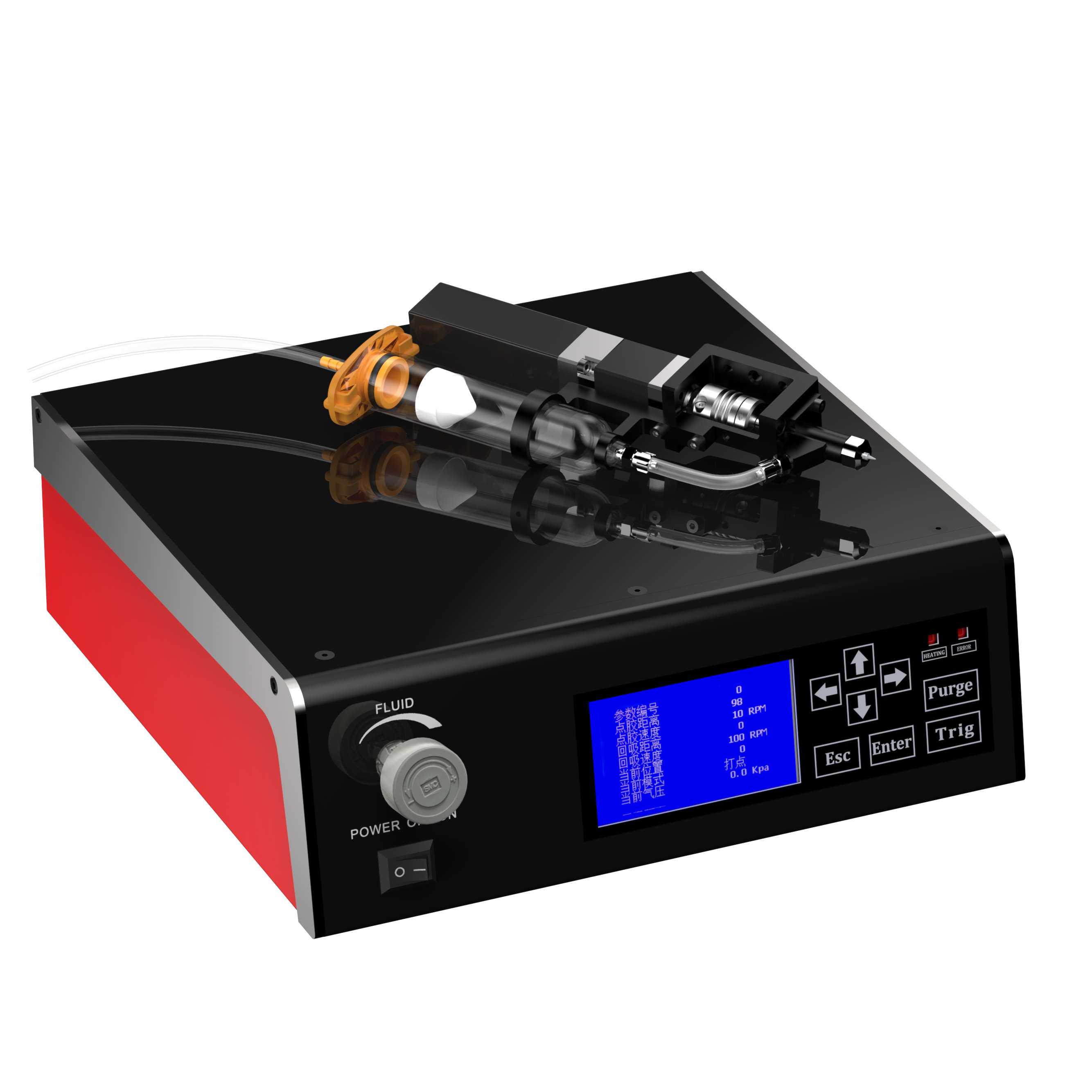

SC30 screw valve controller realizes single point and line drawing mode. The amount and speed of solder paste applied in single point mode can be set. In line drawing mode, the amount and speed of solder paste applied. SC30 controller can directly communicate and control with SOFOBOT desktop robot, can accept trigger IO signal or foot pedal signal, and the configuration can be set through RS232 signal.
- Product Details
- {{item.text}}
Quick Details
-
Brand:
-
Solderforce
-
Product name:
-
Solder paste screw valve
-
Material:
-
Metal
-
Dimensions(LxDxH):
-
81 x 32 x 217.5 mm
-
Weight:
-
420g
-
Needle Size:
-
0.1 mm - 0.7 mm
-
Min. dot size:
-
150 μm
-
Min line width:
-
160 μm
-
Max. speed:
-
600 RPM
-
Driver:
-
AC servo motor,Precision reducer
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Solderforce
-
Weight (KG):
-
0.6
-
Brand:
-
Solderforce
-
Product name:
-
Solder paste screw valve
-
Material:
-
Metal
-
Dimensions(LxDxH):
-
81 x 32 x 217.5 mm
-
Weight:
-
420g
-
Needle Size:
-
0.1 mm - 0.7 mm
-
Min. dot size:
-
150 μm
-
Min line width:
-
160 μm
-
Max. speed:
-
600 RPM
-
Driver:
-
AC servo motor,Precision reducer
Products Description
|
Type
|
SPS3000
|
|
Product Name
|
Dispensing screw valve
|
|
Features
|
• Contact Solder Paste Point Coating Technology
• The speed is faster than the syringe air pressure mode.
• Minimum solder paste spot diameter: 150 um • The thinnest solder paste line width: 160 um • High precision, high consistency • Easy maintenance and cleaning • Low maintenance cost • Solder paste flow rate is adjustable |
|
Application
|
• Tin on pads
• BGA solder paste balling
• Solder the pins with tin
• Component micro-point fixation
• Tin on inductive component pins
• Non-contact solder paste
• Surface dot solder paste
• Connector, terminal pin point tin
• Solder paste line drawing
|
|
Size
|
|
81 x 32 x 217.5mm
|
|
|
Net weight
|
|
420g
|
|
|
Nozzle diameter
|
|
0.1mm -0.7mm
|
|
|
Minimum point diameter
|
|
150 μm
|
|
|
the most detailed line width
|
|
160 μm
|
|
|
Maximum speed
|
|
600 RPM
|
|
|
Drive control
|
|
AC servo motor
|
|
Company View
Exhibition
Certifications
More Products
Packaging & Shipping
FAQ
Q1: Are you the factory or trading company?
A: We provide full-process hardware and software R&D and manufacturing.
Q2:What is your terms of packing?
A: Generally, we pack our goods in Foam and wooden case. If you have legally registered patent, we can pack
the goods in your branded boxes after getting your authorization letters.
the goods in your branded boxes after getting your authorization letters.
Q3:What's your payment term?
A: Payment≤5000USD, 100% T/T in advance. Payment≥5000 USD, 50% T/T in advance, balance before shipment.
Q4:Do you provide samples ?
A: Sorry, free sample is not available at the present stage.
Q5:What is your terms of delivery?
A: FOB
Q6: Can I have my LOGO on the products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee is free.
Q7:
Do you offer certification for your equipment?
A:
Of course, we can provide CE , ISO , SGS certification and so on.
