Quick Details
-
Product Name:
-
NE-80N refrigerator magnetic lock
-
holding force:
-
80kg(150Lbs)
-
Rated Operating Voltage:
-
12V DC
-
Current consumption:
-
12V/220mA
-
Optional Functions:
-
Lock Status Sensors,Relock Delay Timer,Buzzer
-
type:
-
fail safe power to lock
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal
-
size:
-
small
-
power:
-
12v DC
-
rfid card:
-
EM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
nordson
-
Model Number:
-
NE-80
-
Product Name:
-
NE-80N refrigerator magnetic lock
-
holding force:
-
80kg(150Lbs)
-
Rated Operating Voltage:
-
12V DC
-
Current consumption:
-
12V/220mA
-
Optional Functions:
-
Lock Status Sensors,Relock Delay Timer,Buzzer
-
type:
-
fail safe power to lock
-
Suitable for:
-
Wooden & Aluminum & Glass & Fireproof &Metal
-
size:
-
small
-
power:
-
12v DC
-
rfid card:
-
EM

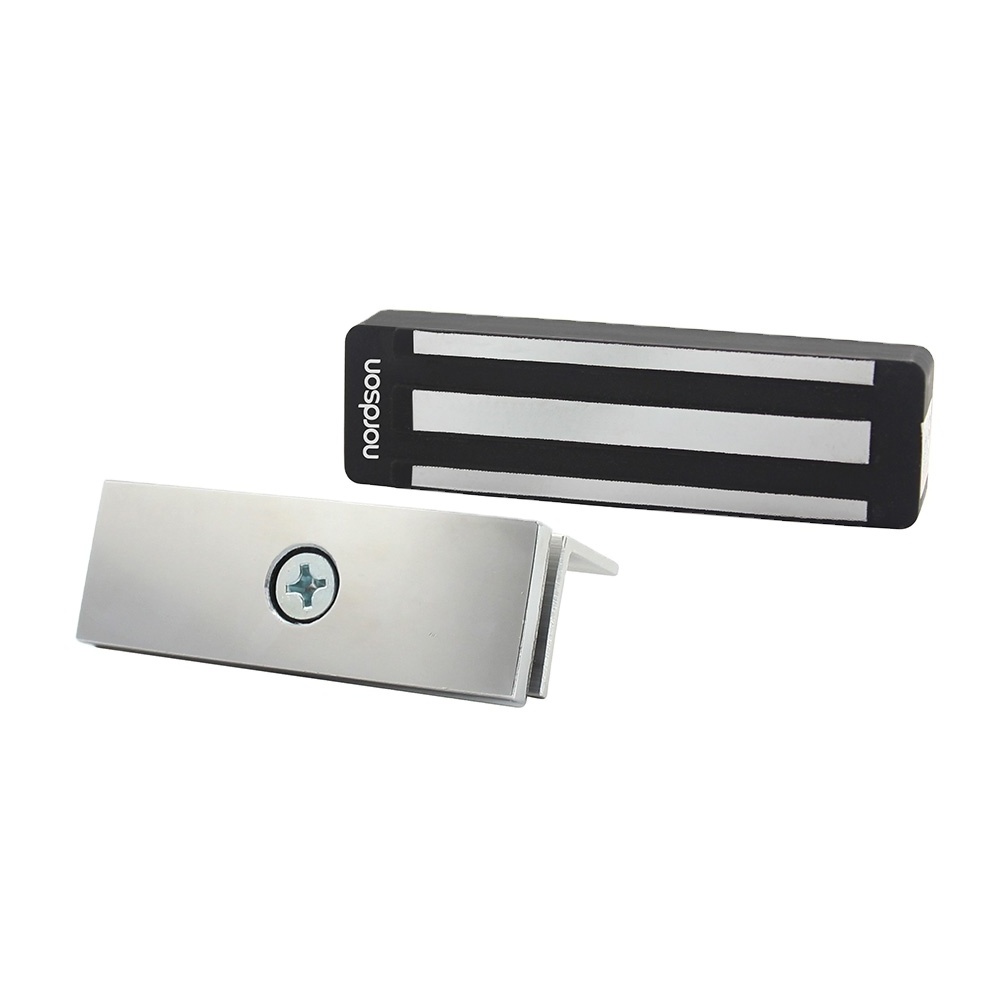

80kg 150lbs Mini magnetic lock electronic lock refrigerator lock
NE-80 Ultra-thin single door mini magnetic lock with bracket,special used to small cabinet door,like door window,storage cupboard.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
| holding force | 140Lbs |
| type | fail safe power to lock |
| rfid card | EM |
| power | 12v DC |
| size | small |
| Holding Force | 80kg(150Lbs) |
| Rated Operating Voltage | 12V DC |
| Current consumption | 12V/220mA |
| Optional Functions | Lock Status Sensors,Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10~+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 90Lx25Wx15H(mm) |
| Armature Plate Dimensions(L x W x D) | 70Lx27Wx10H(mm) |
| Weight in kg | 0.8kg |
| CE-mark for building | Yes |
| Rohs-mark for building | Yes |
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance.
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for refrigerator lock;
three-year warranty for access control panel, electromagnetic lock, electric bolt and electric strike;
one year warranty for biometric access control system, exit button, bracket, and power supply.
The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
