Quick Details
-
Product name:
-

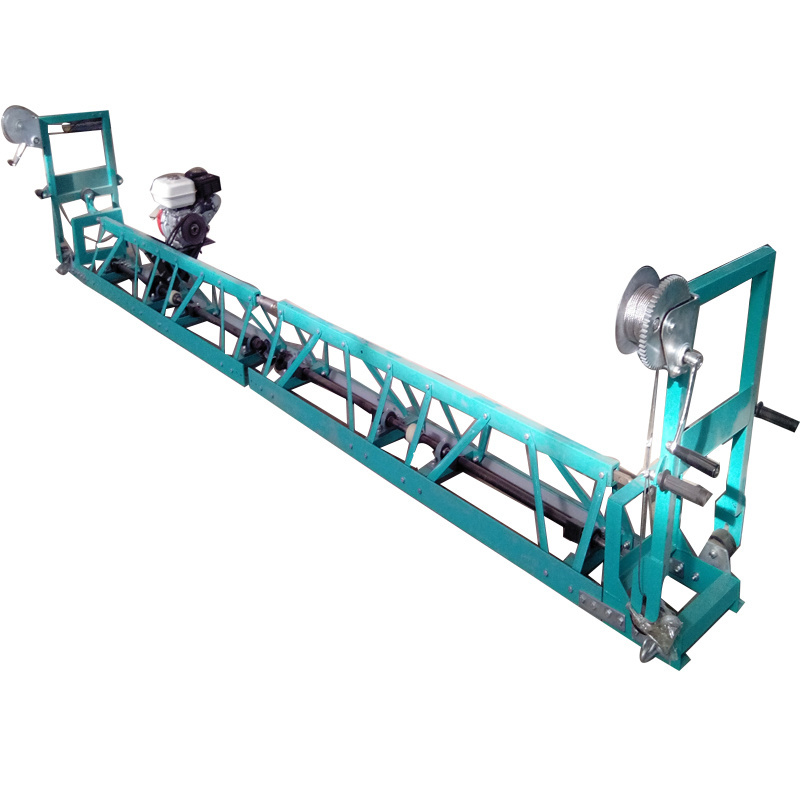

5500mm super quality concrete floor leveling machine
-
Nominal amplitude:
-
0.6mm
-
Vibration Frequency:
-
70HZ
-
Power:
-
9.0hp/3600rpm
-
Fuel Tank Capacity:
-
6.0L
-
Lubricating oil:
-
1.1L
-
2 meters combination Dimensions:
-
405mm*2000mm
-
1 meter combination Dimensions:
-
405mm*1000mm
-
0.5 meter combination Dimensions:
-
405mm*250mm
Quick Details
-
Weight (KG):
-
550
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
5500mm super quality concrete floor leveling machine
-
Nominal amplitude:
-
0.6mm
-
Vibration Frequency:
-
70HZ
-
Power:
-
9.0hp/3600rpm
-
Fuel Tank Capacity:
-
6.0L
-
Lubricating oil:
-
1.1L
-
2 meters combination Dimensions:
-
405mm*2000mm
-
1 meter combination Dimensions:
-
405mm*1000mm
-
0.5 meter combination Dimensions:
-
405mm*250mm
super quality concrete floor leveling machine
customer using our machine and feedback
Kindly reminder:
We are real factory can do as customized :
For our products more technique data or working vedio.Please contact immediately.
whatsapp:008618815378376
|
Model |
SCL-55( ≤ 8500mm) |
SCL-55( ≤ 5500mm) |
SCL-55( ≤ 9000mm) |
|
Nominal amplitude |
0.6mm |
0.6mm |
0.6mm |
|
Vibration Frequency |
70HZ |
70HZ |
70HZ |
|
Model |
HONDA GX160 |
HONDA GX270 |
HONDA GX390 |
|
Fuel Type |
Gasoline Air cooling |
Gasoline Air cooling |
Gasoline Air cooling |
|
Power |
5.5hp/3600rpm |
9.0hp/3600rpm |
13.0hp/3600rpm |
|
Fuel Tank Capacity |
3.6L |
6.0L |
6.5L |
|
Lubricating oil |
0.6L |
1.1L |
1.1L |
|
2 meters combination Dimensions |
405mm*2000mm |
405mm*2000mm |
405mm*2000mm |
|
1 meter combination Dimensions |
405mm*1000mm |
405mm*1000mm |
405mm*1000mm |
|
0.5 meter combination Dimensions |
405mm*250mm |
405mm*250mm |
405mm*250mm |
Our product is the principle of high-frequency vibration integration in the traditional way of leveling, suitable for highways, railways, bridges, workshops , Square and other concrete areas, to achieve the concrete plane to mention pulp, compaction, leveling.
