Quick Details
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTX
-
Warranty Time:
-
2 YEARS
-
Gepon 1Gbps Uplink PON:
-
GEPON ONT PON EPON ONU
-
Support:
-
WDM, single fiber two-way transmission
-
Origin:
-
China(Mainland)
-
ONT Standard:
-
IEEE Std 802.1D, 1998 Edition, Me
-
Working temperature:
-
-20℃ ~ +60℃
-
Optical output power:
-
-1~+4dBm
-
Sent wavelength:
-
1310nm
-
Received wavelength:
-
1490nm
-
Power Supply:
-
100V ~ 240VAC, 50/60HZ
-
Receiving sensitivity:
-
< -25dBm
Quick Details
-
Type:
-
ONU
-
Model Number:
-
XPON ONU
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTX
-
Warranty Time:
-
2 YEARS
-
Gepon 1Gbps Uplink PON:
-
GEPON ONT PON EPON ONU
-
Support:
-
WDM, single fiber two-way transmission
-
Origin:
-
China(Mainland)
-
ONT Standard:
-
IEEE Std 802.1D, 1998 Edition, Me
-
Working temperature:
-
-20℃ ~ +60℃
-
Optical output power:
-
-1~+4dBm
-
Sent wavelength:
-
1310nm
-
Received wavelength:
-
1490nm
-
Power Supply:
-
100V ~ 240VAC, 50/60HZ
-
Receiving sensitivity:
-
< -25dBm
Products Description
Brief Overview

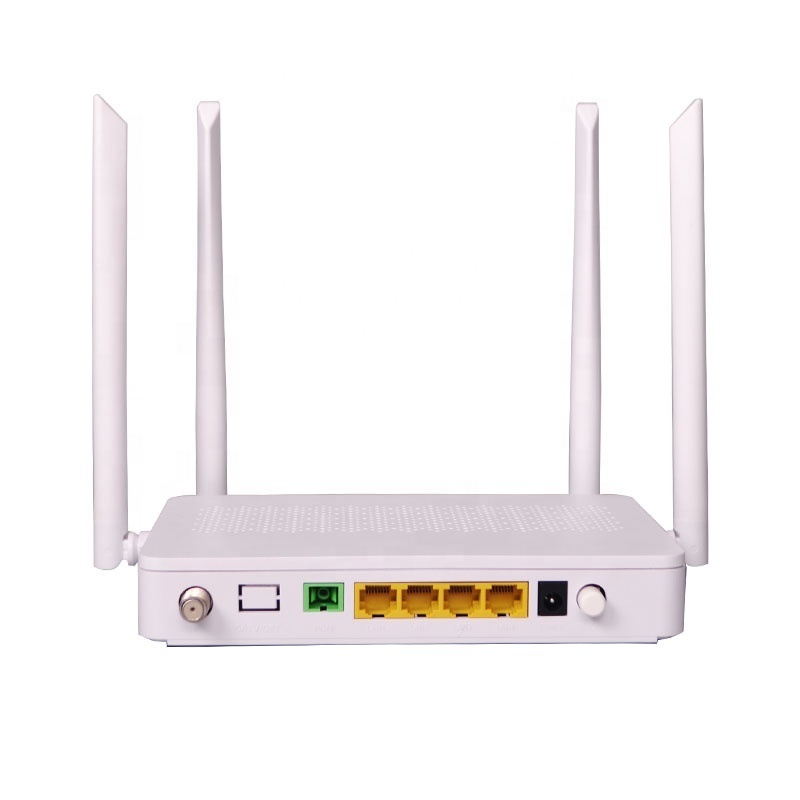

ONT-4GE-RFDW
is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (
2.4G+5G
) port and RF interface that providing with high-speed data services and high-quality video services to users.
Specification
Interface parameters
|
PON interface
|
• ClassB+
• -27dBm receiver sensitivity • Wavelength：upstream 1310nm，downstream 1490nm • Support WBF • Flexible mapping between GEMPort and TCONT • Authenticationmethod:SN/password/LOID(GPON) • Two-way FEC(Forwarderrorcorrection) • Support DBA for SRand NSR |
|
Ethernet port
|
• Stripping based on VLAN Tag/Tag for Ethernet port.
• 1:1VLAN/N:1VLAN/VLAN Pass-through • QinQVLAN • MACaddress limit • MACaddress learning |
|
WLAN
|
• IEEE 802.11b/g/n
• 2×2MIMO • Antenna gain：5dBi • WMM(Wi-Fi multimedia) • Multiple SSID multiple • WPS |
|
RF interface
|
• Supports standard RF interfaces
• Support hd data streaming |
5G parameters
|
Network standard
|
IEEE 802.11ac
|
|
Antennas
|
2T2R, support MU-MIMO
|
|
Maximum supported rates
|
20M:173.3Mbps
40M:400Mps 80M:866.7Mbps |
|
Data modulation type
|
BPSK QPSK 16QAM 64QAM 256QAM
|
|
Maximum output power
|
≤20dBm
|
|
Typical channel (customizable)
|
36、40、44、48、52、56、60、64、100、104、
108、112、116、120 、124、128、132、136、 140、144、149、153、157、161、165 |
|
Encryption mode
|
WPA、WPA2、WPA/WPA2、WEP、NONE
|
|
Encryption type
|
AES、TKIP
|
CATV parameters
|
|
project
|
unit
|
performance parameters
|
note
|
|
Optical
parameters |
Wavelength of light
|
nm
|
1200～1600
|
|
|
|
Optical connector
form |
|
SC/APC
|
Other
customizable |
|
|
Receiving light
power range |
dBm
|
-18～0
|
Other
customizable |
|
|
Optical AGC control accuracy
|
dBm
|
-15～0
|
Other
customizable |
|
Radio
frequency (rf) parameters |
Frequency range
|
MHz
|
47～1000
|
|
|
|
Output rf impedance
|
Ω
|
75
|
|
|
|
Output flatness
|
dB
|
±1.5
|
|
|
|
Number of RF ports
|
|
1
|
|
|
|
Nominal output level
|
dBuv
|
≥(75±1.5)
|
Other
customizable |
|
|
Output reflection loss
|
dB
|
>14
|
|
|
|
MER
|
dB
|
>31＠-15dBm
>34＠-9dBm
|
see*note1
|
|
Link
indicators |
C/N
|
dB
|
>51
|
GYT143-2000
|
|
|
CTB
|
dBc
|
>65
|
|
|
|
CSO
|
dBc
|
>61
|
|
|
|
Working
temperature |
℃
|
-10～+60
|
|
|
|
Storage temperature
|
℃
|
-40～+80
|
|
|
|
Working humidity
|
|
20%～90%
|
|
|
|
Store humidity
|
|
10%～95%
|
|
|
|
Dustproof
requirements |
|
《YD/T1475-2006》
|
|
|
|
MTBF
|
H
|
40000H
|
|
Features
Function Data
Properties for three layers
* PPPoE/static IP/DHCP address access
* NAT/NAPT
* ALG,UPnP
* DDNS/DNS server/DNS client
* IPv6/IPv4 dual-stack,DS-Lite
* Static route/default route
Multicast
* IGMP v2/v3snooping
* IGMP v2proxy
Qos
* Ethernet port speed limit
* 802.1p priority
* SP/WRR/SP+WRR
* Broadcast message speed limit
Security
* SPIFirewall
* MAC/IP/URL address filtering
O&M
* OMCI/WebUI/TR069
Powersaving
* Indicator light energy-efficient
* Timing switch
Intelligent interconnection
* WiFi intelligence coverage
* Support hd data streaming
* Any port anyservice
* Parental control
* L2/L3(IPv4) re-transmission: 1G forward，2G backward
* WiFi intelligence coverage
* Support hd data streaming
* Any port anyservice
* Parental control
* L2/L3(IPv4) re-transmission: 1G forward，2G backward
Properties for three layers
* PPPoE/static IP/DHCP address access
* NAT/NAPT
* ALG,UPnP
* DDNS/DNS server/DNS client
* IPv6/IPv4 dual-stack,DS-Lite
* Static route/default route
Multicast
* IGMP v2/v3snooping
* IGMP v2proxy
* IGMP v3proxy
* MLD v1/v2snooping
* MLD v1/v2snooping
Qos
* Ethernet port speed limit
* 802.1p priority
* SP/WRR/SP+WRR
* Broadcast message speed limit
Security
* SPIFirewall
* MAC/IP/URL address filtering
O&M
* OMCI/WebUI/TR069
Powersaving
* Indicator light energy-efficient
* Timing switch
