Quick Details
-
Brand Name:
-
XW/XY
-
Model Number:
-
XY36LN-2401500VH-TD
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
LED Adaptor
-
Output:
-
Single output voltage type
-
Input:
-
220-240VAC±10%;50/60Hz
-
Working Environment:
-
0℃-40℃ 5%-90%
-
Storage Environment:
-
-40℃-80℃ 5%-95%
-
Cooling method:
-
Natural Cooling down
-
Energy saving:
-
ERP V
-
Safety Standard:
-
EN61347/UL1310/UL8750
-
RoHS compliant:
-
Yes
-
Plugs available:
-
US/EU/UK/AU
-
Luminous Efficacy(lm/w):
-
90
Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XW/XY
-
Model Number:
-
XY36LN-2401500VH-TD
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
LED Adaptor
-
Output:
-
Single output voltage type
-
Input:
-
220-240VAC±10%;50/60Hz
-
Working Environment:
-
0℃-40℃ 5%-90%
-
Storage Environment:
-
-40℃-80℃ 5%-95%
-
Cooling method:
-
Natural Cooling down
-
Energy saving:
-
ERP V
-
Safety Standard:
-
EN61347/UL1310/UL8750
-
RoHS compliant:
-
Yes
-
Plugs available:
-
US/EU/UK/AU
-
Luminous Efficacy(lm/w):
-
90
Feature:
Spec customized
Constant Voltage mode
Meet PF
>0.9
Constant Voltage
Terminal Block/Fixed Input and Output Cable
Compact Size,Fully Enclosed Plastic
2 Years Warranty
| Input |
See below table |
|
| Output Voltage/Current/Watt | See below table | |
| Output cable | 2468/2464/1185/SPT-1/SPF1 | |
| Ripple Noise | 200mV | |
| PF | 0.5 | |
| Start time | 0.3s | |
|
Leakage current |
0.25mA max |
|
| Protection against Electric Shock | Class II;SELV | |
| MTPF | 50000Hours | |
| Ta;Tc | Ta:40℃;Tc:75a℃ | |
|
Insulation resistance |
50MΩ min |
|
| Energy saving | ERP V/CEC VI/DOE VI | |
| Safety Standard | EN61558-2-16/EN61347-2-13/UL1310 | |
| Waterproof | IP20 | |
| Packing | Inside:white box or PE bag;outside:carton | |
| Ratings: Input 220-240VAC,50/60HZ | ||||
| Model | Input current:A (Max) | Output voltage:V | Output current:A | Output power:W (Max) |
| XY06LS-XXXYYYVH-TD | 0.1 | 9.0-30.0 | 0.01-0.66 | 6.0 |
| XY12LS-XXXYYYVH-TD | 0.3 | 9.0-3 0.0 | 0.01-1.34 | 12.0 |
|
XY24LS-XXXYYYVH-TD /XY24LF-XXXYYYVQ-TD/FD |
0.5 | 12.0-36.0 | 0.67-2.0 | 24.2 |
|
XY36LN-XXXYYYYVH-TD/DD |
0.5 | 9.0-15.0 | 0.1-3.0 | 36.0 |

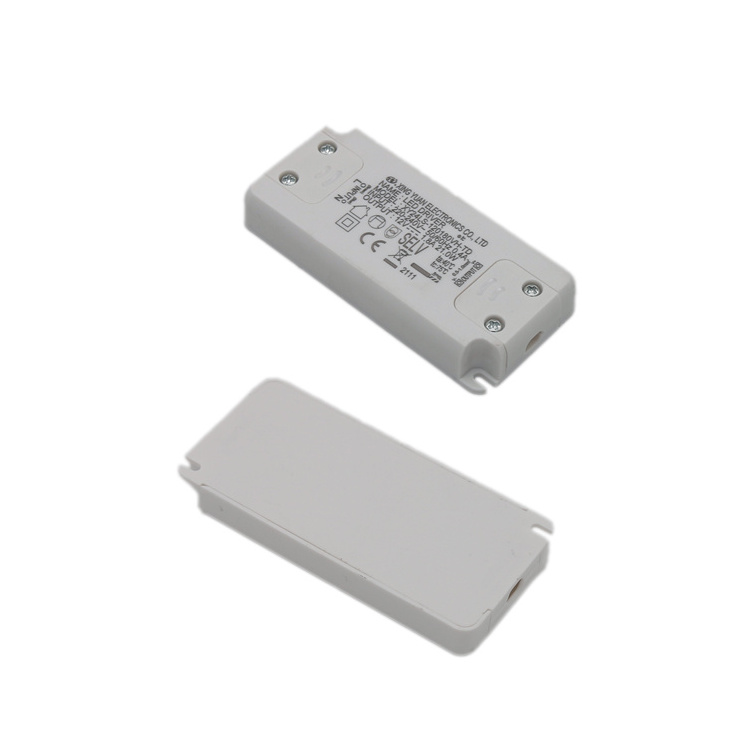

Model XY24LS LED Driver with CE Approval
Front Version & Back version
12V 3A 36W AC Adapter
