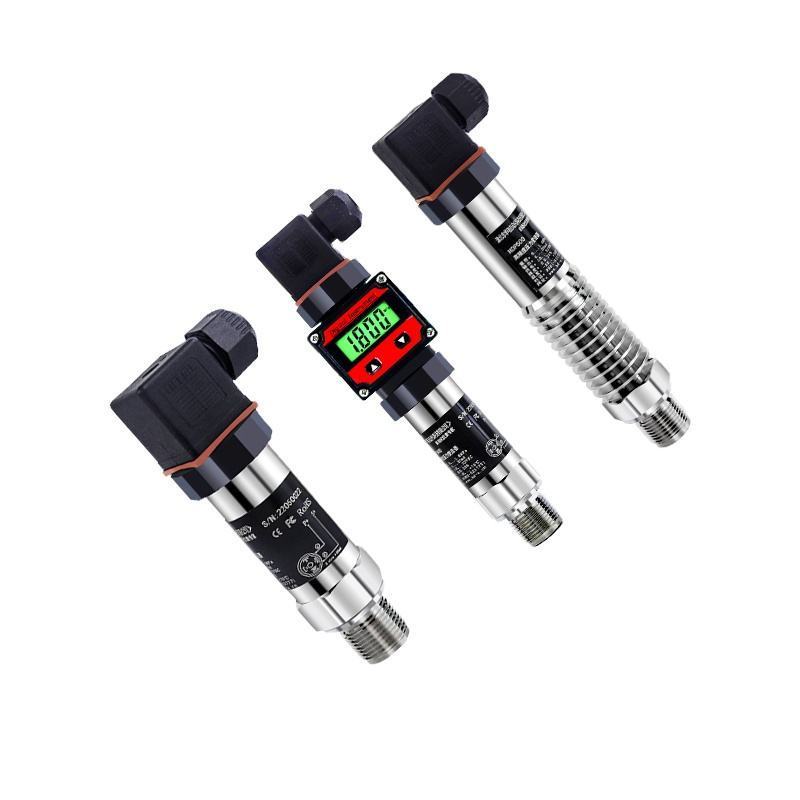

Quick Details
-
Model Number:
-
HDP500
-
Pressure range:
-
-0.1~0~100Mpa
-
Output signal:
-
4~20mA/0-10V/0-5V/0.5~4.5V
-
Accuracy:
-
0.25%FS/0.5%FS
-
Power supply:
-
24VDC/12VDC/5VDC/3.3V
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Process connection:
-
M20*1.5 G1/4 NPT1/4 (or Customized)
-
Measuring medium:
-
Oil Water Gas
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
huadianauto
-
Model Number:
-
HDP500
-
Pressure range:
-
-0.1~0~100Mpa
-
Output signal:
-
4~20mA/0-10V/0-5V/0.5~4.5V
-
Accuracy:
-
0.25%FS/0.5%FS
-
Power supply:
-
24VDC/12VDC/5VDC/3.3V
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Process connection:
-
M20*1.5 G1/4 NPT1/4 (or Customized)
-
Measuring medium:
-
Oil Water Gas
Source supply chain is your reliable choice！
100+ strategic partners of leading industrial companies
7*24-hour video/phone
technical support
Products Description
Going global and constantly breaking through
Industry-university-research driven enterprise innovation and high-quality development
Complete product certifications
variety styles，suitable for variety conditions
waterproof type
Suitable for outdoor use
High temperature resistant type
The highest temperature resistance is 0-500℃
LED display
No pressure unit displayed
LCD display
Display pressure unit
Anti-corrosion type
Suitable for acid, alkali, salt and other corrosive media
Flat film anti-blocking type
Suitable for food grade, viscous media
Explosion-proof
Suitable for hazardous media
Micro/differential pressure type
Suitable for micro pressure, wind pressure, differential pressure
High precision type
Monocrystalline silicon material, 0.075% accuracy, Hart Communication
Intelligent temperature compensation to ensure signal accuracy
2 times pressure range overload
Epoxy seal，Failure rate reduced >99%
FAQ
Q:Which media can be measured?
A:Can measure water, gas, air, oil, solution, etc.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Can vacuum negative pressure be measured?
A:Yes, conventionally there are -100KPa~0 and -100~+100KPa ranges, and the range can also be customized according to customer requirements.
Q:How is the quality of this product?
A:The failure rate of this product is less than 0.1%, and basically requires no maintenance. If there are any quality problems during the warranty period, we will directly mail a new product or refund.
Q:Can it withstand high temperature?
A:The temperature resistance of conventional products is -20~+70°C, and the highest temperature resistance can reach 350°C.Can measure high temperature liquid, steam.
Q: Is it corrosion resistant?
A: Yes, we have corrosion-resistant models, which can measure corrosive media such as strong acids and alkalis.
Q: What are the supply voltages?
A: We have 10-30VDC, 5VDC, 3.3VDC and other power supply methods.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Which pressure units can be set?
A: Pa, KPa, MPa, Psi, bar, mbar, mmH2O, kgf/cm2, atm, etc. can be set.
Q: Can the control function be realized?
A: With a measuring and controlling instrument, it can realize upper and lower limit alarms, high and low start and stop, and control water pumps and motors.
Q: Can the measurement range be set arbitrarily?
A: Yes, the range can be set arbitrarily according to customer requirements.
Q: What are the signals at the output?
A: Output signals include 4-20mA, 1-5V, 0-10V, 0-5V, 0.5-4.5V, RS485 (modbus-RTU), I2C, SPI, etc.
Q: What are the threaded interfaces?
A: Conventional threaded interfaces include G1/2, G1/4, M20*1.5, NPT1/2, NPT1/4, etc., and can also be customized according to customer requirements.
Q: Can it have a display?
A: Yes, we have LED and LCD display methods, LCD display is clearer and can display pressure units.
Q: Is there a flat film type?
A: We have flat membrane hygienic type, anti-blocking. It can measure milk, beer, beverages and other foods, as well as oil and viscous liquids.
Q: How much is the shipping time and cost
A: We cooperate with hundreds of logistics companies and can choose the fastest/cheapest shipping method
A:Can measure water, gas, air, oil, solution, etc.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Can vacuum negative pressure be measured?
A:Yes, conventionally there are -100KPa~0 and -100~+100KPa ranges, and the range can also be customized according to customer requirements.
Q:How is the quality of this product?
A:The failure rate of this product is less than 0.1%, and basically requires no maintenance. If there are any quality problems during the warranty period, we will directly mail a new product or refund.
Q:Can it withstand high temperature?
A:The temperature resistance of conventional products is -20~+70°C, and the highest temperature resistance can reach 350°C.Can measure high temperature liquid, steam.
Q: Is it corrosion resistant?
A: Yes, we have corrosion-resistant models, which can measure corrosive media such as strong acids and alkalis.
Q: What are the supply voltages?
A: We have 10-30VDC, 5VDC, 3.3VDC and other power supply methods.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Which pressure units can be set?
A: Pa, KPa, MPa, Psi, bar, mbar, mmH2O, kgf/cm2, atm, etc. can be set.
Q: Can the control function be realized?
A: With a measuring and controlling instrument, it can realize upper and lower limit alarms, high and low start and stop, and control water pumps and motors.
Q: Can the measurement range be set arbitrarily?
A: Yes, the range can be set arbitrarily according to customer requirements.
Q: What are the signals at the output?
A: Output signals include 4-20mA, 1-5V, 0-10V, 0-5V, 0.5-4.5V, RS485 (modbus-RTU), I2C, SPI, etc.
Q: What are the threaded interfaces?
A: Conventional threaded interfaces include G1/2, G1/4, M20*1.5, NPT1/2, NPT1/4, etc., and can also be customized according to customer requirements.
Q: Can it have a display?
A: Yes, we have LED and LCD display methods, LCD display is clearer and can display pressure units.
Q: Is there a flat film type?
A: We have flat membrane hygienic type, anti-blocking. It can measure milk, beer, beverages and other foods, as well as oil and viscous liquids.
Q: How much is the shipping time and cost
A: We cooperate with hundreds of logistics companies and can choose the fastest/cheapest shipping method
