Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CND
-
Voltage:
-
380V, 60HZ, 3 PHASE, 23KW
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2024
-
Toilet Roll Cutting Length:
-
80-200mm
-
Machine Speed:
-
200-260m/min
-
Cutting Knife Size (L*W*T):
-
4620* 90* 1.0mm
-
Machine Power:
-
380V, 60HZ, 3 PHASE, 23KW
-
Accessories:
-
1. 5pieces of saw blade; 2. 1tool box including basic tools
-
Paper-feeding part 1:
-
Each layer are delivery by belt, buffer cylinder control;
-
Paper-feeding part 2:
-
Base paper is adjustable by manual device;
-
Paper-feeding part 3:
-
Adjust the jumbo roll tension manually.
-
Paper-feeding part 4:
-
Machine will stop when the paper break.
-
Paper-feeding part 5:
-
Pneumatic jumbo roll loading
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
200-260m/ min
-
Max. workable width:
-
2900mm
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CND
-
Voltage:
-
380V, 60HZ, 3 PHASE, 23KW
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2024
-
Toilet Roll Cutting Length:
-
80-200mm
-
Machine Speed:
-
200-260m/min
-
Cutting Knife Size (L*W*T):
-
4620* 90* 1.0mm
-
Machine Power:
-
380V, 60HZ, 3 PHASE, 23KW
-
Accessories:
-
1. 5pieces of saw blade; 2. 1tool box including basic tools
-
Paper-feeding part 1:
-
Each layer are delivery by belt, buffer cylinder control;
-
Paper-feeding part 2:
-
Base paper is adjustable by manual device;
-
Paper-feeding part 3:
-
Adjust the jumbo roll tension manually.
-
Paper-feeding part 4:
-
Machine will stop when the paper break.
-
Paper-feeding part 5:
-
Pneumatic jumbo roll loading

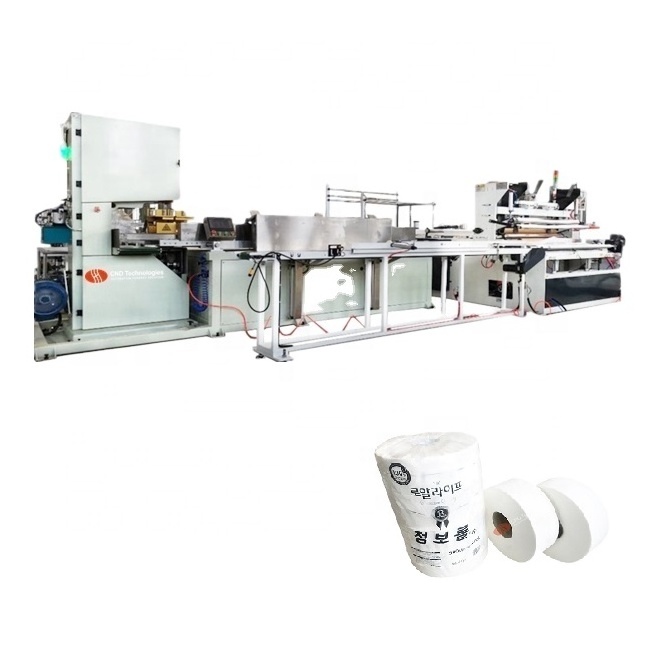

CND-FJ-2900 JRT toilet paper rewinding machine
Full automatic toilet roll rewinding machine+ CND-XPBS Industrial Roll Band Saw Cutter
|
Model
|
CND-FJ-2900 Full automatic toilet roll rewinding machine
|
|
|
|
NO.
|
Item
|
Technical Specification
|
|
|
1
|
Applicable base paper
|
1) Applicable base paper: 14-23g/㎡; 2 layers of wood pulp tissue
2) The applicable base paper width: 2900mm 3) Base paper diameter: Φ1500mm 4) Base paper core diameter: Φ76.2mm |
|
|
2
|
Embossing unit
|
1) Steel to rubber embossing unit, embossing clear (Patterns to be provided by the buyer and confirmed by both parties)
2) One set of adjustable Arc-shaped roller device to ensure paper smooth and unfolded |
|
|
3
|
Paper-feeding part
|
1) Each layer are delivery by belt, buffer cylinder control
2) Base paper is adjustable by manual device 3) Adjust the jumbo roll tension manually 4) Machine will stop when the paper break 5) Pneumatic jumbo roll loading |
|
|
4
|
Machine head
|
1) Speed: 200-260m/min (The speed depends on paper quality and proficiency of workers)
2) Core diameter: φ40-76.2mm; manually adjust 3) Finished product diameter: 80mm- 240mm 5) Storage tank to hold glue 6) Core rewinding, automatic core loading |
|
|
Model
|
CND-XPBS Industrial Roll Band Saw Cutter
|
|
|
|
NO.
|
Item
|
Technical Specification
|
|
|
1
|
Applicable paper and speed
|
1) Toilet roll length: ≤ 2900mm
2) Toilet roll outer diameter: Φ180-260mm 3) Toilet roll cutting length: 80-200mm 4) Speed: 20-30cuts/min, 1roll/ cut |
|
|
2
|
Cutting part
|
1) Cutting line: 1line
2) Cutting knife size (L*W*T): 4620mm* 90mm* 1.0mm |
|
|
3
|
Components brand
|
1. PLC: Delta, Taiwan
2. Frequency converter: Delta, Taiwan 3. Touch screen: Delta, Taiwan 4. Servo motor: Delta, Taiwan 5. Power: 380V, 60HZ, 3 PHASE, 23KW 6. Air consumption: ≤ 200L/ 8hours 7. Air supplier: ≤ 0.6Mpa (prepared by user) |
|
|
4
|
Accessories
|
1. 5pieces of saw blade
2. 1tool box including basic tools |
|
* When the equipment is shipped, we will provide you with some wearing parts for free to ensure the normal operation of the equipment.
* After the equipment leaves the factory, we will provide one year of after-sales service. During this period, due to the failure of the design of the equipment, we will replace the parts for you for free. If the electrical parts have quality problems, we will replace them for free within one year.
* After one year, we will continue to provide after-sales service. If wearing parts and other parts need to be replaced, we will only charge for the cost.
Tissue Packing Line
PJ V Fold Production Line
Robot
Use Robot Working
Kitchen Towel
Kitchen Towel Production Line
Tissue Production
CND-200MJ + CND FZ15 Tissue Production Line
Kitchen Towel Packing Line
Kitchen Towel 1Roll/2Roll Packing
Paper Production Line
Toilet paper + Jomboo Roll + Tissue Production Line
Tisseu Converting Machine
YD, YC, YH, PF, MJ, BJ, ULTRA
Automatic Jumboo Roll Rewinder
Ultra-SR600, Ultra-SR1200
Embossed Facial Foldes
YH-2L, YH-4L, YH-5L, YH-6L
Towel Folders
MJ-N-3L, MJ-N-4L, MJ-N-5L
Slitting Rewinder
PF-A, PF-E
Full Automatic Tissue Rewinder Line
Ultra-YD-E-3,Ultra-YD-E-4, Ultra-YD-E-5
CND company is located in Dalian, China. Dalian is one of the most important international port cities in China and the international logistics center in east Asia.
CND focuses on design, R&D, production of industrial equipment and automatic equipment, and is committed to creating and providing a solution platform for the most professional automatic equipment, production line integration. CND can provide a technological package of specialized solutions and service process, especially in industrial equipment, household paper equipment, packaging equipment, protective equipment, new energy field etc.
CND has a wide range of service outlets at home and abroad, and has offices and after-sales service centers in South Korea and other countries, is recognized widely by domestic and foreign customers over the years. CND hopes to cooperate with you to create a better future.
Q1
:
How long does it take to produce the equipment?
A : Generally, it takes 25-60 days for small equipment and documents; and 90-120 days for production lines or large
A : Generally, it takes 25-60 days for small equipment and documents; and 90-120 days for production lines or large
equipment.
Q2 : How to install the equipment after arrived? Will your company send us a technician?
Q2 : How to install the equipment after arrived? Will your company send us a technician?
A
: Yes, we will apply for a working visa for our technician while the equipment is shipped,then we will set out for the specific location of its country for equipment installation.
We will take videos of the equipment installation and operation, and offer you the equipment manual If our technician is unable to go under the exceptional circumstances (epidemic situation, visa rejection, isolation, etc.)
Q3
:
Can I put my Logo/ Brand on the machines and finish products?
A
:
Sure
, please just send us your artworks.
Q4
:
How can we know the quality of your machine?
A
: Customers can send material to us and then we use our machine to manufacture finished products which will be re-sent to customers.
Q5
:
Do you have after-sale service?
A
: Yes, we provide one year warranty and technical support.
Q6
:
What if we can't come for inspection after the equipment is finished under special circumstances (epidemic situation, visa rejection, isolation, etc.)?
A
: We will provide you with taking the complete commissioning video and pictures of the equipment.
