Description:

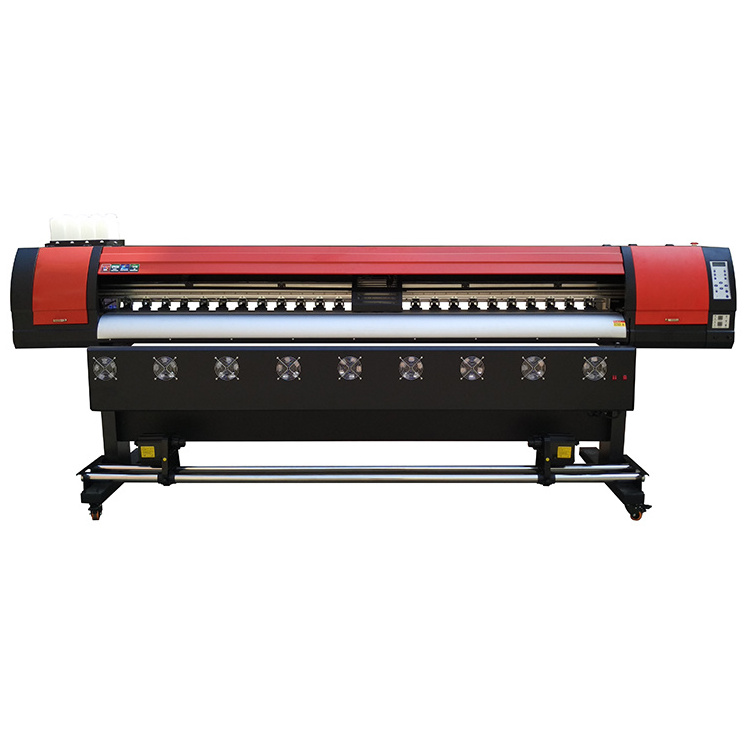

2.5M DS-980SJ 3.2m DS-1260SJ are high-precision Eco-solvent printers with a width of 2.5m, 3.2 meters, The print heads are using dual DX5 / DX7/ XP600 DX11 i3200 Heads, It can be used for indoor and outdoor advertising signs printing business.
|
DX5 XP600 Vinyl Plotter Eco Solvent Printer for Outdoor Printing Machine
|
|
|
|
|||
|
Model
|
DS-980SJ DS-1260SJ
|
|
|
|||
|
Printhead
|
2 Pieces DX5 DX7 XP600 DX11 for option
|
|
|
|||
|
Printing width
|
2.5M or 3.2m printing size
|
|
|
|||
|
Printing speed |
Speed Mode
|
3 Pass 46 sq.m/h
|
|
|||
|
|
Standard Mode
|
6 Pass 30 sq.m/h
|
|
|||
|
|
Precision mode
|
8 Pass 23 sq. m/h
|
|
|||
|
Ink
|
Type
|
Eco Solvent ink / Sublimation ink
|
|
|||
|
|
Color
|
4 colors C M Y K+C M Y K
|
|
|||
|
Ink supply
|
2 liters big capacity Automatic Continuous Ink Supply System
|
|
|
|||
|
Printing media |
Vinyl sticker(SAV), One way vision window film, PVC banner, PP paper, Wall Paper, Sublimation Paper etc.
|
|
|
|||
|
RIP software
|
Maintop / Photoprint software for option
|
|
|
|||
|
Data interface
|
USB 2.0
|
|
|
|||
|
Value-added Option |
Media feed & take-up system
|
Automatic media feeding and take-up system |
|
|||
|
|
Heating
|
Stage hearing system include back, front hearing and dry fan
|
|
|||
|
|
Carriage
|
2-5mm distance to the printing platform, adjustable
|
|
|||
|
|
Cleaning system
|
One button cleaning, easliy to start printing for operators
|
|
|||
|
|
Other
|
Inside LED Light strip
|
|
|||
Our this printer adpot the most advanced board system.
The best stable board designed for industrial printing with fastest printing speed, it is the best boards system than Hoson boards system.
On other hand, system board is more stable no destroy.
The printer comes with free 2 media feeding systems
1, For vinyl sticker(SAV) Roll feeding with 2 motors
2, For heavy Flex banner feeding system below
These dual feeding systems come with the printer, it is good print for both light and heavy medias.
Temperature adjustment panel: three heating parts controlled by a temperature meter. this buttons is to adjust heating system temperature according to working temperature,
With 2 pieces capping top, and whole capping up and down automatically, then can clean and suck all printhead nozzles
|
Packaging
|
|
|
|
Size
|
400cm*90cm*75cm
|
|
|
Weight
|
380KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
