Quick Details
-
Application:
-
container lift and travel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
power crane
-
Weight (KG):
-
400000 kg
-
Certification:
-
ISO CE CNAS
Quick Details
-
Rated Loading Capacity:
-
40t
-
Max. Lifting Height:
-
4m
-
Span:
-
3m
-
Application:
-
container lift and travel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
power crane
-
Weight (KG):
-
400000 kg
-
Certification:
-
ISO CE CNAS
Advantages
1.
O
ne person to drive
2. Low working noise and small vibration
3. L arge lifting capacity
4. Stable lifting and lowering
5. High loading and unloading efficiency
6. Steering and translation at any angle(110°)
7. Small turning radius
8. F our-wheel dr ive, f our-wheel steering
9. High quality and low price, convenient and practical
A pplication

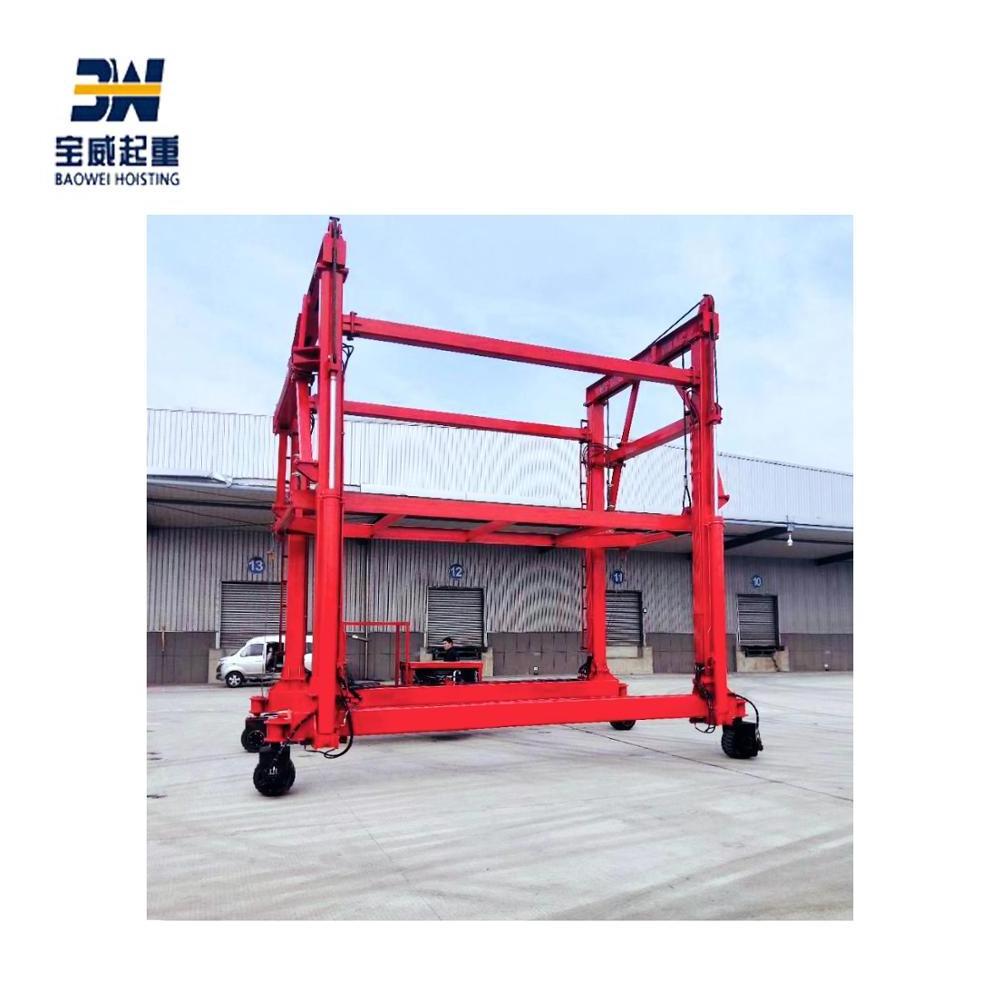

The conjoined container crane is a kind of container crane which is specially produced for
1. small and medium-sized container yard
2. loading and unloading containers in logistics companies
3. warehouses
4. docks
5. freight yards
(The crane is required to be used on flat, hardened and pothole free site.)
Technical parameters of conjoined container crane
1. What certificates can your factory provide?
We have CE and ISO certificates. If you need special certificates such as special CO(certificate of origin), please let me know in advance. We need to verify the manufacturing cost of the certificates.
2. What kind of documents will be delivered together with the crane?
In general,there will be instruction manual,product certificate,technical specifications table,factory inspection report,and crane general drawing,etc.
3. How to ensure that the purchased crane can reach my factory safely and put into production smoothly?
1) The most important thing for a company's long-term development is its reputation. Our factory has a history of 30 years, which is enough to witness our excellent reputation;
2) We have perfect production process control system, storage system, packaging system, QC system and pre shipment inspection system;
3) After the crane arrive at the site, we will send an engineer to guide the installation. After the installation, we will train the operators until they can operate the crane normally;
|
Cantilever crane(jib crane) Lift capacity: 225kg~20000kg Radius of gyration: 5m~12m Lifting height: 3m~12m Working class: A3~A5 Rotation angle: 270 ° ~ 360 ° Operation mode : Wireless remote
Application: short distance handling and intensive lifting
|
||
|
Gantry crane(MH-Box type) Lift capacity: 5ton~25ton Span : 12m~30m Lifting height: 6m~18m Working class: A3/A5 Operation mode : Wireless remote and cab
Application: loading, unloading and handling indoor and outdoor.
|
||
|
Gantry crane(MGB) Lift capacity: 5ton~50ton Span : 16m~35m Lifting height: 9m~18m Working class: A3/A5 Operation mode : Wireless remote and cab
Application: loading, unloading and handling in open places.
|
||
|
Single girder overhead crane(LDX) Lift capacity: 1ton~20ton Span : 7.5m~35m Lifting height: 6m~30m Working class: A5 Operation mode : Wireless remote
Application: indoor use
|
||
|
Double girder overhead crane(QD) Lift capacity: 20ton~160ton Span : 7.5m~35m Lifting height: 6m~30m Working class: A3~A7 Operation mode : Wireless remote and cab
Application: It can be used for lifting molten metal and metallurgical casting places
|
||
|
Container gantry crane(Split type) Lift capacity: 40ton L*W*H: 5055×2655×6320 (mm) Max. height of lifting beam : 4660mm Working class: A5 Operation mode : Wireless remote
Application: Handling and tipping of containers
|
||
|
|
Container gantry crane(one-piece) Lift capacity: 40ton L*W*H: 6782×5133×8767 (mm) Max. height of lifting beam : 5549mm Working class: A5 Operation mode : Wireless remote
Application: Handling and tipping of containers
|
