Quick Details
-
Brand Name:
-
heshi
-
Model Number:
-
HS-TL120
-
Application:
-
Fish Farm
-
Product name:
-
fish farming equipments
-
Color:
-
Yellow
-
Material:
-
PP+SS201
-
Application filed:
-
Fish Shrimp Farming Fish Pond
-
Fish Species:
-
Tilapia Fish
-
Shape:
-
Cube
-
Capacity:
-
120KG
-
Customize Available:
-
Capacity
-
Feature:
-
Durable
Quick Details
-
Specification:
-
120kg
-
Manufacturer:
-
Guangzhou Heshi Machinery Co.
-
Instruction for use:
-
Setting the time for automatic feeding
-
Brand Name:
-
heshi
-
Model Number:
-
HS-TL120
-
Application:
-
Fish Farm
-
Product name:
-
fish farming equipments
-
Color:
-
Yellow
-
Material:
-
PP+SS201
-
Application filed:
-
Fish Shrimp Farming Fish Pond
-
Fish Species:
-
Tilapia Fish
-
Shape:
-
Cube
-
Capacity:
-
120KG
-
Customize Available:
-
Capacity
-
Feature:
-
Durable
Product Description

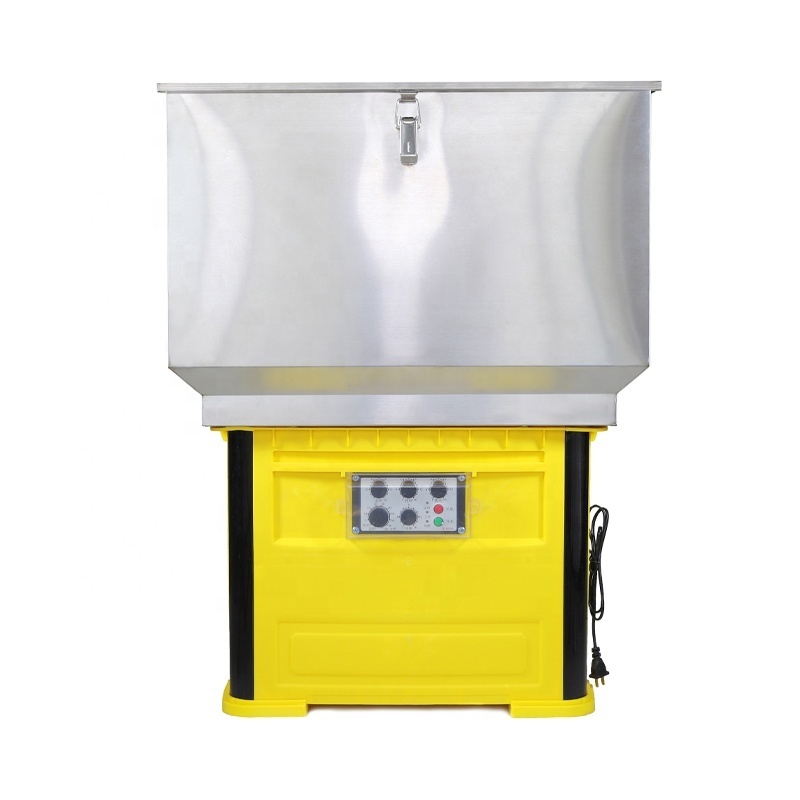

Fish pond feeder
Fish pond feeding machine is suitable for feeding all kinds of granular feed in aquaculture (powder is not suitable), including
the functions of automatic timing feeding, feeding fast and slow adjustable and no feed automatic shutdown function.
The differences with peers are as follows:
the functions of automatic timing feeding, feeding fast and slow adjustable and no feed automatic shutdown function.
The differences with peers are as follows:
①Split design and stainless steel box can be used for 10 years.
②Large-capacity, small package, lower transportation costs.
③ 160 ° curved surface discharge angle makes feeding area wider, and the crushing rate is lower.
If you want better-quality machines, choose HeShi will be right.
Product Paramenters
Part Name：
①Stainless steel box②Controller③Vibrator④Horn⑤Motor⑥Vibrating rubber⑦S-type discharging channel⑧160° wide angle of discharging⑨Rat-proof wire mesh
|
Model
|
3 packs
|
|
4 packs
|
|
||||
|
Voltage
|
220V/50HZ
|
|
|
|
||||
|
Overall power
|
150W
|
180W
|
150W
|
180W
|
||||
|
Motor rotate speed
|
1400r/min
|
2800r/min
|
1400r/min
|
2800r/min
|
||||
|
Feeding distance
|
2~15m
|
3~25m
|
2~15m
|
3~25m
|
||||
|
Feed box volume
|
120kg
|
120kg
|
160kg
|
160kg
|
||||
|
Feed Throwing Angle
|
>160 °
|
|
|
|
||||
|
Maximum feeding capacity
|
800kg/h
|
|
|
|
||||
|
Maximum feeding range
|
300 ㎡
|
872 ㎡
|
300 ㎡
|
872 ㎡
|
||||
|
Feed crushing rate
|
<0.5%
|
<2%
|
<0.5%
|
<2%
|
||||
|
Feeding distance will be due to the feed material size and height of the feed table, specific to the actual situation shall prevail, the parameters are measured with the No. 4 material, the height of the feed table 1 meter!
|
|
|
|
|
||||
|
Applicable water surface
|
3333㎡
|
6666㎡
|
3333㎡
|
6666㎡
|
||||
|
Machine Weight
|
26kg
|
26kg
|
30kg
|
30kg
|
||||
|
Main unit size
|
55*55*45cm
|
|
|
|
||||
|
Box size
|
67*67*48cm
|
|
70*70*55cm
|
|
||||
|
Package Size
|
72*72*52cm
|
|
76*76**60cm
|
|
||||
|
Control method
|
Semi-automatic
|
fully automatic
|
Semi-automatic
|
fully automatic
|
||||
|
If you need other models, please write to customer service, product specifications, only a few commonly sold on the shelves, the capacity of up to 6 packages.
|
|
|
|
|
||||
Product photos
Stainless steel feed box
New PP plastic main body shell
Stainless steel sensor and funnel
Stainless steel rainproof baffle
Bin side handles
Bins locks
The three core components
Controller
Control the work of each component, real-time display of the working state, the speed of the feeds, feeding time are adjusted here.
Motor
Control the feeding, the motor drives the dumping disk to rotate, so as to throw the feed out.
Vibrator
Control the feeding, the vibration size of the vibrator determines the feeding speed.
Product Details
01 Stainless steel box
Stainless steel box body one-piece molding design, outdoor use to effectively avoid rain into the 10 years not bad, more cost-effective!
02 Stainless Steel Funnel
Stainless steel funnel with a load capacity of 500kg without deformation, clean and free of residual feeds.
03 Stainless steel sensor
Stainless steel sensor can eliminate the feed pressure off. And it can shutdown automatically in 3 minutes if there is no feeds.
04 New Vibrator
Vibrating steel plate is made of plastic steel, to prevent the steel plate from breaking due to long time use.
