- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Perfect Laser
-
Year:
-
2023
-
Weight (KG):
-
800
-
Product Name:
-
rule bending machine
-
Feeding Accuracy:
-
±0.3mm
-
Maximum Bending Angle:
-
110°
-
Rail Screw:
-
Taiwan TPI
-
Blade Size:
-
Thickness: 0.71mm / 1.07mm; Height: 23.8mm.
-
Bridge Height:
-
15mm/ 18mm
-
Air Compressor Pressure:
-
0.5-0.8mpa
-
Support File Format:
-
DXF
-
Total Power:
-
1.5KW
-
Certificate:
-
CE
Quick Details
-
Place of Origin:
-
Hubei, China
-
Video outgoing-inspection:
-
Provided CE Cerport
-
Marketing Type:
-
Latest Product
-
Brand Name:
-
Perfect Laser
-
Year:
-
2023
-
Weight (KG):
-
800
-
Product Name:
-
rule bending machine
-
Feeding Accuracy:
-
±0.3mm
-
Maximum Bending Angle:
-
110°
-
Rail Screw:
-
Taiwan TPI
-
Blade Size:
-
Thickness: 0.71mm / 1.07mm; Height: 23.8mm.
-
Bridge Height:
-
15mm/ 18mm
-
Air Compressor Pressure:
-
0.5-0.8mpa
-
Support File Format:
-
DXF
-
Total Power:
-
1.5KW
-
Certificate:
-
CE

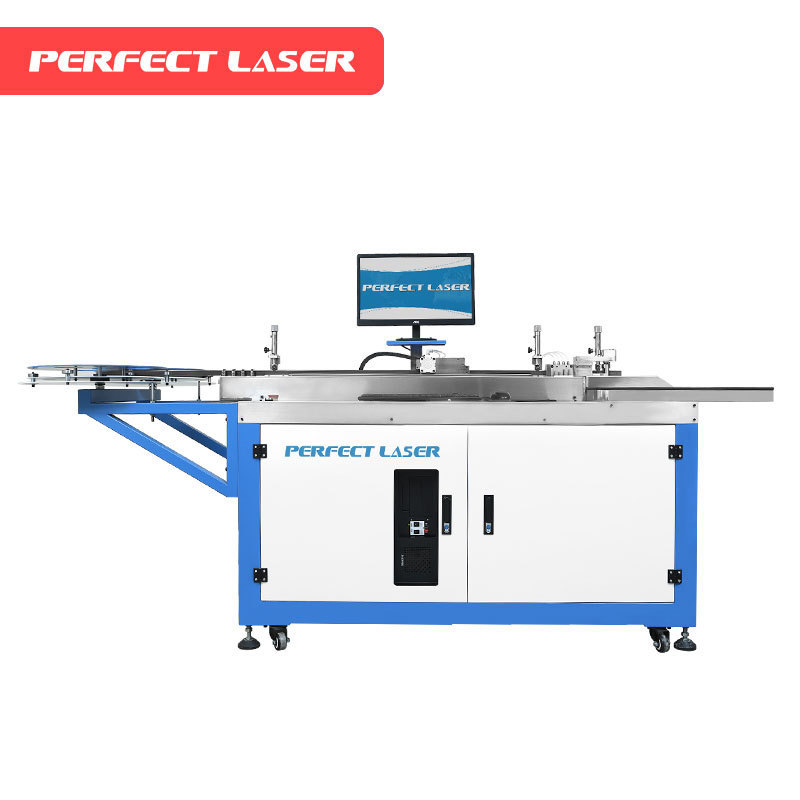

Perfect Laser Sheet Metal Steel Rule Die Auto Blades Bending And Cutting Machine For Making Color Packaging Box Mold
(Model:PEC-100)
Contact:Crystal Wechat/Whatsapp: +8613659893728 Email : crystal(@)perfectlaser.net
Product Description
The PEC-100
rule bending machine
for blades can work with die board cutting machine, for bending the blade embedded in the die board.This
rule bending machine
mainly consists of a feeding shaft, a bending shaft and a cutting shaft.The feeding shaft feeds the blade forward and backward where the bending shaft then bends the blade clockwise or counterclockwise, lastly the cutting shaft punches out the blade in shape of bridge, straight cut, eagle mouth or blade cut. This whole process is controlled by a computer.The launching of
rule bending machine
has made significant contributions to the printing, packaging, food, cartons, stickers and many other industries.
Samples
1.Applicable materials:
This automatic bending machine for blades is widely used in thin sheet metal materials required for the production of molds, such as: color boxes, cigarette cases, electronic products, button panels, and biscuits.
2.Applicable industries:
This auto blade bending machine is widely used in packaging, laser die, blister die, lighting die, manual die and many other industries.
This automatic bending machine for blades is widely used in thin sheet metal materials required for the production of molds, such as: color boxes, cigarette cases, electronic products, button panels, and biscuits.
2.Applicable industries:
This auto blade bending machine is widely used in packaging, laser die, blister die, lighting die, manual die and many other industries.
Product Features
1. Unique professional design helps achieve powerful bending editing functions. A variety of operations such as bending, bridge and eagle mouth can be finished on only one
automatic bending machine
for blades, which greatly reduces labor costs and improves working efficiency.
2. The auto blade bending machine adopts one-time cutting after bending. The scissor is made of HSS, which improves the cutting speed and accuracy. Precision eagle mouth cutting function can achieve seamless operation.
3. The steelrule auto bender won’t curl the edge of the blade for its processing method of upper-punching and lower-cutting,which overcomes the shortcomings of traditional only one-knife cutting that cannot be applied to the sticker industry due to the edge curling.
4. This automatic bending machine for blades is equipped with two blade plates, which makes it easier to place two different specifications of blades.
5. This auto blade bending machine adopts Japan’s high-performance servo motor and imported mold-steel bending mold with fast speed and high precision, which is suitable for making complex graphics, such as: meticulous box mold, cartoon mold and doll mold.
2. The auto blade bending machine adopts one-time cutting after bending. The scissor is made of HSS, which improves the cutting speed and accuracy. Precision eagle mouth cutting function can achieve seamless operation.
3. The steelrule auto bender won’t curl the edge of the blade for its processing method of upper-punching and lower-cutting,which overcomes the shortcomings of traditional only one-knife cutting that cannot be applied to the sticker industry due to the edge curling.
4. This automatic bending machine for blades is equipped with two blade plates, which makes it easier to place two different specifications of blades.
5. This auto blade bending machine adopts Japan’s high-performance servo motor and imported mold-steel bending mold with fast speed and high precision, which is suitable for making complex graphics, such as: meticulous box mold, cartoon mold and doll mold.
Machine Details
Specification
|
Device Name
|
Auto Blade Bending Machine
|
|
Model
|
PEC-100
|
|
Feeding Accuracy
|
±0.3mm
|
|
Maximum Bending Angle
|
110°
|
|
Motor
|
Feeding, bending:Japan imported servo motor, 400W x 2
Bridge: 750W x 1 |
|
Rail Screw
|
Taiwan TPI
|
|
Blade Size
|
Thickness: 0.71mm / 1.07mm (0.45mm / 0.53mm optional);
Height: 23.8mm (conventional), can up to 30mm; |
|
Bridge Height
|
15mm / 18mm
|
|
Air Compressor Pressure
|
0.5-0.8mpa
|
|
Tracheal Diameter
|
10mm
|
|
Optional Device
|
Feeding table cover
|
|
Support File Format
|
DXF
|
|
Total Power
|
1.5 KW
|
|
Voltage
|
AC/ 220V / single phase
|
|
Dimension
|
2800 x 730 x 1310mm
|
