Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
VDE, CEI-021, CE, IEC, TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JApower
-
Model Number:
-
4-30KW Hybrid 3 Phase System
-
Output Voltage (V):
-
380V/400V/415V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
24 Hours
-
Output Type:
-
Three Phase Europe Standard
-
Power Range:
-
4KW~30KW
-
Compatible Battery:
-
High Voltage Lithium Battery
-
LifeSpan:
-
25years
-
Inverter:
-
Growatt Hybrid Inverter
-
Battery Voltage:
-
>144v 100ah
-
Panels Type:
-
All Black Panel
-
Inverter Mode:
-
Growatt SPH 4000~ 10000TL3-BH UP
-
Battery Capacity:
-
>14.4KWH
-
Solar mounting System:
-
Included
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
VDE, CEI-021, CE, IEC, TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JApower
-
Model Number:
-
4-30KW Hybrid 3 Phase System
-
Output Voltage (V):
-
380V/400V/415V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
24 Hours
-
Output Type:
-
Three Phase Europe Standard
-
Power Range:
-
4KW~30KW
-
Compatible Battery:
-
High Voltage Lithium Battery
-
LifeSpan:
-
25years
-
Inverter:
-
Growatt Hybrid Inverter
-
Battery Voltage:
-
>144v 100ah
-
Panels Type:
-
All Black Panel
-
Inverter Mode:
-
Growatt SPH 4000~ 10000TL3-BH UP
-
Battery Capacity:
-
>14.4KWH
-
Solar mounting System:
-
Included
Products Details
Advantages of Hybrid Solar System
Cost-effective:
By combining solar power with an energy storage system and grid power, a hybrid solar system can provide reliable power at a lower cost than traditional electricity sources. With a lifespan of up to 25-30 years, you can recover the initial investment in just a few years.
Low Maintenance:
Hybrid solar systems require low-cost maintenance. With 25~30 years lifespan, you just need to replace the battery every 10 years.
Reliable Backup Power:
Hybrid solar systems can serve as a backup power source during emergencies, giving you peace of mind and ensuring that essential appliances and devices remain functional.
Multifunctional Power Supply:
Hybrid solar system has different of modes that power home appliances in 7/24. Such as photovoltaic, batteries, grid, generator, etc.
Environmentally friendly:
Hybrid solar systems use renewable energy, reducing your carbon footprint and contributing to a more sustainable future. By reducing reliance on fossil fuels, hybrid solar systems help to combat climate change and improve air quality.
|

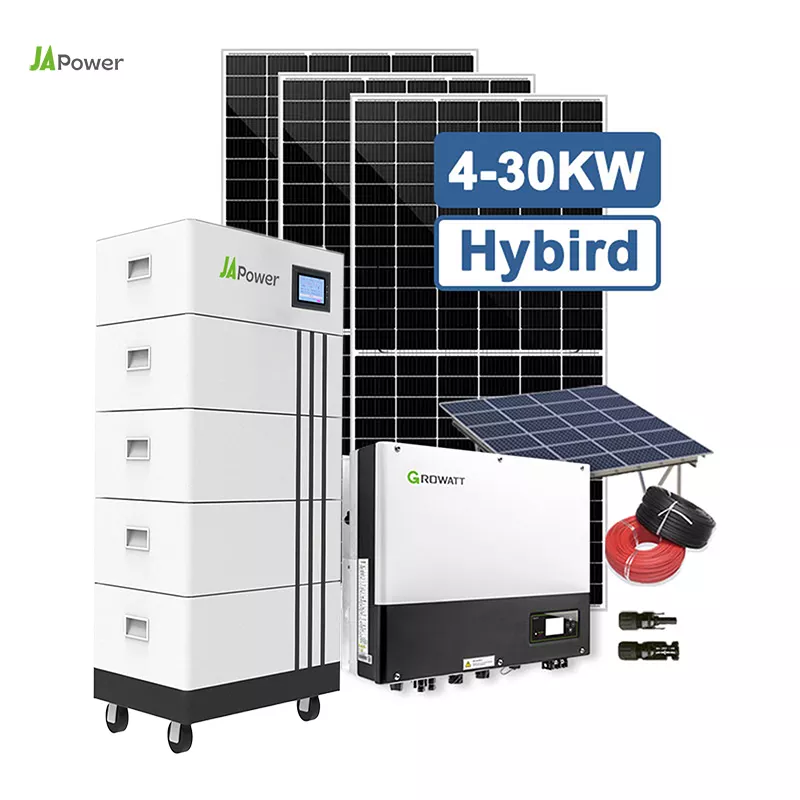

5KW Hybrid Solar Energy System
|
|
|
||
|
Solar Panel
|
Japower Mono 425W Full Black Panels
|
12 pcs
|
||
|
Solar Inverter
|
Growatt SPH 10000TL3 BH-UP Hybrid Inverter
|
1 Set
|
||
|
Solar Mounting System
|
Roof Mounting/Ground Mounting
|
1 Set
|
||
|
HV Battery System
|
JApower HVM 4.8KWH Battery Module
|
3 pcs
|
||
|
|
Battery Control Module+ Cables+ Battery Base
|
1 Set
|
||
|
Connector
|
MC4 Waterproof
|
5 pairs
|
||
|
Wire
|
DC Wires
|
100 meters
|
||
|
PV Combiner Box
|
Optional
|
|
||
|
DC Isolator
|
Optional
|
|
||
|
(any need, please feel free to contact us, we kindly customzie for you as your requrest）
|
|
|
||
|
10KW Hybrid Solar Energy System
|
|
|
||
|
Solar Panel
|
Japower Mono 425W Full Black Panels
|
24 pcs
|
||
|
Solar Inverter
|
Growatt SPH 10000TL3 BH-UP Hybrid Inverter
|
1 Set
|
||
|
Solar Mounting System
|
Roof Mounting/Ground Mounting
|
1 Set
|
||
|
HV Battery System
|
JApower HVM 4.8KWH Battery Module
|
3 pcs
|
||
|
|
Battery Control Module+ Cables+ Battery Base
|
1 Set
|
||
|
Connector
|
MC4 Waterproof
|
14 pairs
|
||
|
Wire
|
DC Wires
|
200 meters
|
||
|
PV Combiner Box
|
Optional
|
|
||
|
DC Isolator
|
Optional
|
|
||
|
(any need, please feel free to contact us, we kindly customzie for you as your requrest）
|
|
|
||
|
15KW Hybrid Solar Energy System
|
|
|
||
|
Solar Panel
|
Japower Mono 425W Full Black Panels
|
36 pcs
|
||
|
Solar Inverter
|
Growatt SPH 10000TL3 BH-UP Hybrid Inverter
|
1 Set
|
||
|
Solar Mounting System
|
Roof Mounting/Ground Mounting
|
1 Set
|
||
|
HV Battery System
|
JApower HVM 4.8KWH Battery Module
|
3 pcs
|
||
|
|
Battery Control Module+ Cables+ Battery Base
|
1 Set
|
||
|
Connector
|
MC4 Waterproof
|
12 pairs
|
||
|
Wire
|
DC Wires
|
300 meters
|
||
|
PV Combiner Box
|
Optional
|
|
||
|
DC Isolator
|
Optional
|
|
||
|
(any need, please feel free to contact us, we kindly customzie for you as your requrest）
|
|
|
||
Products Work Modes
Growatt Hybrid Inverter
> Brand:Growatt
> Output Power: 10KW
> Type: 3 Phase 380V/400V Hybrid
> Europe Efficiency: 98%
> PV Input Max Voltage:1000V
> Output Power: 10KW
> Type: 3 Phase 380V/400V Hybrid
> Europe Efficiency: 98%
> PV Input Max Voltage:1000V
Solar Panels
> Brand: Japower
> Optional Mono Silver/Black Panels
> 25-year Linear Power Output Warranty
> Excellent mechanical load resistance
> IP68 Pretection Degree
> Optional Mono Silver/Black Panels
> 25-year Linear Power Output Warranty
> Excellent mechanical load resistance
> IP68 Pretection Degree
High Voltage Battery
> Brand: Japower
> Capacity(kWh): 14.4KWH
> Nominal Voltage(Vdc): 144V
> Depth of Discharge: 90%
> Warranty: 5 Years
Roof Mounting System
> Flexible rooftop mount system
> Significant savings
> Significant savings
> Compatible with most modules
> Static reliability
> Maximum service life
> Static reliability
> Maximum service life
Ground Mounting System
> Easy and Quick Installation
> Flexibility and Stability
> High Precision Construction > Excellent Environmental Protection
> Superb Quality
> Flexibility and Stability
> High Precision Construction > Excellent Environmental Protection
> Superb Quality
Accessaries
> PV Cables: 4mm²/6
mm²
> Connecter: MC4
> Combiner Box: PV/DC/AC Combiner
> Connecter: MC4
> Combiner Box: PV/DC/AC Combiner
> Tool: PV Installation Kit
> Wooden Box: For All Products
> Wooden Box: For All Products
Products Application
Project Name: 8KW 3 Phase Hybrid System
Located: Belgium
Inverter: Growatt SPH 8000TL3-BH UP
Battery: 12.5KWH Growatt ARK HV Batter
Inverter: Growatt SPH 8000TL3-BH UP
Battery: 12.5KWH Growatt ARK HV Batter
Project Name: 30KW 3 Phase Hybrid System
Located: Belgium
Inverter: 3 PCS Growatt SPH 10000TL3-BH UP
Battery: 30KWH HV Lifepo4 Battery
Battery: 30KWH HV Lifepo4 Battery
Project Name: 20KWH 3 Phase Hybrid System
Located: Sweden
Inverter: 2PCS Growatt SPH 10000TL3-BH UP
Battery: 40.96KWH Growatt ARK HV Battery
Battery: 40.96KWH Growatt ARK HV Battery
Project Name: 45KW 3 Phase Hybrid & On-grid System
Located: Germany
Inverter: MID 25KTL3-X & 2PCS SPH 10000TL3-BH UP
Battery: 20.48KWH Growatt ARK HV Battery
Battery: 20.48KWH Growatt ARK HV Battery
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,00 USD, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000USD
|
|
||
|
|
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
