Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KIET
-
Model Number:
-
KET-RCH-306
-
Min Height:
-
55mm
-
Color:
-
Customerized
-
Product name:
-
30 Ton Single Acting Hollow Plunger Hydraulic Lift Cylinder
-
Material:
-
Alloy Steel
-
Packing:
-
Plywood Case
-
Capacity:
-
13-100 Ton
-
Power:
-
Hydraulic
-
Stroke:
-
8-155mm
-
Weight:
-
1.5-63kg
-
Certification:
-
CE, CE ISO9001:2015
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Type:
-
Hydraulic Jack
-
Max Height:
-
330mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KIET
-
Model Number:
-
KET-RCH-306
-
Min Height:
-
55mm
-
Color:
-
Customerized
-
Product name:
-
30 Ton Single Acting Hollow Plunger Hydraulic Lift Cylinder
-
Material:
-
Alloy Steel
-
Packing:
-
Plywood Case
-
Capacity:
-
13-100 Ton
-
Power:
-
Hydraulic
-
Stroke:
-
8-155mm
-
Weight:
-
1.5-63kg
-
Certification:
-
CE, CE ISO9001:2015

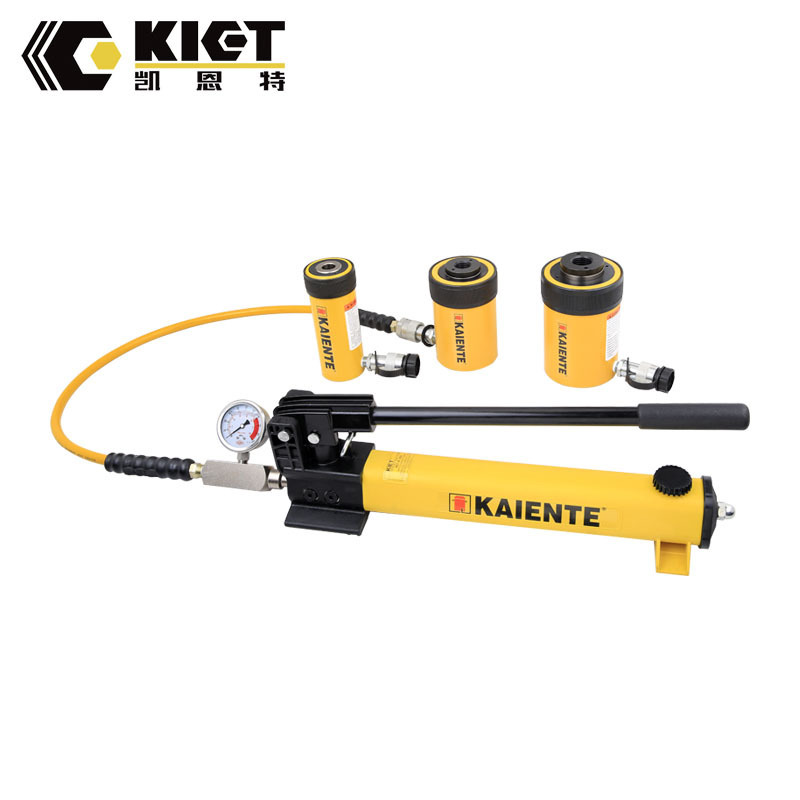

30 Ton Single Acting Hollow Plunger Hydraulic Lift Cylinder
Features:
Single-acting, spring return.
Baked enamel finish for increased corrosion resistance. The chrome-plated surface extends the service life of the hollow plunger.
Hollow plunger design allows for both pull and push forces.
Collar threads for easy fixturing.
Built-in scraper seal reduces contamination, extending cylinder life.
3/8'' - 18NPT coupler and dust cap included on all models.
Product Parameter:
| Model | Capacity |
Max. Working Pressure |
Closed
Height
|
Stroke |
Effective Area |
Central Hole
Diameter
|
Oil Capacity |
Outside
Diameter
|
Plunger
Diameter
|
Weight |
| (T) | (MPa) | (mm) | (mm) | (cm²) | (mm) | (cm3) | (mm) | (mm) | (kg) | |
| KET-RCH-120 | 13 | 70 | 55 | 8 | 17.9 | 19.6 | 14 | 69 | 35.1 | 1.5 |
| KET-RCH-121 | 120 | 42 | 75 | 2.8 | ||||||
| KET-RCH-123 | 184 | 76 | 136 | 4.4 | ||||||
| KET-RCH-202 | 20 | 70 | 162 | 49 | 30.7 | 26.9 | 150 | 98 | 54.1 | 7.7 |
| KET-RCH-206 | 306 | 155 | 476 | 14.1 | ||||||
| KET-RCH-302 | 30 | 70 | 178 | 64 | 46.6 | 33.3 | 298 | 114 | 63.5 | 10.9 |
| KET-RCH-306 | 330 | 155 | 722 | 21.8 | ||||||
| KET-RCH-603 | 60 | 70 | 247 | 76 | 82.3 | 53.8 | 626 | 159 | 91.9 | 28.1 |
| KET-RCH-606 | 323 | 153 | 1259 | 35.4 | ||||||
| KET-RCH-1003 | 100 | 70 | 254 | 76 | 133 | 79 | 1011 | 212 | 127 | 63 |
