Quick Details
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC220
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Product Name:
-
Explosion Proof fluorescent Light
-
Application:
-
Chemical Industry
-
Power:
-
18/20/40/60W
-
Item Type:
-
Outdoor Industrial
-
Material:
-
Die Cast Aluminum+PC
-
Ex-proof Grade:
-
DembIICT5
-
Driver:
-
Done
-
IP Grade:
-
IP65/IP66
-
CCT:
-
3000K/ 4000K / 5000K / 6000K /6500K
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100, 120-130
-
Warranty(Year):
-
1-Year
-
Working Temperature(℃):
-
-20 - 50
-
Light Source:
-
LED
-
Input Voltage(V):
-
AC220
-
Product Weight（kg）:
-
8
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2000
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Product Name:
-
Explosion Proof fluorescent Light
-
Application:
-
Chemical Industry
-
Power:
-
18/20/40/60W
-
Item Type:
-
Outdoor Industrial
-
Material:
-
Die Cast Aluminum+PC
-
Ex-proof Grade:
-
DembIICT5
-
Driver:
-
Done
-
IP Grade:
-
IP65/IP66
-
CCT:
-
3000K/ 4000K / 5000K / 6000K /6500K

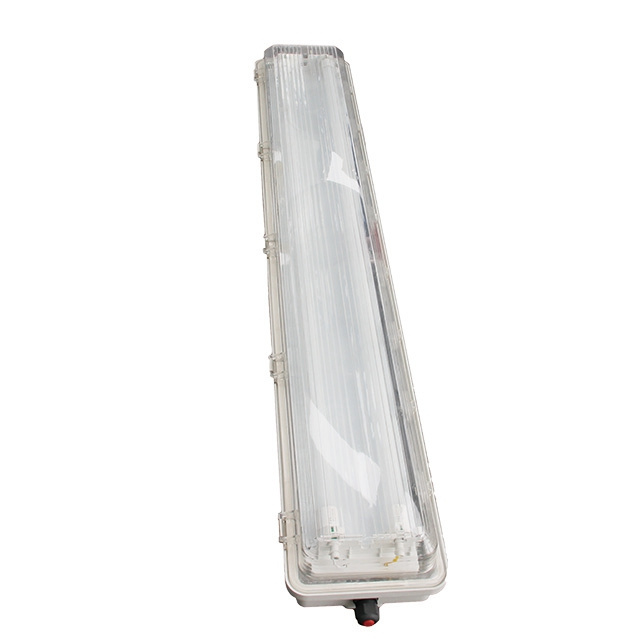

Explosion proof fluorescent lights 8w-80w
Products Description
Features
Isolated LED compartment reduces temperature within driver housing
beam angle for 120°
instant on crisp white light output High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
|
Electrical Data
|
|
|
|
Ex Marking
|
II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6
|
|
|
Classification
|
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
|
|
|
IP Degree
|
IP65
|
|
|
Corrosion Resistant
|
WF2
|
|
|
Input Voltage
|
AC85-265v
|
|
|
Wattage
|
8w-80w
|
|
|
Length
|
600mm/1200mm
|
|
|
Conduit Entries
|
G 3/4"
|
|
|
Mounting Styles
|
Bracket, ceiling
|
|
|
Net Weight
|
6kg/8kg
|
|
Details Images
Application
Applications
1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
