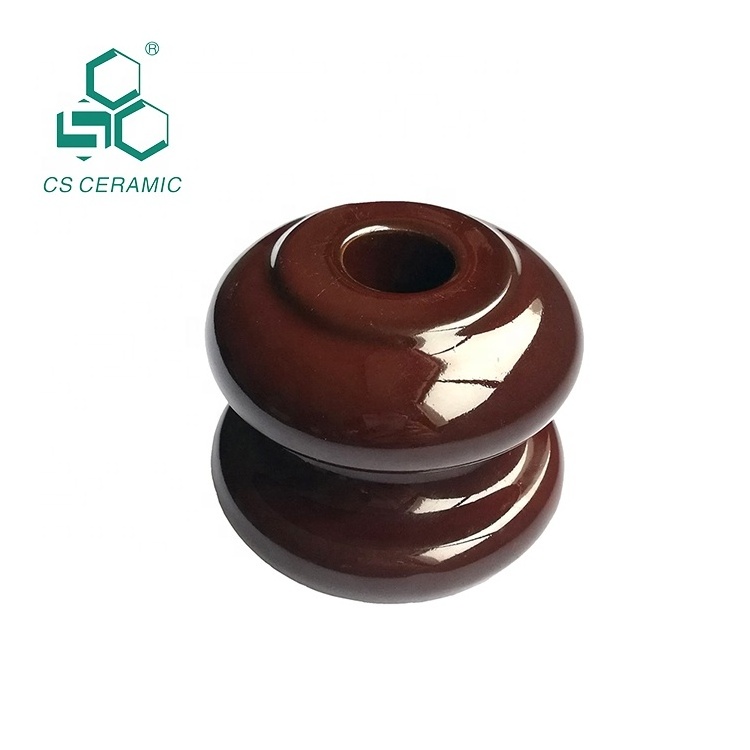

low price electronic insulation porcelain shackle insulator

low price electronic insulation porcelain shackle insulator

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power frequency flashover voltage(wet):: 12-15 kw

Mechanical failing load:: 12-13 KN

Quick Details

Place of Origin:: Jiangxi, China

Weight:: 0.5 kg

Power frequency flashover voltage(dry):: 25 kw

Power frequency flashover voltage(wet):: 12-15 kw

Mechanical failing load:: 12-13 KN

low price electronic insulation porcelain shackle insulator

Product Description

Brief introduction:

Producing many kinds of Line Insulators( SHACKLE INSULATOR ), Substation & Power System Insulators. With features of good insulation performance, excellent weatherability, high heat resistance, easy to be installed and etc. SHACKLE INSULATOR included ED-1,ED-2,ED-3,ED-4 and etc.

MAIN DIMENSIONS AND STANDARD PARTICULARS:

Class BS	Main Dimensions(mm)							Mechanical Failing Load(kn)	Minimum Flashover Voltage			Weight(kg)
	Main Dimensions(mm)								Power-frequency
	H	h	D	d	d1	d2	R		Dry(kv)	Wet(kv)
	H	h	D	d	d1	d2	R		Dry(kv)	Upright	Level
ED-2(C)	80	-	80	50	22	-	6	13	25	15		0.50
ED-2(B)	76	-	89	48	21	-	10	12	25	12		0.50
ED-2(B)1	76	-	89	48	17.5	-	10	12	25	12		0.50
1617	65	-	76	46	17.6	-	9	9	20	9		0.40
1618-1	75	-	89	55	17	-	12.5	10	20	9		-
1618-2	75	-	89	55	17	-	12.5	13	25	12		-
53-1	54	27	57	45	18	22	11	907	20	8	10	0.22
53-2	76	38	79	45	18	24	18	1360	25	12	15	0.55
53-3	81	40.5	76	45	18	24	11	1814	25	12	15	0.60
53-4	76	38	105	73	18	24	16	2041	25	12	15	1.15
105	52.5	102	73	18	24	11	2722	35	18	25	25	1.20

Main Product

FAQ

1. What standards do you have?
Our products meet the stand ards, such as ANSI , BS , AMS, DIN, IEO etc.
The third party testing is all available for us.

2. How can you control your quality?

For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.

3. Does your company accept customization?
We accept OEM service.

4. What is your lead time?
It usually needs about 15- 20 days after receiving the PO.

5. What's the payment term that u can accept?

T/T or L/C

6. Are u the factory or trading company?

We are factory who was founded on 2002's with 61.58 million(Chinese Yuan)registered capital.

7. Can we visit your company?

Yes, for sure, you are welcome to visit our company.

8. Do you supply samples?

Yes, we would like to send the samples for your to check the quality.

Please feel free to contact us if you have any questions if you are interested.

ATTN: MS. LISA PAN
