- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V or 380v or 415v
-
Power:
-
8kw
-
Dimension(L*W*H):
-
3m or 4m or as customer like
-
Wall Panel:
-
2mm thick cold plates coated with powder coating or PP board
-
Installation:
-
Detailed 3D drawings will be supplied to make installations easier
-
Product name:
-
Powder Spraying Room
-
Control System:
-
PLC+Touch Screen Automatic
-
Spraying Guns:
-
Automatic Spraying Guns
-
Spraying method:
-
Robot Automatic Painting Line
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Italy, Saudi Arabia, Russia, Australia, UAE, South Africa, Kazakhstan
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
open type powder coating booth
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CLEAR
-
Voltage:
-
220V or 380v or 415v
-
Power:
-
8kw
-
Dimension(L*W*H):
-
3m or 4m or as customer like
-
Wall Panel:
-
2mm thick cold plates coated with powder coating or PP board
-
Installation:
-
Detailed 3D drawings will be supplied to make installations easier
-
Product name:
-
Powder Spraying Room
-
Control System:
-
PLC+Touch Screen Automatic
-
Spraying Guns:
-
Automatic Spraying Guns
-
Spraying method:
-
Robot Automatic Painting Line
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Italy, Saudi Arabia, Russia, Australia, UAE, South Africa, Kazakhstan
-
Certification:
-
CE
Specification of CE powder coating booth CL-P100 :
|
Outside size |
2050*2050*2400mm ( W X D XH) |
|
I nside s ize |
2000*1150*1500mm ( W X D XH) |
|
Wall panel |
2 mm thick painted cold rolled steel sheet |
|
Open type |
Open face type, with out door; people paint stand outside; With overhead rail to hold the Idler conveyor rolls |
|
Air Circulation System |
1 set of 2.2 kw 4-72-5A outlay motor fan . Each fan air flow capacity: 3000 m³ /h Pressure is 80 0Pa , speed is 1450r/min |
|
Powder recycling system
|
Filter system is filter cartridge box ,4pcs on side, each filter size: 324* 6 00mm , with 4 pcs pulse shaking device . Air compressor pressure:0. 6 -0. 8 MPa,valve pressure:0. 6 Mpa . Finial powder recycling rate is 94% |
|
Lighting System |
Ceiling Light: 1 unit 18w*2pcs LED lights |
|
Control system |
E lectric control box, Power On/Off Control , Fan controls, Lighting Controls , Pulse controls, E mergency stop The electric components use CHNT brand |
|
Total power |
2.5kw |

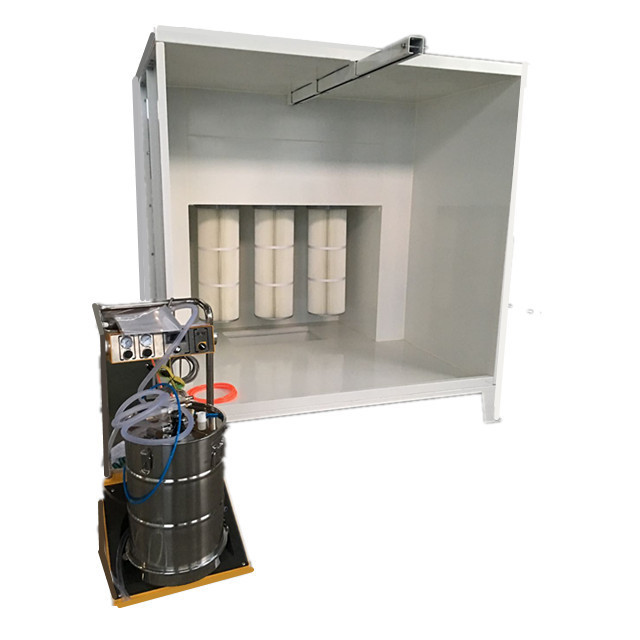

Products real photos:
Spare parts:
Photos during production:
Finish products:
