Quick Details
-
Model Number:
-
LD02-600
-
Car Make:
-
Electric car
-
Warranty:
-
12 Months
-
Product name::
-
Electric transaxle for electric trolley
-
Model Number::
-
LD02
-
Mounting distance::
-
355MM
-
Rated Voltage::
-
24V/36V/48V for choosing
-
Rated power::
-
600W
-
Free output RPM::
-
140RPM
-
Gear ratio::
-
1:19.75
-
PACKING::
-
Paper box with foam
-
Aplication::
-
Mobility scooter/sweeper/kid cart/shopping cart and so on
-
Warranty::
-
12 Months
Quick Details
-
OE NO.:
-
standard
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UCOM
-
Model Number:
-
LD02-600
-
Car Make:
-
Electric car
-
Warranty:
-
12 Months
-
Product name::
-
Electric transaxle for electric trolley
-
Model Number::
-
LD02
-
Mounting distance::
-
355MM
-
Rated Voltage::
-
24V/36V/48V for choosing
-
Rated power::
-
600W
-
Free output RPM::
-
140RPM
-
Gear ratio::
-
1:19.75
-
PACKING::
-
Paper box with foam
-
Aplication::
-
Mobility scooter/sweeper/kid cart/shopping cart and so on
-
Warranty::
-
12 Months
Product Parameters
|
Model No.
|
LD02-355-300
|
LD02-355-350
|
LD02-355-500-01
|
LD02-355-500-02
|
|
Rated voltage
|
24V/36V/48V
|
24V/36V/48V
|
24V/36V/48V
|
24V/36V/48V
|
|
Rated power
|
300W
|
350W
|
500W
|
600W
|
|
Gear ratio
|
1:19.75
|
1:19.75
|
1:19.75
|
1:19.75
|
|
Free output RPM
|
120RPM
|
140RPM
|
200RPM
|
230RPM
|
|
Max output torque
|
27Nm
|
27Nm
|
28Nm
|
25Nm
|
|
Motor efficiency
|
70%
|
72%
|
77%
|
77%
|
|
Motor diameter
|
φ87mm
|
φ87mm
|
φ87mm
|
φ87mm
|
|
Brake torque
|
4Nm
|
4Nm
|
4Nm
|
6Nm
|
|
Noise(db)(A)
|
≤65
|
≤65
|
≤65
|
≤65
|
Product Overview

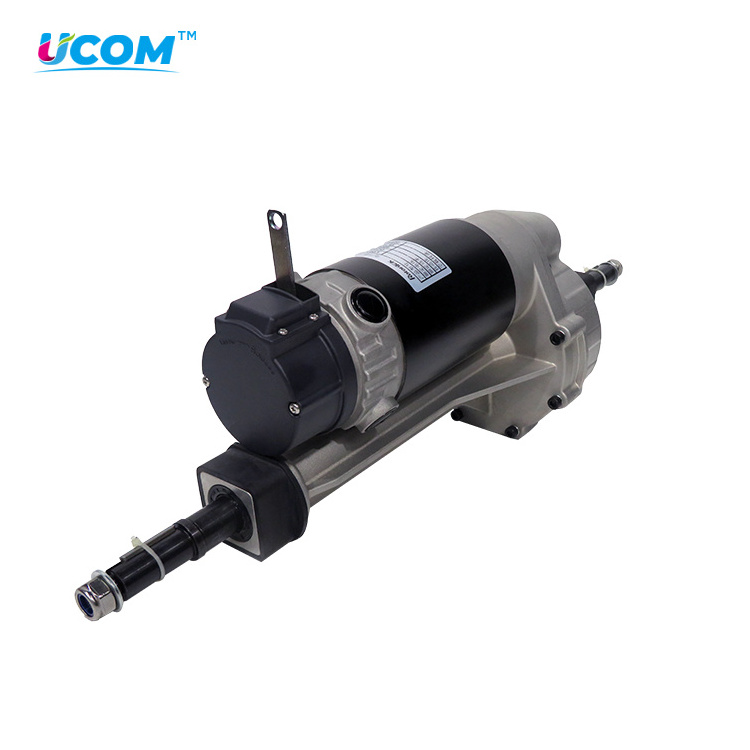

Ucom Small Mini Trycicle Differential 300w Electric Car Rear Axle with 24V DC Motor for Go Kart
1
. Complete driving system including gear differential,electric DC motor and electric magetic brake.
2. 24V DC motot,operates in both directions,long mounting distance.
3. Aluminum Alloy Housing with high quality.
