Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
HF
-
Model Number:
-
DC-ST005
-
Product name:
-
Platform Serrated Steel Grating
-
Color:
-
Silver
-
Material:
-
Steel, Carbon Steel, Stainless Steel, Q235
-
Technique:
-
Welded
-
Bearing bar pitch:
-
20mm-60mm
-
Cross bar pitch:
-
30-100mm
-
Bearing bar thickness:
-
3mm-8mm
-
Length:
-
As required
-
Width:
-
As required
-
Feature:
-
Skidproof
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
HF
-
Model Number:
-
DC-ST005
-
Product name:
-
Platform Serrated Steel Grating
-
Color:
-
Silver
-
Material:
-
Steel, Carbon Steel, Stainless Steel, Q235
-
Technique:
-
Welded
-
Bearing bar pitch:
-
20mm-60mm
-
Cross bar pitch:
-
30-100mm
-
Bearing bar thickness:
-
3mm-8mm
-
Length:
-
As required
-
Width:
-
As required
-
Feature:
-
Skidproof
Platform Serrated Steel Grating
Platform Serrated Steel Grating Description
Steel gratings are manufactured by forge welding rectangular bearing bars and drawn cross bars. This
welding process provides a positive fused connection providing years of service under the most demanding
conditions. Welded steel grating is our most popular product and is recommended for nearly all industrial
flooring applications. With nearly 80% open area, it allows for the easy passage of dirt, debris, snow
and liquids and essentially self-cleaning.
Platform Serrated Steel Grating Specification(In mm)
|
Bearing bar
( width x thickness)
|
25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 etc
I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
|
|
Bearing bar pitch
|
12.5, 15, 20, 22, 25, 30, 32.5, 34, 35, 38, 40, 50, 60 ,80mm, etc
|
|
Twisted cross bar pitch
|
30, 50, 60, 76, 80, 100, 101.6, 120mm, etc
|
|
Surface treatment
|
untreated, hot dipped galvanized, powder coated, painting etc
|
|
Greating style
|
Plain, Smooth, Serrated( teeth), I bar
|
|
Remarks: other size also can be customized according to customer's request
|
|
Platform Serrated Steel Grating Applications
1. Sewage drain covers, manhole covers, fork lift traffic and loading ramps
2. Racks and shelving Fire escapes, light guards and loading ramps
3. Mezzanines and platforms
4. Infill panels
5. Vessel internals and catalyst support grids
6. Bridge sidewalks and bridge decking
7. Architectural uses like building facades or partitions
8. Security screens in residential and commercial buildings
Platform Serrated Steel Grating Features
1. Anti-rust, anti-corrosion.
2. Light weight, easy installation.
3. Good Permeability, linghting.
4. Anti-slip, economical.

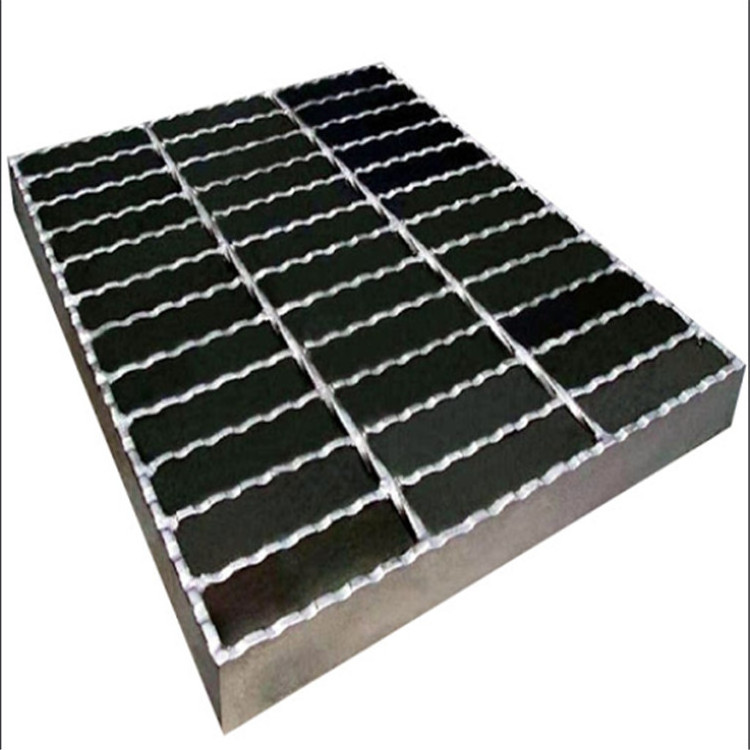

Product show
