Quick Details
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 10GG, 18GG
-
Knitting width:
-
72 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Power:
-
1.5
-
Weight:
-
750kg
-
Dimension(L*W*H):
-
1830*1920*1680 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Knitting Style:
-
Flat
Quick Details
-
Type:
-
Fancy Yarn
-
Production Capacity:
-
1500r/min
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 10GG, 18GG
-
Knitting width:
-
72 inch
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Power:
-
1.5
-
Weight:
-
750kg
-
Dimension(L*W*H):
-
1830*1920*1680 mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Knitting Style:
-
Flat
SGD 950 carpet making crochet machine

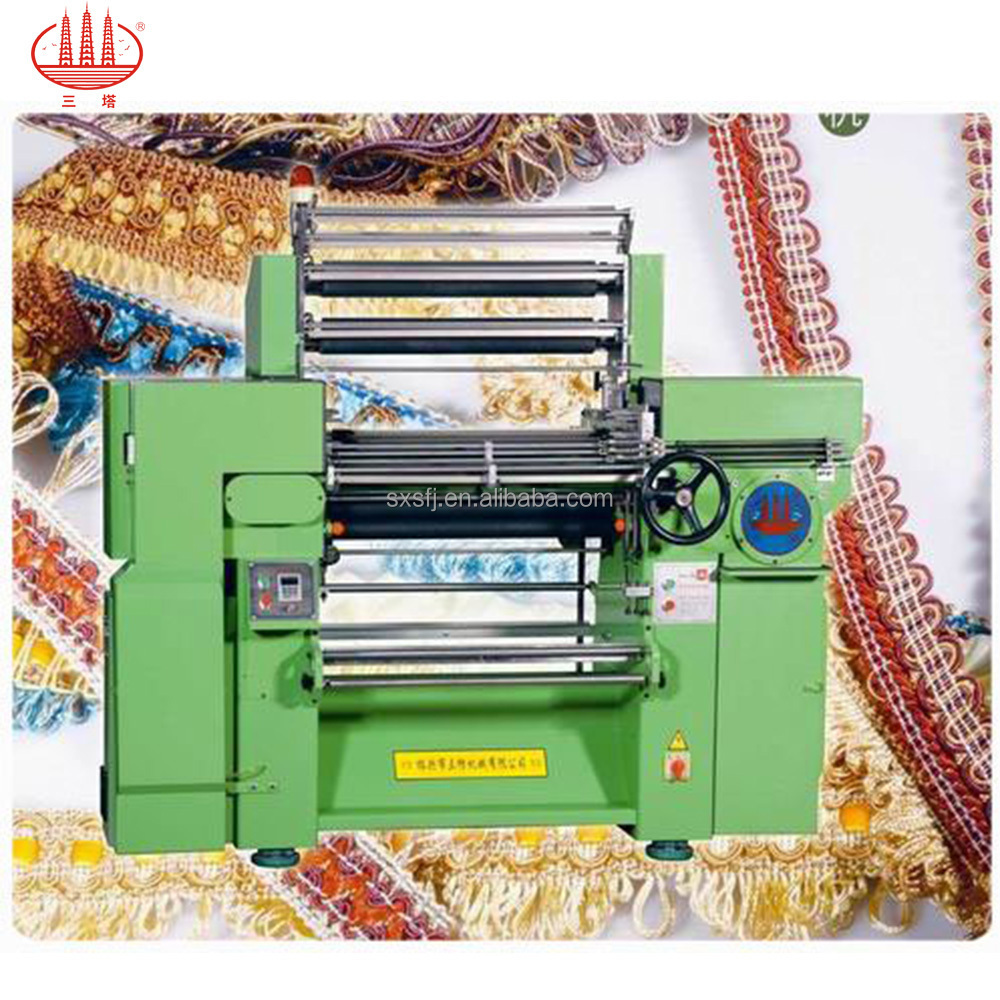

SGD-980 Scarf crochet machine is a high Speed crochet Machine. The machine first knits cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. Otherwise it knits warp and weft yarn to straightly kit belt yarn. machine is sutable to knit various kind of yarns and lace, both natural fibers(wool, silk, cotton, linen, etc.) and synthetic fibers (polyester, acrylic etc.) This entire material can be dyed before or after knitting, in accordance with its mattress. The finished yarn and lace is of flat shape.
Technical parameters
| Operational breadth | 760mm(30") |
| Gauge needles per inch | 15,18,20 |
| Weft bar | 2-6 bars |
| Stitch density | 5-20s/cm |
| Link chain | 12-48 sections |
| Main shaft speed | 1500r/min |
| The girth of rack frame | 170cm |
| Whole machine power | 1.5kw |
| Bobbin distance | 260 bobbins |
| Gaugo of yarn spindle | 200mm |
| Main machine | 1830*1920*1680 mm |
| Winding section | 3000*2800*3400 mm |
| Creel | 2100*1430*2750 mm |
Characteristics
SGD-980 model is a high speed fancy yarn crocket machine which can produce all various pattern yarns through changing the mechanical controller, the machine speed is controlled by a frequency converter, starting at slow speed with stepless changes, fast break and low speeed start are more convernient for the test production demand. The machine is divided into three main sections.
Sample
| Packing | tandard exporting wooden case with waterproof plastic nylon cover inside |
| Shipping | within 20 days after receive your prepayment |
