Quick Details
-
Housing Material:
-
Steel & Tempered glass
-
Housing Color:
-
Varied
-
Support Built-in Reader:
-
IC/ID. Barcode. RFID
-
Com Mode:
-
RS485. Rear TCP/IP
-
Communication distance:
-
1200m(RS485)
-
Data Transmission speed:
-
4800bps/100m
-
Offline storage Capacity:
-
10000pcs(Extendible)
-
Working Temperature:
-
-30°C--70°C
-
Working Conditional:
-
Indoor / Outdoor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZENTO
-
Barrier Dimension:
-
1050*345*295(mm)
-
Housing Material:
-
Steel & Tempered glass
-
Housing Color:
-
Varied
-
Support Built-in Reader:
-
IC/ID. Barcode. RFID
-
Com Mode:
-
RS485. Rear TCP/IP
-
Communication distance:
-
1200m(RS485)
-
Data Transmission speed:
-
4800bps/100m
-
Offline storage Capacity:
-
10000pcs(Extendible)
-
Working Temperature:
-
-30°C--70°C
-
Working Conditional:
-
Indoor / Outdoor

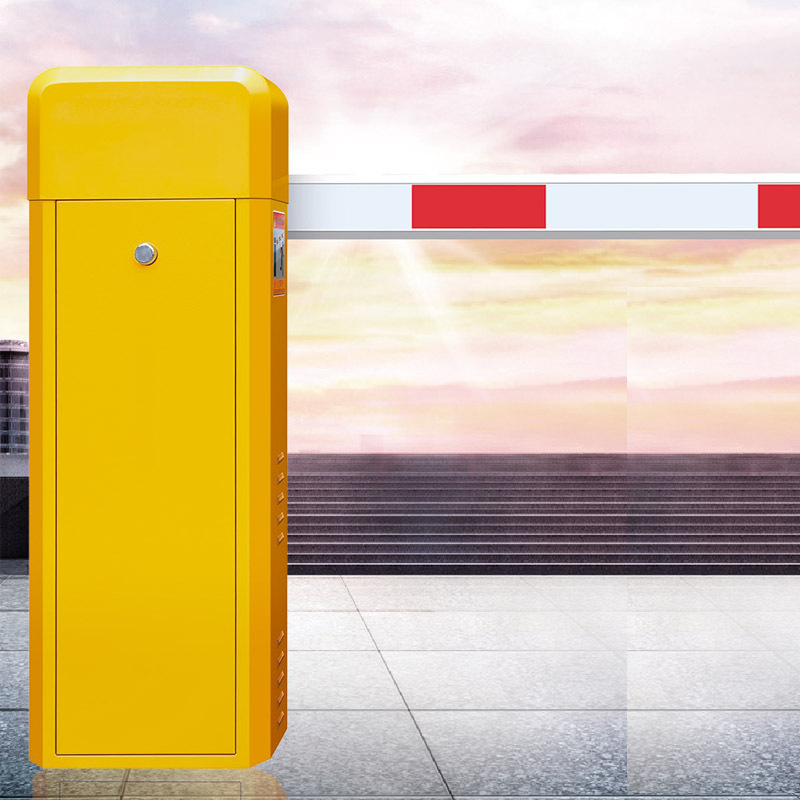

Full Automatic Boom Barrier

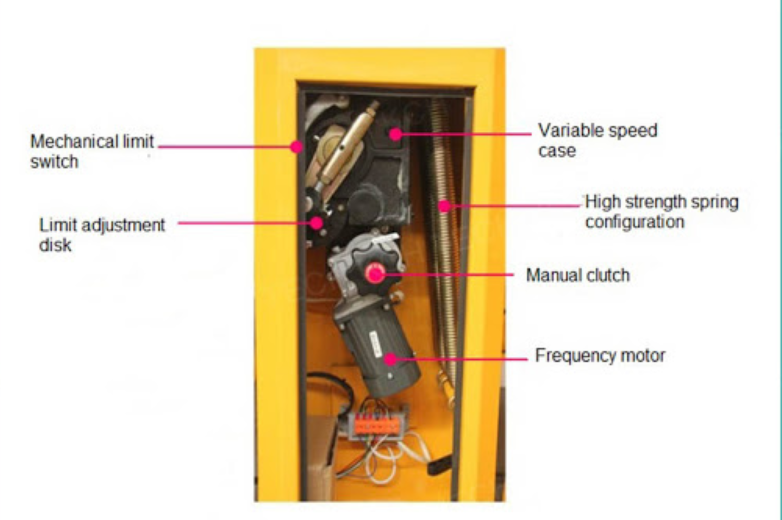

This product uses the new mold designing technology, mold stamping, die casting technology and no clutch designing. And the quality is more reliable. The mechanism uses the gear worm and crank link structure, and the boom move steady, and easy and quick maintenance.
Parameters
|
Boom Barrier gate Arm Length
|
max 6m
|
|
Boom barrier Rail up or down time
|
4s-6s
|
|
Related Motor Power
|
Turbine vortex pole motor 80W
|
|
Working Temperature
|
-40 degree to 60 degrees
|
|
Operation Humidity
|
≤90%
|
|
Protection grade
|
IP65
|
|
Voltage
|
110V~220V/50Hz~60Hz
|
|
Motor rated power
|
80W
|
|
Remote controller
|
2 pcs(free for barrier gate)
|
Functions & Features
