Quick Details
-
Type:
-
Raw
-
Size:
-
0.3-1mm1-2mm2-4mm3-6mm4-8mm
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
TY-V-001
-
Color:
-
Gold
-
Type:
-
Raw
-
Size:
-
0.3-1mm1-2mm2-4mm3-6mm4-8mm
Product Description
Vermiculite is a member of the phyllosilicate group of minerals, resembling mica in appearance. It is found in various parts of the world, vermiculite is basically a hydrated phlogopite mica which has the remarkable ability to expand to many times its original volume when heated at 850 -1100°C.

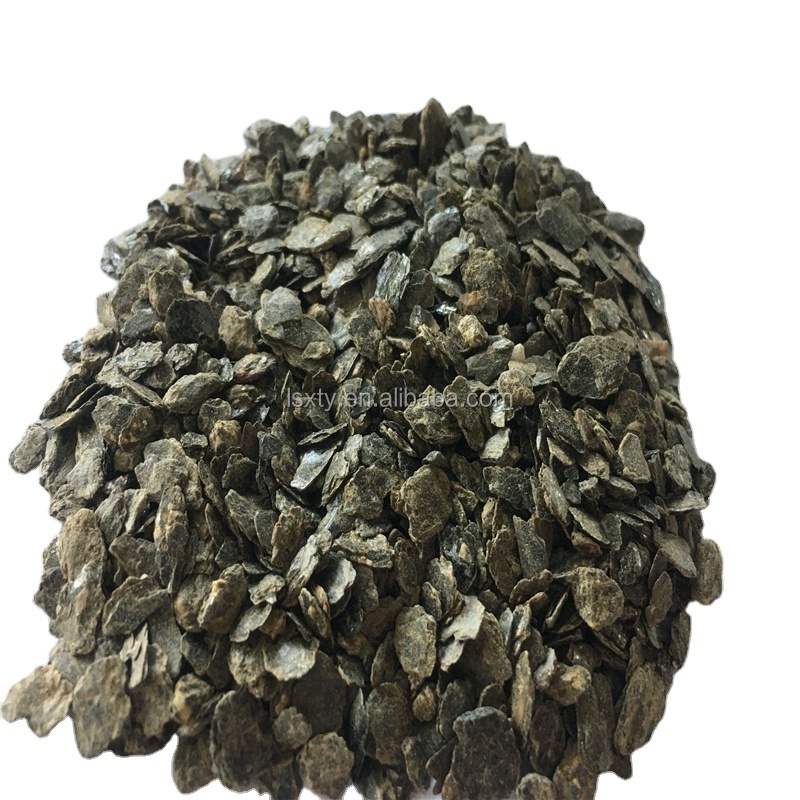

Crude vermiculite consists of golden and silver vermiculite which are carefully classified into many sizes .includes0.3-1mm1.5-2.5mm0.5-1.41mm1-2mm2-4mm3-6mm4-8mm,etc
Crude vermiculite consists of golden and silver vermiculite which are carefully classified into many sizes .includes0.3-1mm1.5-2.5mm0.5-1.41mm1-2mm2-4mm3-6mm4-8mm,etc
Exfoliated Vermiculite
The exfoliation process is carried out commercially by passing crude vermiculite through a furnace chamber in a controlled manner.The crude vermiculite then expands at right angles to the cleavage planes, producing concertina-shaped particles many times their original volume. Exfoliated vermiculite size ,includes 0.3-1mm1-3mm1-2mm2-4mm2-3mm 3-5mm3-6mm4-8mm6-8mm,special size can be done as per customer’s demands .
The exfoliation process is carried out commercially by passing crude vermiculite through a furnace chamber in a controlled manner.The crude vermiculite then expands at right angles to the cleavage planes, producing concertina-shaped particles many times their original volume. Exfoliated vermiculite size ,includes 0.3-1mm1-3mm1-2mm2-4mm2-3mm 3-5mm3-6mm4-8mm6-8mm,special size can be done as per customer’s demands .
|
Main advantages and features of expanded vermiculite:
|
|
|
|
|
||||
|
Inorganic, inert and sterile.
|
Non abrasive.
|
Ultra light weight.
|
|
|
||||
|
Free from disease, weeds and insects.
|
Slightly alkaline.
|
High cation-exchange.
|
|
|
||||
|
Excellent aeration characteristics.
|
Insulating.
|
High water holding capacity
|
|
|
||||
Specification
|
Chemical Properties
|
|
|
|
|
|
|
|
||||||
|
Composition
|
SiO2
|
MgO
|
Al2O3
|
Fe2O3
|
CaO
|
K2O
|
ph
|
||||||
|
Percentage
|
37-42%
|
11-23%
|
9-17%
|
3.5-18%
|
1-2%
|
5-8%
|
7-11
|
||||||
|
Physical properties:
|
|
|
|
Item
|
Specification
|
|
|
Expansion ratios
|
5.5-11times
|
|
|
Bulk density of expanded vermiculite
|
120-160kgs/m3
|
|
|
Thermal Conductivity
|
0.045 - 0.069w/m °C Under ambient conditions
|
|
|
Asbestos
|
None
|
|
|
Hardness
|
1-1.5
|
|
|
Compressive resistance
|
100-150 Mpa
|
|
|
Melting point
|
1320°C-1370°C
|
|
|
Corrosion resistance
|
Alkali-resistant
|
|
|
Expanded Vermiculite Characteristics
|
|
|
|
|
||||
|
Size
|
Density
|
Specification
|
Moisture
|
Packing
|
||||
|
1-3 mm
|
140-160kg/M3
|
85% min
|
1% Max
|
100L pp bag
|
||||
|
2-4mm
|
140-160kg/M3
|
85% min
|
1% Max
|
100L pp bag
|
||||
|
3-6mm
|
130-150kg/M3
|
85% min
|
1% Max
|
100L pp bag
|
||||
|
4-8mm
|
130-150kg/M3
|
85% min
|
1% Max
|
100L pp bag
|
||||
|
Vermiculite size:
|
|
|
|
Raw
|
0.3-1mm,0.71-2mm,1.4-4mm,1.5-3.2mm,3.2-7mm,6-9mm ,etc
|
|
|
Expanded
|
20-40mesh, 40-60mesh, 60-80mesh,80-120mesh, 200mesh, 325mesh, 1250mesh, 2500mesh, 0.3-1mm, 1-3mm, 2-4mm, 2-5mm, 3-6mm, 4-8mm,
1-5mm, 1-8mm, or according to customers requirement. |
|
|
Application
|
|
|
|
|||
|
Agriculture
|
Horticulture
|
Construction
|
Industry
|
|||
|
Animal feed
|
Hydroponics
|
Fireproof board
|
Lightweight concretes
|
|||
|
Fertilizer carrier
|
Potting mixes
|
Insulation
|
Brake pads & brake shoes
|
|||
|
Soil conditioner
|
Seed germination
|
Sound absorption
|
Thermal insulation
|
|||
|
Anti-caking material
|
Root cuttings
|
Lightweight concretes
|
Paints
|
|||
Vermiculite of different sizes has different uses
20 mesh:
house insulation equipment, household refrigerator, automobile sound absorber, sound-proof plaster, safe deposit box and cellar lining pipes, heat protective clothes for boilers, ladles for ironmaking plants, refractory brick insulation cement.
20 ~ 40 mesh: automotive insulation equipment, aircraft insulation equipment, cold storage insulation equipment, bus insulation equipment, wallboard water cooling tower, steel annealing, fire extinguisher, filter, cold storage.
40 ~ 120 mesh : linoleum, roof board, eaves, dielectric gate.
120-270 mesh : wallpaper printing, outdoor advertising, paint, increase paint viscosity, fireproof card paper for photographic cork board.
270 mesh : supplement for gold and bronzer inks and paints..
20 ~ 40 mesh: automotive insulation equipment, aircraft insulation equipment, cold storage insulation equipment, bus insulation equipment, wallboard water cooling tower, steel annealing, fire extinguisher, filter, cold storage.
40 ~ 120 mesh : linoleum, roof board, eaves, dielectric gate.
120-270 mesh : wallpaper printing, outdoor advertising, paint, increase paint viscosity, fireproof card paper for photographic cork board.
270 mesh : supplement for gold and bronzer inks and paints..
Packing & Delivery
Expanded vermiculite:
50L, 80L, 100L, 1000L jumbo bag, pallet packing or as request
100L Packing:300bags, 28CBM/20'GP // 730bags, 70CBM/40'HQ
Raw vermiculite:
20kg or 25kg per bag; Jumbo bags or 1Ton per bag, 20Tons/20'fcl;
1.1Tons/bag, 22Tons/20GP.vermiculite
50L, 80L, 100L, 1000L jumbo bag, pallet packing or as request
100L Packing:300bags, 28CBM/20'GP // 730bags, 70CBM/40'HQ
Raw vermiculite:
20kg or 25kg per bag; Jumbo bags or 1Ton per bag, 20Tons/20'fcl;
1.1Tons/bag, 22Tons/20GP.vermiculite
