Quick Details
-
Brand Name:
-
JMC
-
Model Number:
-
80JASM510230K-17B-SC+JAND10002-20B
-
Frequency:
-
50/60HZ
-
Encoder:
-
with 17 bit absolute encoder
-
Power Supply:
-
220V
-
Rated Power:
-
1000W
-
Rated Torque:
-
3.18N.m
-
Peak Torque:
-
9.54N.m
-
Rated Speed:
-
3000rpm
-
Peak Speed:
-
5000rpm
-
Rated Current:
-
5.7A
-
Control Type:
-
Pulse type
-
Rotor Inertia:
-
1.1gcm²
Quick Details
-
AC Voltage:
-
AC 180V-240V
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JMC
-
Model Number:
-
80JASM510230K-17B-SC+JAND10002-20B
-
Frequency:
-
50/60HZ
-
Encoder:
-
with 17 bit absolute encoder
-
Power Supply:
-
220V
-
Rated Power:
-
1000W
-
Rated Torque:
-
3.18N.m
-
Peak Torque:
-
9.54N.m
-
Rated Speed:
-
3000rpm
-
Peak Speed:
-
5000rpm
-
Rated Current:
-
5.7A
-
Control Type:
-
Pulse type
-
Rotor Inertia:
-
1.1gcm²

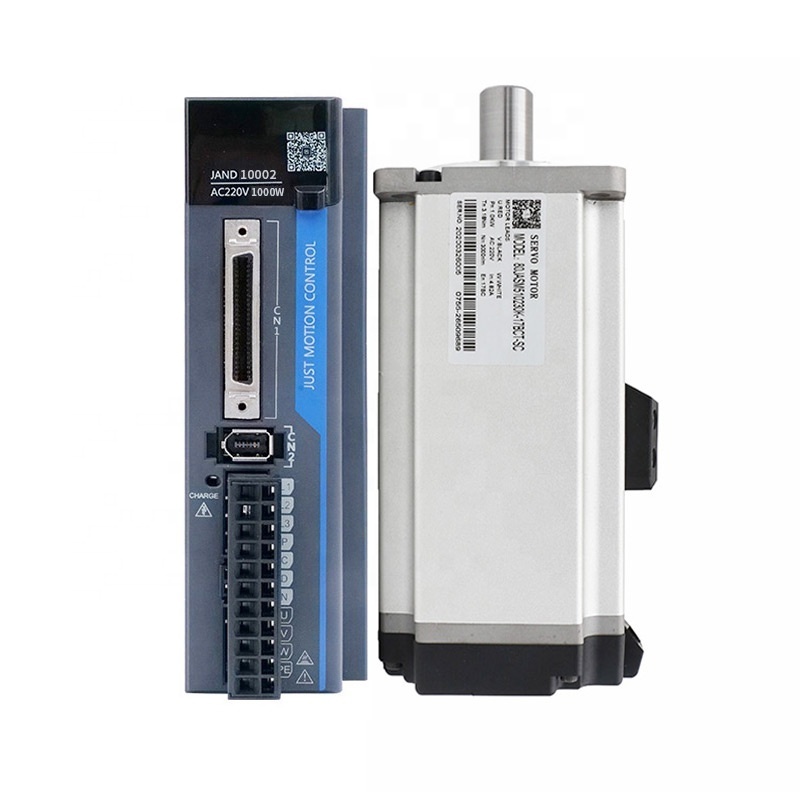

Details of Motor
|
Product
|
AC servo motor + servo driver
|
|
Brand
|
Just Motion Control
|
|
Model
|
80JASM510230K-17B-SC+
JAND10002-20B
|
|
Input Voltage
|
Single phase AC 180V-240V, 50/60Hz
|
|
Motor Base
|
80*80mm
|
|
Motor Rated Power
|
1000W
|
|
Rated Torque / Peak Torque
|
3.18N.m/9.54N.m
|
|
Rated Speed / Peak Speed
|
3000rpm / 5000rpm
|
|
Encoder
|
17-bit single-turn absolute encoder (magnetic)
|
|
Control Type
|
Pulse type
|
|
Drive Features
|
Space-saving, Excellent performance, Good apperance
|
|
Models
|
Voltage
(V)
|
Rated Power (W)
|
Rated Torque (N.m)
|
Rated Speed
(rpm)
|
Rated Currect
(A)
|
Matching Driver
|
||||||
|
40JASM01230K-17B
|
220
|
100
|
0.318
|
3000
|
1.1
|
JAND2002-20B
|
||||||
|
60JASM502230K-17B
|
220
|
200
|
0.62
|
3000
|
1.7
|
|
||||||
|
60JASM504230K-17B
|
220
|
400
|
1.27
|
3000
|
2.8
|
JAND4002-20B
|
||||||
|
80JASM507230K-17B
|
220
|
750
|
2.39
|
3000
|
4.9
|
JAND7502-20B
|
||||||
|
80JASM510230K-17B
|
220
|
1000
|
3.18
|
3000
|
5.7
|
JAND10002-20B
|
||||||
|
Motor with brake is optional
|
|
|
|
|
|
|
||||||
|
Model
|
JAND2002-20B
|
JAND4002-20B
|
JAND7502-20B
|
JAND10002-20B
|
|||
|
Rated Power (W)
|
200
|
400
|
750
|
1000
|
|||
|
Continuous output current (A)
|
1.6
|
2.8
|
5.5
|
7.6
|
|||
|
Max output current (A)
|
5.8
|
9.6
|
16.9
|
23
|
|||
|
Braking resistor
|
External braking resistor
|
|
Built-in braking resistor
|
|
|||
|
Input voltage
|
Single phase AC 180V-240V, 50/60Hz
|
|
|
|
|||
|
Communication function
|
RS232, for debugging on PC;
RS485, support modbus protocol (only for reading data)
|
|
|
|
|||
Product packaging
Application
Recommend Products
Why Choose Us
Certificate
We have
CE Certificate/ RoHS Certificate /
Utility Model Patent Certificate/
Computer software copyright Registration Certificate
and so on
