Quick Details
-
Battery Size:
-
195*175*205(210)mm
-
Brand Name:
-
bosfa/OEM
-
Model Number:
-
GB6-100
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15kg
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
6V
-
Material:
-
High Pure Lead 99.9994%
-
Battery type:
-
Valve Regulated Lead Acid Battery
-
Color:
-
Black/OEM
-
OEM order:
-
Acceptable
-
Electrolyte:
-
Dilute High Purity Sulphuric Acid
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed AGM
-
Cycle Life:
-
8 years
-
Battery Size:
-
195*175*205(210)mm
-
Brand Name:
-
bosfa/OEM
-
Model Number:
-
GB6-100
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
15kg
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Voltage:
-
6V
-
Material:
-
High Pure Lead 99.9994%
-
Battery type:
-
Valve Regulated Lead Acid Battery
-
Color:
-
Black/OEM
-
OEM order:
-
Acceptable
-
Electrolyte:
-
Dilute High Purity Sulphuric Acid

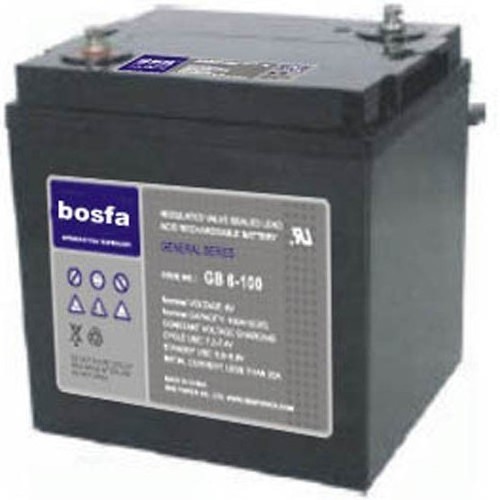

6v 100ah sealed lead acid agm ups battery lead acid vrla battery 6v 100ah
Product Description
GB (General) series batteries
Bosfa GB(General Models)Series Valve Regulated Lead Acid Battery are designed with AGM (Absorbent Glass Mat)
technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System, Alarm Systems.
technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System, Alarm Systems.
Application:
Alarm System
UPS
Cable Television
Power tools
Communication Equipment
Emergency Power System
Control Equipment
Toy
Alarm System
UPS
Cable Television
Power tools
Communication Equipment
Emergency Power System
Control Equipment
Toy
General Features:
Sealed and maintenance free operation.
Non-Spillable construction design.
ABS containers and covers(UL94HB, UL94V-0) optional.
Safety valve installation for explosion proof.
High quality and high reliability.
Exceptional deep discharge recovery performance.
Low self discharge characteristic.
Flexibility design for multiple install positions .
Sealed and maintenance free operation.
Non-Spillable construction design.
ABS containers and covers(UL94HB, UL94V-0) optional.
Safety valve installation for explosion proof.
High quality and high reliability.
Exceptional deep discharge recovery performance.
Low self discharge characteristic.
Flexibility design for multiple install positions .
Specification
|
Model
|
GB6-100
|
|
Nominal Capacity (20℃)
|
100Ah (10HR)-rate (10A 1.75V)
|
|
Dimension
|
L195xW170xH210mm
|
|
Weight
|
15kg
|
|
Designed Floating Life
|
8years
|
|
Internal Resistance
|
fully charged at 25℃:0.003Ohm
|
|
Self Discharge
|
3% of capacity declined per month at 25℃
|
|
Charge Voltage (25℃)
|
7.2-7.5V(-15mV/℃), Max. Current: 25A for Cycle use
|
|
|
6.8-6.9V(-10mV/℃), for Float use
|
|
Capacity Affected by Temp. (20HR)
|
40℃---102%; 25℃---100%; 0℃---85%; -15℃---65%
|
