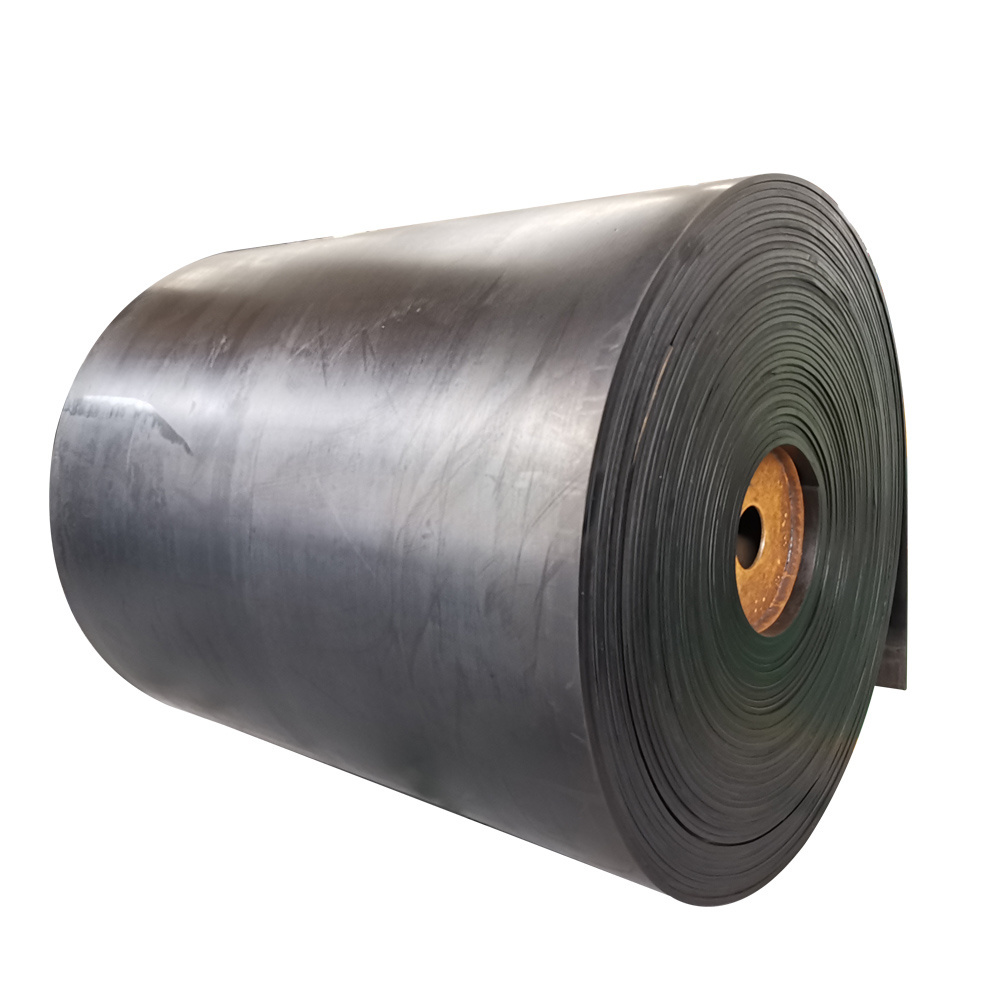

solid woven vulcanized splicing rubber conveyor belt for combine harvester

solid woven vulcanized splicing rubber conveyor belt for combine harvester

FOB Reference Price: Get Latest Price

≥1 Meters

US $5

≥300 Meters

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: EP315/3 EP400/4

After-sales Service Provided:: Engineers available to service machinery overseas

Description:: Chevron conveyor belts

Fabric structure warp:: polyester

Fabric structure weft:: polyamid

Color:: Black

Strength(N/mm):: 600/900/1200/1500

Application:: Industry

Material:: Natural Rubber

Certificate:: ISO 9001

Type:: EP400/3

Quick Details

Processing Service:: Moulding, Cutting

Place of Origin:: Zhejiang, China

Brand Name:: sinoconve

Model Number:: EP315/3 EP400/4

After-sales Service Provided:: Engineers available to service machinery overseas

Description:: Chevron conveyor belts

Fabric structure warp:: polyester

Fabric structure weft:: polyamid

Color:: Black

Strength(N/mm):: 600/900/1200/1500

Application:: Industry

Material:: Natural Rubber

Certificate:: ISO 9001

Type:: EP400/3

Product Description

SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.

Property

-- High strength

-- High resistant to abrasion

-- Low elongation

-- Resistant to impact

-- Suitable for long distance,large loading capacity and high speed transportation

Manufacturing standards

GB/T 7984

DIN 22102

JISK 6322

AS 1332-2000

SANS 1173:2005

BS 490

Specification

Cover Rubber grade	8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA	DIN-X,Y,W RMA-1,RMA-2 N17,M24
Belt width (mm)	500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500	18",20",24",30",36",40",42" 48",60",72",78",86",94"
Tensile strength	EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6	330PIW, 440PIW
Top+Bottom thickness	3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,	3/16"+1/16", 1/4"+1/16"
Belt thickness	3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length	10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type	moulded(sealed) edge or cut edge

Application

MOQ:5m

High quality wrapped V belt

O,Z,M,A,B,C,D,E

SPZ,SPA,SPB,SPC,

3V,5V,8V,3L,4L,5L

MOQ: 50pcs

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC

AX10X,AV13X,AV15X,AV17X,AV22X

3VX,5VX,8VX

MOQ:50pcs

Quality control

Step 1: Raw material inspection

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound

EP fabric test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

Length and surface inspection

Thickness inspection

WIdth inspection

Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
