Quick Details
-
Voltage:
-
As your request, Customer Requireme
-
Dimension(L*W*H):
-
2800x2300x2500mm
-
Power (kW):
-
20
-
Weight (KG):
-
3700 KG
-
Product Name:
-
Vertical Slotting Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Model:
-
BK5032
-
Function:
-
Cutting Metal
-
Keyword:
-
High Precision Vertical Slotting Machine
-
Processing Types:
-
Mechanical Shaper Machine
-
Application:
-
Metal Cutting Machine
-
Machine Type:
-
Heavy Duty Slotting Machine
-
Precision:
-
High Precision
Quick Details
-
Place of Origin:
-
SHN
-
Brand Name:
-
Dehai Yaoyang
-
Marketing Type:
-
New Product 2024
-
Voltage:
-
As your request, Customer Requireme
-
Dimension(L*W*H):
-
2800x2300x2500mm
-
Power (kW):
-
20
-
Weight (KG):
-
3700 KG
-
Product Name:
-
Vertical Slotting Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Model:
-
BK5032
-
Function:
-
Cutting Metal
-
Keyword:
-
High Precision Vertical Slotting Machine
-
Processing Types:
-
Mechanical Shaper Machine
-
Application:
-
Metal Cutting Machine
-
Machine Type:
-
Heavy Duty Slotting Machine
-
Precision:
-
High Precision
Products Description

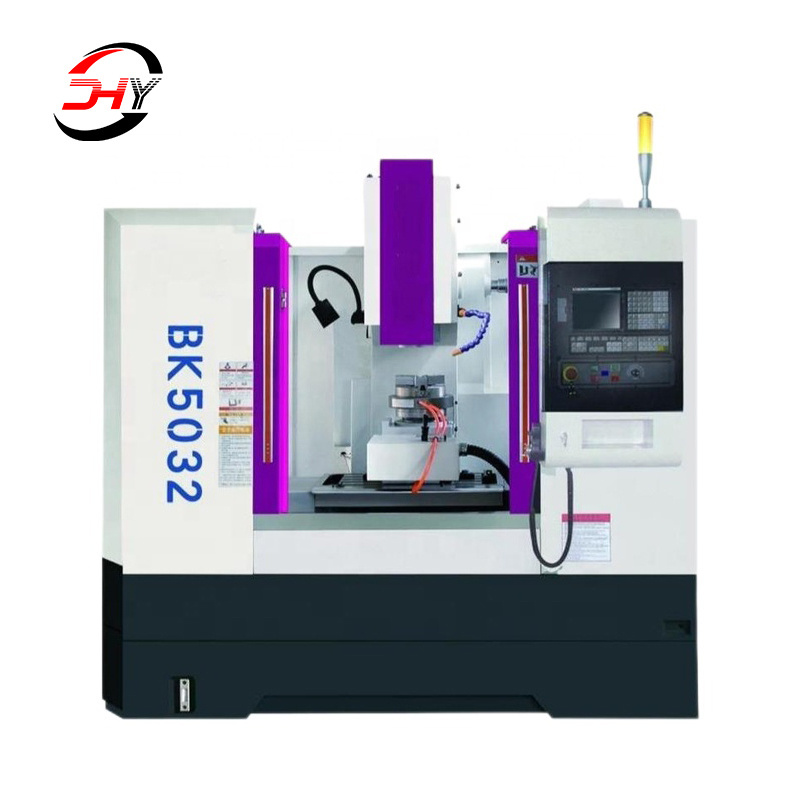

CNC slotting machine
1.Synchronous belt driving, low noise and large transmission power.
2.The screw nut of Y axis is double nut and pretension treated.
3.The main motor is servo motor.
4. cnc system with hand controller. Fanuc, Siemens cnc system is for option.
5.Full enclosure design.
6.High precision and good finishing.
7.CNC Rotary table is for option.
Product Paramenters
|
SPECIFICATIONS
|
Units
|
BK5018
|
BK5030
|
BK5032
|
BK5040
|
|
Max.ram slotting length
|
mm
|
180
|
300
|
320
|
400
|
|
Ram moving frequency per minute
|
times/min
|
30-120
|
20-180
|
20-80
|
20-80
|
|
Ram vertical adjustment distance
|
mm
|
80
|
300
|
315
|
220
|
|
Distance from cutter head to column surface
|
mm
|
400
|
505
|
600
|
770
|
|
Distance between ram lower end to table surface
|
mm
|
680
|
540
|
490
|
830
|
|
Table size
|
mm
|
600*320
|
550*405
|
600*320
|
900*610
|
|
Table travel(X/Y)
|
mm
|
460*320
|
280*330
|
620*560
|
500*600
|
|
X axis motor torque
|
N.M
|
6
|
6
|
7.7
|
10
|
|
Y axis motor torque
|
N.M
|
6
|
6
|
7.7
|
15
|
|
X axis rapid traverse speed
|
m/min
|
5
|
5
|
5
|
5
|
|
Y axis rapid traverse speed
|
m/min
|
5
|
5
|
5
|
5
|
|
Main motor power
|
kw
|
3.7
|
3.7
|
4
|
5.5
|
|
Machine weight
|
kg
|
2000
|
2700
|
3700
|
5000
|
|
Overall dimension
|
mm
|
2200*2100*2300
|
2300*2200*2300
|
2800*2290*2500
|
2900*2290*2500
|
Details Images
High rigidity workbench, optional CNC dividing head and CNC rotary chuck according to customer requirements.
The bed consists of a base and a column, which has good rigidity and anti-vibration capabilities. The servo motor is directly connected to the ball screw, and the transmission is accurate.
Optional GSK, Fanuc, Siemens and other CNC systems.
Slider
The slotting process uses a unique slotting and extrusion process. The tool holder is made of special alloy steel and corresponding heat treatment process, which has high strength and long service life. The cutter head is an embedded design with high precision, good interchangeability and fast replacement.
