Quick Details
-
Weight (KG):
-
0.05 KG
-
Mode:
-
PWAJHF552030LXX-DC
-
SIze:
-
D18X99mm
-
Wavelength:
-
520nm
-
Output power:
-
<30mw (20-35mw)
-
Operating Voltage:
-
5V
-
Lens:
-
Powell lens
-
line width:
-
Adjustable (mini:35um@300mm)
-
Divergence Angle:
-
10/20/30/45/60/75/90degrees
-
Working current:
-
<200mA
-
Service Life:
-
More than 10,000 hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
laser
-
Brand Name:
-
MZLASER
-
Weight (KG):
-
0.05 KG
-
Mode:
-
PWAJHF552030LXX-DC
-
SIze:
-
D18X99mm
-
Wavelength:
-
520nm
-
Output power:
-
<30mw (20-35mw)
-
Operating Voltage:
-
5V
-
Lens:
-
Powell lens
-
line width:
-
Adjustable (mini:35um@300mm)
-
Divergence Angle:
-
10/20/30/45/60/75/90degrees
-
Working current:
-
<200mA
-
Service Life:
-
More than 10,000 hours
Product Presentation
|
|

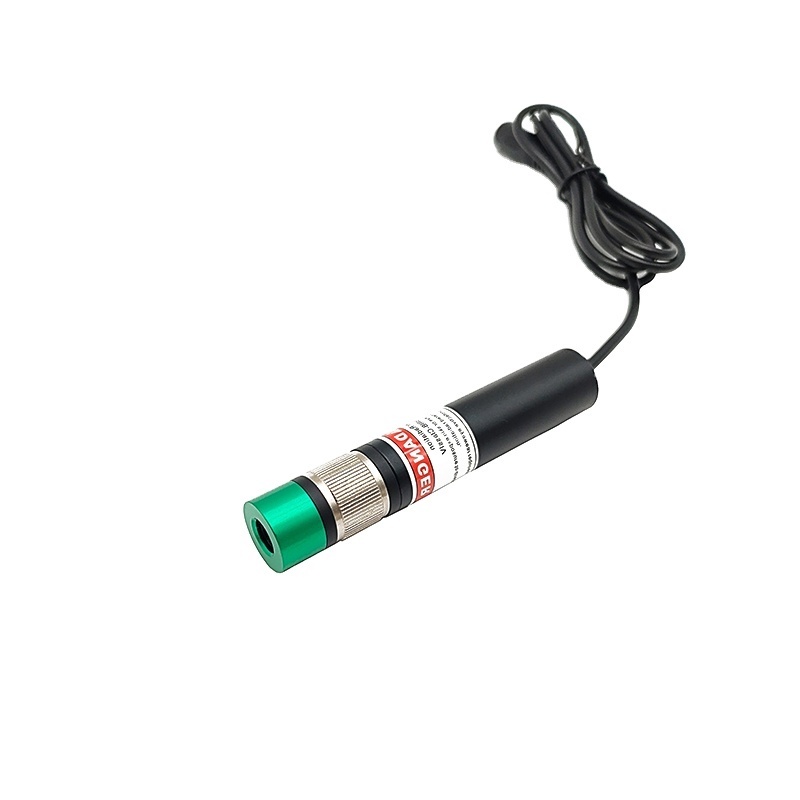

Adjustable focal length structured light laser
|
|
|
Environmental protection aluminum alloy
|
|
|
<30mw
|
|
|
2.8-7v
|
|
|
Adjustable focal(mini=35um)
|
|
|
D18x99mm
|
|
wavelength
|
520nm
|
|
Specifications(T=25℃)
|
Lamp cap
|
Throw night
|
External diameter
|
Height
|
irradiated area
|
|||||
|
Items
|
|
Symbols
|
PWAJHF552030LXX-DC
|
|
|
|||||
|
Wavelength
|
|
λ
|
520nm
|
|
|
|||||
|
Lens
|
|
|
Powell lens
|
|
|
|||||
|
Pattern
|
|
Pattern
|
Line
|
|
|
|||||
|
Spot Size/Width Line
|
|
10m/1m
|
Adjustable (mini:35um@300mm)
|
|
|
|||||
|
Diameter x Length
|
|
Φx L
|
18x99mm
|
|
|
|||||
|
Output Power
|
|
mw
|
<30mw
|
|
|
|||||
|
Power Stability
|
|
|
5%
|
|
|
|||||
|
Divergence Angle
|
|
deg
|
10/20/30/45/60/75/90degrees
|
|
|
|||||
|
Operating Voltage(DC)
|
|
v
|
5v
|
|
|
|||||
|
CW Operating Current
|
|
Ma
|
200
|
|
|
|||||
|
Operating Temperature
|
|
℃
|
﹣10~60℃
|
|
|
|||||
|
Storage Temperature
|
|
℃
|
﹣40~85℃
|
|
|
|||||
|
Housing Material
|
|
hour
|
>10,000 hrs
|
|
|
|||||
