welding, and filled with high strength foaming cement, which greatly improves the bearing capacity, flatness and decorative beauty
of the floor edge.
- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern
-
Material:
-
Calcium Sulphate
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Greatpoly
-
Product Name:
-
Anti-static Raised Floor
-
Function:
-
Anti-static.waterproof.fireproof
-
Usage:
-
Protect Ground
-
Size:
-
500*500*28mm/600*600*33mm
-
Surface finish:
-
HPL,PVC,Ceramic,carpet tile,linoleum,granite
Quick Details
-
Warranty:
-
More than 5 years
-
Project Solution Capability:
-
graphic design
-
Application:
-
School, Data Center, Data Center, Office, EXPO, Casino
-
Design Style:
-
Modern
-
Material:
-
Calcium Sulphate
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Greatpoly
-
Product Name:
-
Anti-static Raised Floor
-
Function:
-
Anti-static.waterproof.fireproof
-
Usage:
-
Protect Ground
-
Size:
-
500*500*28mm/600*600*33mm
-
Surface finish:
-
HPL,PVC,Ceramic,carpet tile,linoleum,granite
Product Description
|
Product name
|
Anti-static floor
|
|
Product specification
|
600*600*30 (routine) /600*600*35
|
|
Product surface
|
HPL/PVC
|
|
Material:
|
steel
|
|
Product filling
|
high strength foamed cement
|
|
Thickness of steel plate
|
0.5mm up and 0.6mm down
|
|
Single weight
|
14.5KG
|
|
Concentrated load
|
200KG
|
|
Uniform load
|
800KG
|
|
Support ratio
|
3.3/m²
|
|
Cross beam ratio
|
5.4/m²
|
|
Screw ratio
|
10.8 /m²
|
|
Special purpose:
|
antistatic
|
|
Pressure resistance
|
1960N-6675N
|
|
Wear resistance:
|
2000 RPM
|
|
Scope of application
|
computer room, office building, laboratory, computer data center, etc
|
1.Conductive Edge
2.Electrostatic sprayed covering
3.SPCC Cold-Rolled Steel Sheet
4.High-Quality Foam Cement
5.Anti-Corrosive Plastic Powder Coated Layer
6.ST14 Stretching Plate
Product Feature
welding, and filled with high strength foaming cement, which greatly improves the bearing capacity, flatness and decorative beauty
of the floor edge.
10%-20% higher than similar manufacturers.
welded by electric welding, with high-quality cold-rolled steel cross reinforcing bars and 12 strengthening points in the middle,
so that the floor has stronger non-rusting bearing capacity.
movable floors or for separate paving.

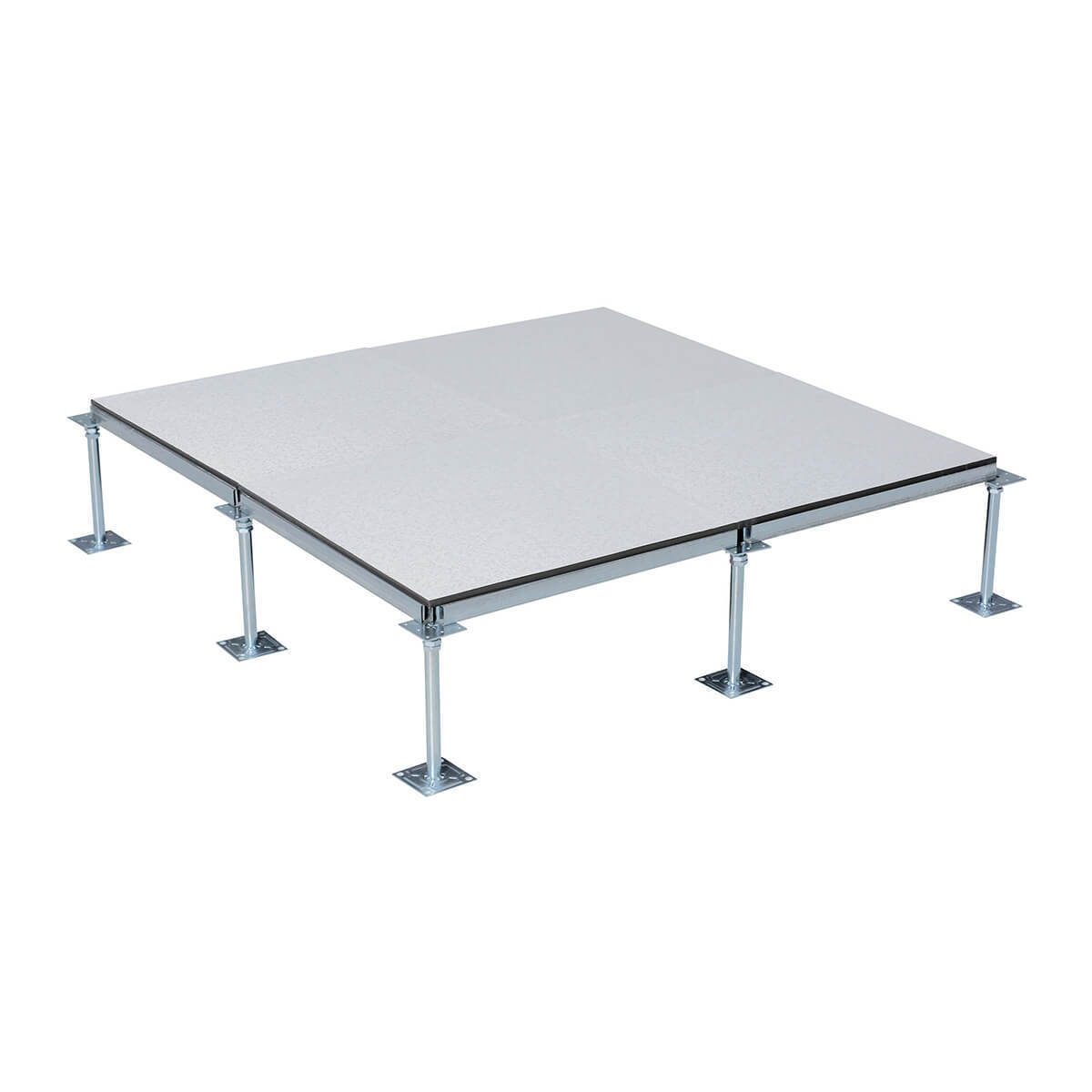

Product Display
Scope of application: computer room, office building, laboratory, computer data center, etc
