Quick Details
-
RF input frequency:
-
177.5-858Mhz
-
Video Decoding:
-
SD/HD MPEG2 and MPEG4 AVC H.264
-
USB Host:
-
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
-
Demodulation:
-
QPSK, 16QAM, 64QAM, 256QAM
-
Code Rate:
-
1/2, 3/5,2/3, 3/4, 4/5, 5/6
Quick Details
-
Processor Core:
-
Main chipset:sunplus1509
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
None
-
RF input frequency:
-
177.5-858Mhz
-
Video Decoding:
-
SD/HD MPEG2 and MPEG4 AVC H.264
-
USB Host:
-
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
-
Demodulation:
-
QPSK, 16QAM, 64QAM, 256QAM
-
Code Rate:
-
1/2, 3/5,2/3, 3/4, 4/5, 5/6
| Specifications: | ||||||||
| 1. Fully SD/HD DVB-T(ETSI EN 300 744)/T2(ETSI EN 302 755) compliant,support full HD 1080p | ||||||||
| 2.Support SD/HD MPEG2 and MPEG4 AVC H.264 | ||||||||
| 3.Auto and manually scan all available TV and radio channels | ||||||||
| 4.Powerful and highly effective 7-day EPG function | ||||||||
| 5.Multi-language menu,subtitle and audio output supported | ||||||||
| 6.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||||||
| 7.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box. | ||||||||
| 8.Support parental local and Teletext | ||||||||
| 9.Easy to use and attractive menu | ||||||||
| 10.Support various media files playback as below: | ||||||||
| Music: MP3,WMA Photo: JPEG,BMP,PNG | ||||||||
| Video: MKV,AVI,XVID,MOV,MPG,MP4,TS… | ||||||||
| Tuner and Demodulation parameter: | ||||||||
| RF input frequency: 177.5-858Mhz Bandwith:7/8MHz | ||||||||
| Demodulation: QPSK, 16QAM, 64QAM, 256QAM | ||||||||
| Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6 | ||||||||
| Guard: from 1/128 to 1/4 | ||||||||
| FFT Mode: from 1K to 32K | ||||||||
| Main chipset: sunplus1509 TUNER:MXL 608 | ||||||||
| Key Features: | ||||||||

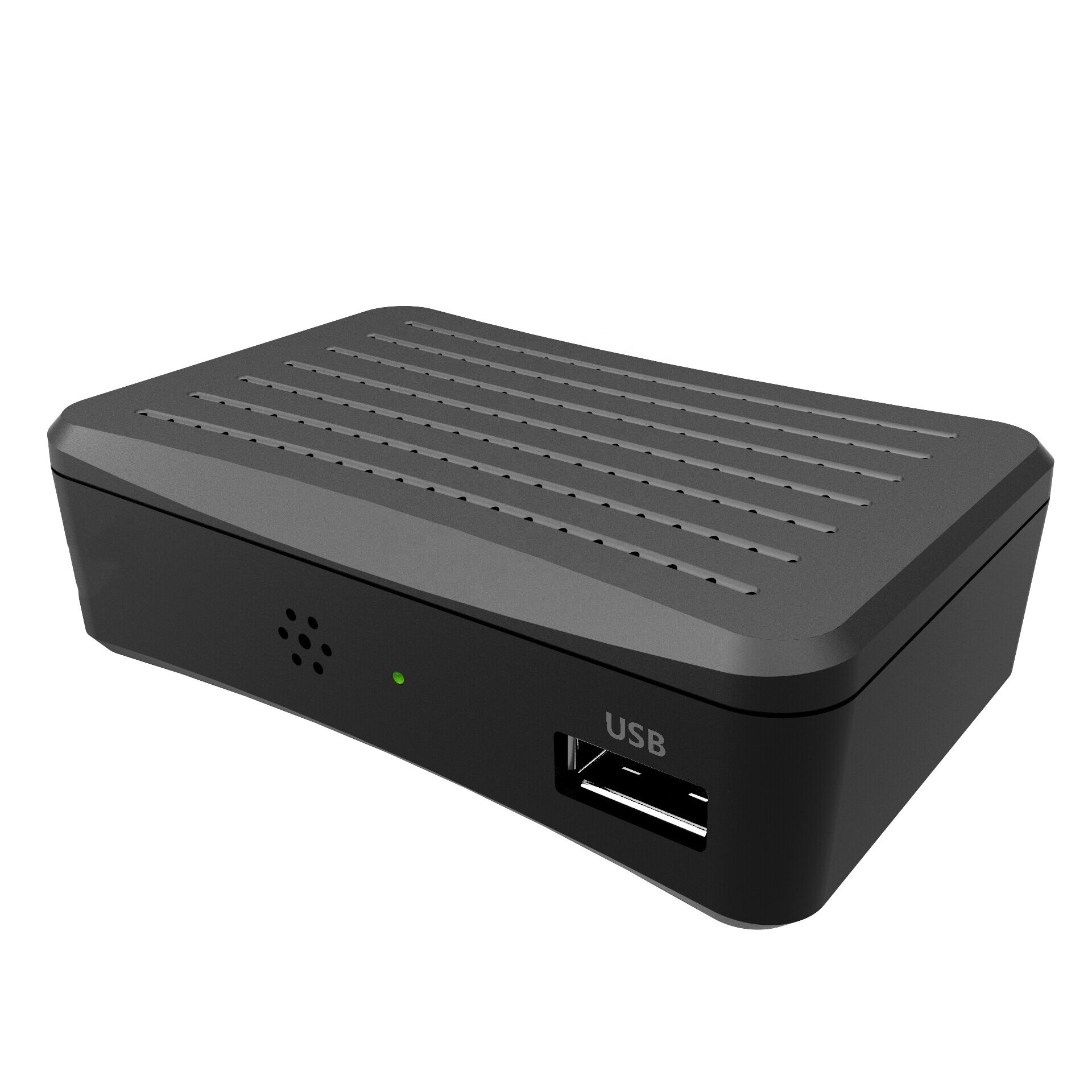

| Full HD DVB-T/T2 Receiver | ||||||||
| USB Media player | ||||||||
| Easy to use and attractive menu | ||||||||
| Input and Output: | |||||
| USB | |||||
| HDMI | |||||
| Coaxial | |||||
| VIDEO | |||||
| L/R AUDIO | |||||
| ANT IN | |||||
| ANTOUT | |||||
| DC IN | |||||
| Accessories Included (in Price above) | |||||
| AV cable | |||||
| User manual | |||||
| Remote | |||||
| Battery | |||||
| Warrenty card | |||||
| Adaptor |
| Hardware Compliance | |||||||
| Power Consumption | Power Voltage | Adaptor Voltage | Power Cord Length | ||||
| MAX 8W | 100~240V | 5V | 1M | ||||
Q1: How could I test IPTV system?
We will provide on-line test by our cloud server or help install local server for customer test.
Q2: Could I add some function or design UI interfaces ?
Yes, We have powerful R&D strength to tailor customer's requirements.
Q3: How to make an order?
You can contact our sales by email, whatsapp, skype for quotation.
Q4: How to make payment?
You can make payment by bank TT, western union, Alipay, Paypal etc...
Q5: How about technical support?
We will provide on-line support by teamviewer or on-site support for our customer.
