- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
3 years coal mine emulsion pump station
-
Brand Name:
-
An Pump big cutter sludge pumps
-
Model Number:
-
AM(R) 6x4 slurry pump
-
Place of Origin:
-
China slurry pumps
-
Horsepower:
-
40hp centrifugal pumps price
-
Power Source:
-
electric water pumps for mining
-
Structure:
-
horizontal slurry centrifugal pump, Slurry pump volute liner liner of slurry pump
-
Cable Length:
-
centrifugal small mud slurry pumps, 64 dah slurry pump
-
Outlet Size:
-
6inch diesel water pump mining
-
Power:
-
slurry pump 45 kw
-
motor:
-
slurry pump 22 kw
-
Usage:
-
Large sand dredging machine mineral sand slurry pump
-
More usage:
-
Dain pumps for mining
-
Feature:
-
Impeller slurry pumps
-
Thoery:
-
centrifugal slurry pump
-
Material:
-
Cr30 64d grit boat slurry pump
-
Medium:
-
Suspension particles slurry pump
-
Arrangement:
-
Abrasionresistant belt driven sand dredge slurry pump
-
Hot sales:
-
Top quality centrifugal slurry pumps
Quick Details
-
Application:
-
Industrial Boilers, Industrial Utilities, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, filter feeding slurry pump, dredge pump 3, electr miner slurri pump
-
Pressure:
-
High Pressure shijazhuang slurry pump
-
Voltage:
-
380 to 550v portable solid pump
-
Warranty:
-
3 years coal mine emulsion pump station
-
Brand Name:
-
An Pump big cutter sludge pumps
-
Model Number:
-
AM(R) 6x4 slurry pump
-
Place of Origin:
-
China slurry pumps
-
Horsepower:
-
40hp centrifugal pumps price
-
Power Source:
-
electric water pumps for mining
-
Structure:
-
horizontal slurry centrifugal pump, Slurry pump volute liner liner of slurry pump
-
Cable Length:
-
centrifugal small mud slurry pumps, 64 dah slurry pump
-
Outlet Size:
-
6inch diesel water pump mining
-
Power:
-
slurry pump 45 kw
-
motor:
-
slurry pump 22 kw
-
Usage:
-
Large sand dredging machine mineral sand slurry pump
-
More usage:
-
Dain pumps for mining
-
Feature:
-
Impeller slurry pumps
-
Thoery:
-
centrifugal slurry pump
-
Material:
-
Cr30 64d grit boat slurry pump
-
Medium:
-
Suspension particles slurry pump
-
Arrangement:
-
Abrasionresistant belt driven sand dredge slurry pump
-
Hot sales:
-
Top quality centrifugal slurry pumps
Main hopper heavy duty single phase slurry pump for sale

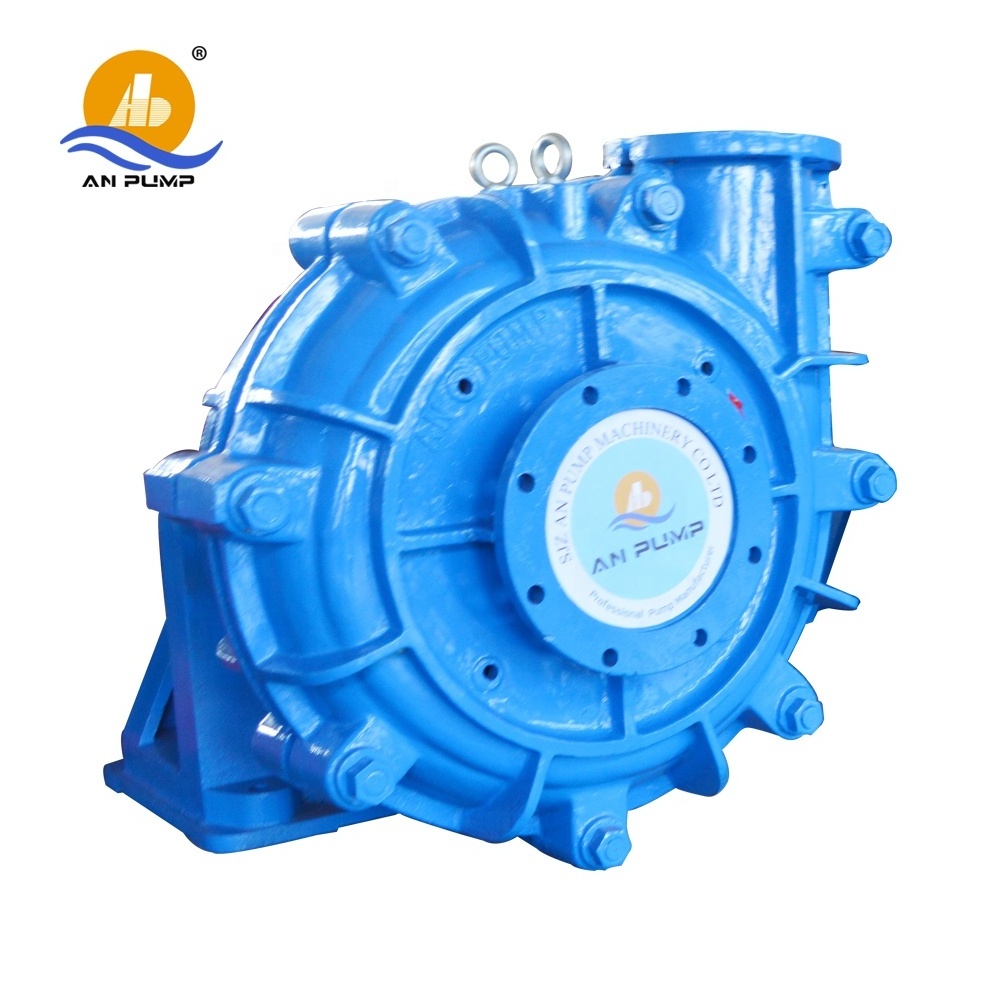

The AM series slurry pump is horizontal centrifugal slurry pump.
It is the heavy duty pump in mine and mineral processing for anti-abrasive and anti-corrosion conditions work.
The AM series slurry pump could handle all kinds of slurry pump, mud and sludge in dredge, lime in FGD processing at power plant.
There are different type of seal including gland packing seal, expeller seal and mechanical seal.
It could be driven by electric motor or diesel engine and we have engineer professional for your pump selection and related equipment select.
| Model | Capacity | Head | Speed | NPSHr | Efficiency | Shaft Power | Power | Dia. of pump | |
| (m3/h) | (m) | ( r/min) | (m) | (%) | (kw) | (kw) | Inlet | Outlet | |
| 1.5/1B-AM(R) | 3.6-22 | 5-70 | 1200-3800 | 3.2 | 20-40 | 0.34-9.36 | 1.5-15 | 38 | 25 |
| 2/1.5B-AM(R) | 7.2-50 | 7-61 | 1200-3200 | 3 | 18-45 | 0.93-13.5 | 1.5-15 | 51 | 38 |
| 3/2C-AM(R) | 21.6-89 | 13-63 | 1300-2700 | 3 | 45-60 | 1.9-24.1 | 4-30 | 76 | 51 |
| 4/3C-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-30 | 102 | 76 |
| 4/3D-AM(R) | 28.8-155 | 7-44 | 1000-2000 | 2.2-6 | 50-74 | 1.73-22.54 | 5.5-37 | 102 | 76 |
| 6/4D-AM(R) | 72-360 | 12.6-54 | 800-1480 | 3-6.8 | 50-68 | 6.27-51.07 | 15-55 | 152 | 102 |
| 6/4E-AM(R) | 93.6-385 | 21.7-58 | 1050-1600 | 3-7.8 | 50-68 | 11.9-101 | 22-110 | 152 | 102 |
| 8/6E-AM(R) | 126-648 | 10-58 | 500-1100 | 2-7.5 | 51-72 | 8.1-103 | 22-110 | 203 | 152 |
| 10/8ST-AM | 216-972 | 11-46 | 400-730 | 2-8.5 | 50-71 | 16.47-158 | 45-250 | 254 | 203 |
| 12/10ST-AM | 316.8-1620 | 10-55 | 350-730 | 2-7.2 | 60-80 | 18.26-249 | 30-380 | 305 | 254 |
| 14/12ST-AM | 504-2455 | 13-61 | 300-590 | 2-12.8 | 60-77 | 36.6-449 | 55-480 | 356 | 305 |
How can I make order online?
Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Can you produce the pump with my own brand?
Yes, we have been offering OEM service for 30 years.
Could we pay a visit to your factory?
Yes, you are always welcome to visit our factory.
Is there any after-sales service?
Yes, we can arrange our engineer to go to your application site for assembly or maintenance.
Can you produce goods with special specification?
First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible
