Quick Details
-
Brand Name:
-
China Coal Group
-
Product name:
-
self rescuer
-
Keyword:
-
Chemical Oxygen Self Rescuer
-
Protection time:
-
>30min/>45min
-
Suction pressure:
-
≤1200Pa/≤1200Pa
-
Dimension:
-
140*90*175mm/100*93*133mm
-
Weight:
-
1.5kg/2kg
-
Color:
-
Red
-
Packing:
-
Box
-
Standard:
-
GB24502-2009
-
Name:
-
coal mine self -rescuer
Quick Details
-
Weight (KG):
-
500
-
Core Components:
-
other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Product name:
-
self rescuer
-
Keyword:
-
Chemical Oxygen Self Rescuer
-
Protection time:
-
>30min/>45min
-
Suction pressure:
-
≤1200Pa/≤1200Pa
-
Dimension:
-
140*90*175mm/100*93*133mm
-
Weight:
-
1.5kg/2kg
-
Color:
-
Red
-
Packing:
-
Box
-
Standard:
-
GB24502-2009
-
Name:
-
coal mine self -rescuer
Products Description

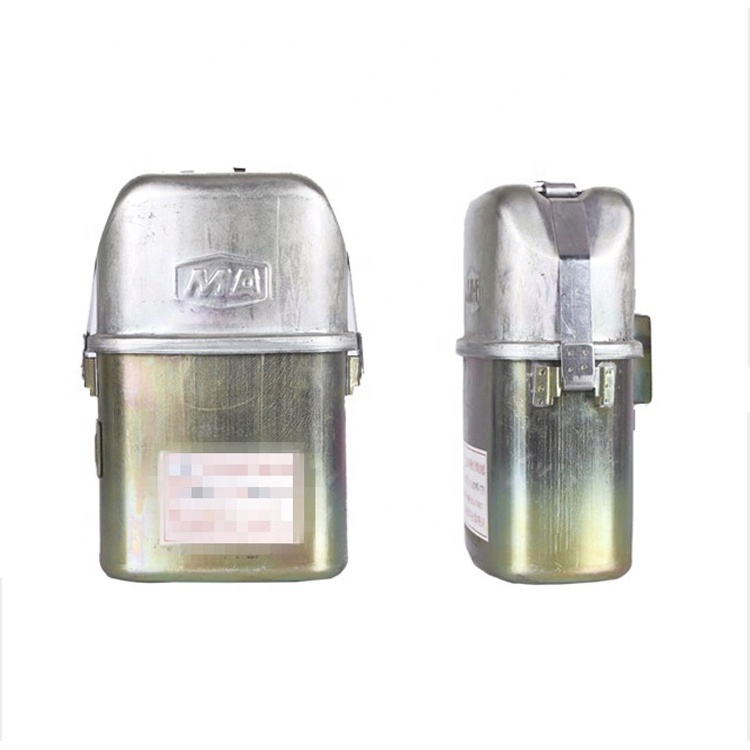

This self-rescuer is a personal respiratory protection device，when it appears hypoxia or toxic gases in underground coal mine or other work environments,people can wear this self-rescuer to evacuate the scene.zmwm15
Product Paramenters
|
Item
|
|
ZH30
|
ZH45
|
||
|
Protection time
|
|
>30min
|
>45min
|
||
|
Suction pressure
|
|
≤1200Pa
|
≤1200Pa
|
||
|
Temperature
|
|
≤55℃
|
|
||
|
Dimension
|
|
140×90×175mm
|
100×93×133mm
|
||
|
Weight
|
|
1.5kg
|
2kg
|
||
|
Valid
|
Storage
|
5years
|
|
||
|
|
Carry
|
3years
|
|
||
How To Use
Using and wearing this product, please operate follow the steps below.
1, Wearing position:
Usually the self-rescuer is hung on the back belt, or to be hung on the front belt according to the convenience of work.
2, Open wrench:
Before use, the self rescue device is transferred to the abdomen，The left hand hold the bottom,and the right hand pull protective cover，thrown away the protective cover when it separated from the shell, use the right hand pulling and open start wrench, pull off and discard the seal strip.
3, Remove the top shell:
Left hand holding the bottom shell，the left hand remove the top shell and throw away it.
4, Wear headband:
Putthe headband around neck.
5, Open starting device:
Pull out the mouth tool,open starting device，put the mouth tool into the mouth,teeth clenched teeth pad，close lips and open starting device.
6, Cliping nose clip:
Use the two hands to pull nose clip spring,clamp the nose accurately with nose clip,Breathe out of the air bag with your mouth.
