Quick Details
-
Model Number:
-
G1
-
Brand Name:
-
IMGV
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
dn80 resilient manual slide gate valve
-
Body material:
-
carbon steel
-
Type:
-
Gate Valves
-
Certificate:
-
ISO9001:2008 CE,WRAS.ACS
Quick Details
-
Port Size:
-
DN50-DN1200
-
Warranty:
-
18M
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
G1
-
Brand Name:
-
IMGV
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
dn80 resilient manual slide gate valve
-
Body material:
-
carbon steel
-
Type:
-
Gate Valves
-
Certificate:
-
ISO9001:2008 CE,WRAS.ACS

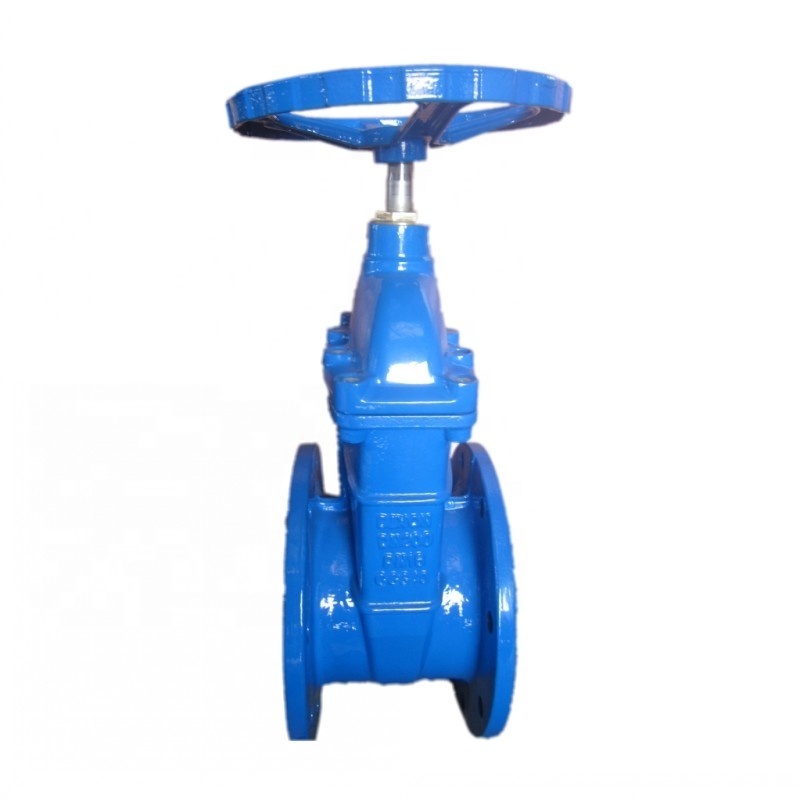

DN80 Resilient Manual Slide Gate Valve for Water General Application
Product Description
Specification:
| Size | DN50-DN1200 |
| Nominal Pressure | PN10/PN16 |
| WorkingTemperature | -10°C~120°C |
| Suitable Medium | Chemicals,air,water,steam,oil, acids,salts,etc |
Standards:
| Design standard | DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163 |
| Face to Face | DIN3202 F4/F5, BS5163, ANSI B16.10 |
| Flange Drilling | DIN2533 PN10/PN16, ANSI 125/150,JIS10K |
| Test Inspection | DIN3230, BS6755 |
Material:
| Body | Cast Iron, Ductile Iron |
| Wedge | Cast Iron, Ductile Iron |
| Stem | Stainless steel,Brass |
| Sealing Ring | EPDM,NBR |
| O Ring | EPDM,NBR |
