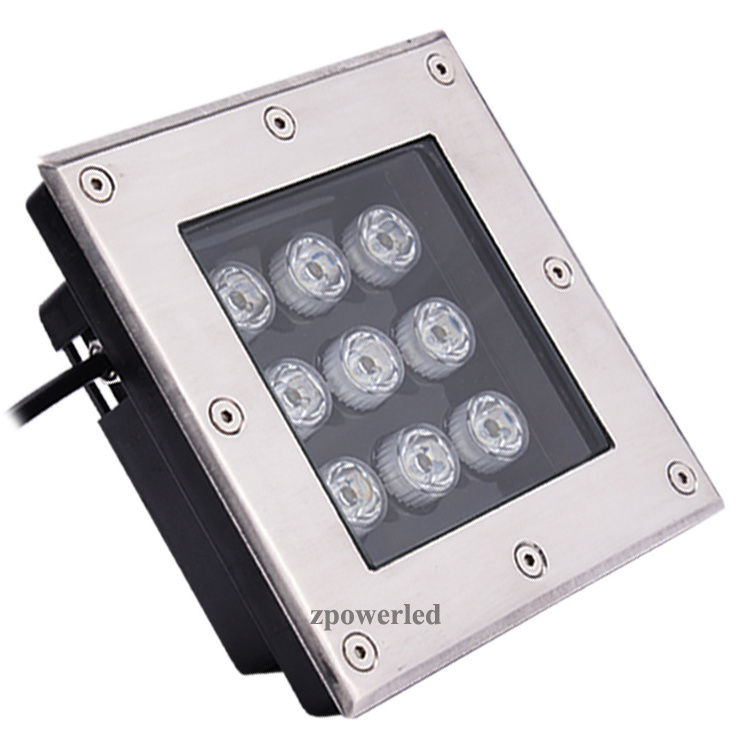

Warm White 3W 5W 6W 12W Aluminum Waterproof IP67 Square Underground UP LED Light
|
|
|
|
Model:
|
ZP-UG140-9
|
|
|
Power Consumption:
|
9w
|
|
|
LED Brand:
|
Bridgelux/Epistar/Cree
|
|
|
Chip Type:
|
Single Color/RGB
|
|
|
Underground Light Color:
|
Red, Green, Blue, White, Yellow, RGB
|
|
|
Control Method:
|
IR/RF/DMX512/RGB+ 4 Wires Control
|
|
|
Watt Options
|
3w, 6w, 9w, 12w, 18w, 24w, 36w
|
|
|
Working Voltage:
|
12v, 24v, 110v, 220v, 85-265v(50/60Hz)
|
|
|
Housing Material:
|
Die Cast Aluminum Housing, IP67 Waterproof
|
|
|
Beam Angle Options:
|
5/15/30/60/90/120 Degree
|
|
|
Environment Temperature:
|
-20°C - 50°C
|
|
|
Housing Temperature:
|
<62 °C
|
|
|
Lumen flux:
|
100-110LM/W
|
|
|
Item size:
|
L140*W140mm
|
|
|
Emitting Color and Temp.
|
Warm White 2700-3200K
Day White 4000-4500K
Pure White 6000-6500K
|
|
|
Warranty:
|
3 Years
|
|
|
OEM
|
OEM Service is available
|
|
|
Model No.
|
Size
|
Watt
|
Voltage
|
|
ZP-UGS0301
|
L100*W100mm
|
3w
|
12v/24v/110v/220v
|
|
ZP-UGS0601
|
L120*W120mm
|
6w
|
12v/24v/110v/220v
|
|
ZP-UGS0901
|
L140*W140mm, L150*W150mm
|
9w
|
12v/24v/110v/220v
|
|
ZP-UGS1201
|
L160*W160mm, L190*W190mm, L200*W200mm
|
12w
|
12v/24v/110v/220v
|
|
ZP-UGS1801
|
L250*W250mm
|
18w
|
24v/110v/220v
|
|
ZP-UGS2401
|
L250*W250mm
|
24w
|
24v/110v/220v
|
|
ZP-UGS3601
|
L300*W300mm
|
36w
|
24v/110v/220v
|
Acquiescently the length of output wire line is 50cm.
We can
OEM
and customize
EU
,
US
,
UK
,
AU
Plug.
The length of cables can be as long as customers' requirement. (
Any Cable Length
)
