Quick Details
-
Color:
-
Black
-
Loose tube:
-
PBT
-
Fiber type:
-
Singlemode/ multimode
-
Type:
-
Coaxial
-
Fiber:
-
G652d G655 G657A1 G657A2
-
strength member:
-
steel wire
-
structuer:
-
stranded loose tube
-
Armored:
-
Aluminum Tape
-
Fiber count:
-
2/4/6/8/12/16/24 core
Quick Details
-
Brand Name:
-
ZR
-
Place of Origin:
-
Hunan, China
-
Insulation Material:
-
PE
-
Color:
-
Black
-
Loose tube:
-
PBT
-
Fiber type:
-
Singlemode/ multimode
-
Type:
-
Coaxial
-
Fiber:
-
G652d G655 G657A1 G657A2
-
strength member:
-
steel wire
-
structuer:
-
stranded loose tube
-
Armored:
-
Aluminum Tape
-
Fiber count:
-
2/4/6/8/12/16/24 core
Products Description

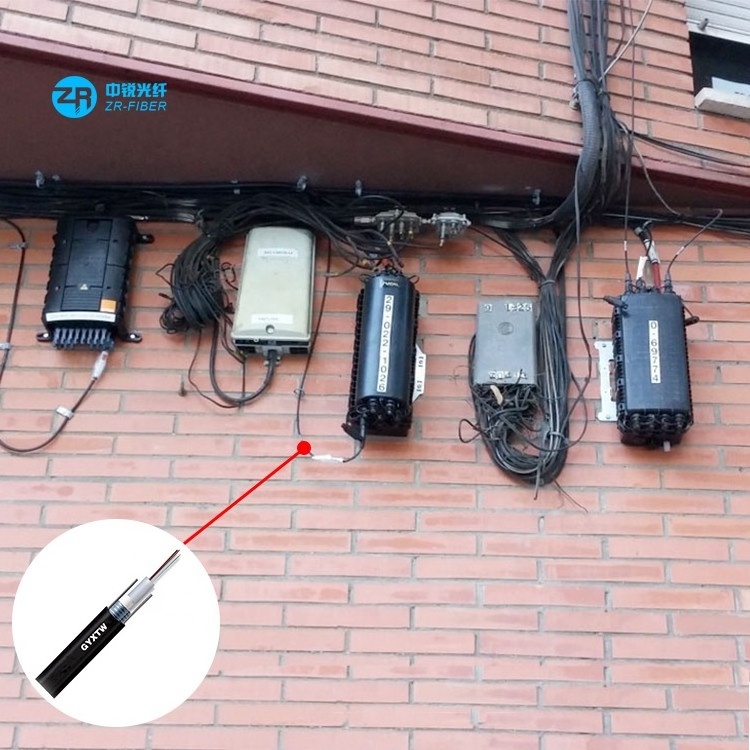

Shenzhen Manufacturer price G652d gyxtw 6 core Direct Buried single mode fiber optic cable
Description:
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling
compound. The tube is wrapped with a layer of water blocking system Two parallel wires are placed at the two sides. The cable is
completed with a polyethylene (PE) sheath.
compound. The tube is wrapped with a layer of water blocking system Two parallel wires are placed at the two sides. The cable is
completed with a polyethylene (PE) sheath.
Fiber Parameters:
|
NO
|
Items
|
|
Unit
|
Specification
|
|
|
|
|
|
|
G.652D
|
|
|
1
|
Mode Field Diameter
|
1310nm
|
μm
|
9.2±0.4
|
|
|
|
|
1550nm
|
μm
|
10.4±0.5
|
|
|
2
|
Cladding Diameter
|
|
μm
|
124.8±1.0
|
|
|
3
|
Cladding Non-Circularity
|
|
%
|
≤0.9
|
|
|
4
|
Core-Cladding Concentricity Error
|
|
μm
|
≤0.7
|
|
|
5
|
Coating Diameter
|
|
μm
|
245±10
|
|
|
6
|
Coating Non-Circularity
|
|
%
|
≤6.0
|
|
|
7
|
Cladding-Coating Concentricity Error
|
|
μm
|
≤12.0
|
|
|
8
|
Cable Cutoff Wavelength
|
|
nm
|
λcc≤1260
|
|
|
9
|
Attenuation(max.)
|
1310nm
|
dB/km
|
≤0.4
|
|
|
|
|
1550nm
|
dB/km
|
≤0.26
|
|
|
|
Attenuation(max.)
|
1300nm
|
dB/km
|
≤1.5
|
|
|
|
|
850nm
|
dB/km
|
≤3.5
|
|
Cable Parameters:
|
Items
|
|
Specifications
|
|
|
Fiber Count
|
|
4-12
|
|
|
Colored Coating Fiber
|
Dimension
|
250µm±15µm
|
|
|
|
Color
|
Blue Orange Green Brown...
|
|
|
Loose Tube
|
Dimension
|
2.0mm±0.05mm
|
|
|
|
Material
|
PBT
|
|
|
|
Color
|
Natural
|
|
|
Strength Member
|
Diameter
|
0.7mm
|
|
|
|
Material
|
Steel
|
|
|
Outer Jacket
|
Dimension
|
8.0mm±0.3mm
|
|
|
|
Material
|
PE
|
|
|
|
Color
|
Black
|
|
Mechanical and Environmental Characteristics:
|
Items
|
Unite
|
Specifications
|
|
Tension(Long Term)
|
N
|
200
|
|
Tension(Short Term)
|
N
|
450
|
|
Crush(Long Term)
|
N/10cm
|
200
|
|
Crush(Short Term)
|
N/10cm
|
600
|
|
Min. Bend Radius(Dynamic)
|
mm
|
20D
|
|
Min. Bend Radius(Static)
|
mm
|
10D
|
|
Installation Temperature
|
℃
|
-20~+70
|
|
Operating Temperature
|
℃
|
-40~+60
|
|
Storage Temperature
|
℃
|
-40~+60
|
Feature:
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
