Quick Details
-
Mist Output (gallon / day):
-
8.5KG/H
-
Power (W):
-
400
-
Voltage (V):
-
48, 48
-
Place of Origin:
-
Beijing, China
-
Model Number:
-
XQ-MM-H12
-
Brand Name:
-
QXULTRASONIC
-
Product name:
-
12head Ultrasonic Humidifier
-
Output Voltage:
-
DC36V -50V
-
Power:
-
400W
-
Wire length:
-
5 meter(OEM as 10m,20m)
-
Adapter Output voltage:
-
DC 48V
-
Ultrasonic rate:
-
8500ML/H
-
Adapter Input Voltage:
-
220v/50-60hz
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Car, RV, Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Ultrasonic Humidifier
-
Mist Output (gallon / day):
-
8.5KG/H
-
Power (W):
-
400
-
Voltage (V):
-
48, 48
-
Place of Origin:
-
Beijing, China
-
Model Number:
-
XQ-MM-H12
-
Brand Name:
-
QXULTRASONIC
-
Product name:
-
12head Ultrasonic Humidifier
-
Output Voltage:
-
DC36V -50V
-
Power:
-
400W
-
Wire length:
-
5 meter(OEM as 10m,20m)
-
Adapter Output voltage:
-
DC 48V
-
Ultrasonic rate:
-
8500ML/H
-
Adapter Input Voltage:
-
220v/50-60hz
Industrial Humidifier Fogger 12Head 8.5L/H Capacity Ultrasonic Mist Maker
Products Description
Product Main Features :
1.
Under Voltage range from 36VDC to 52VDC, power is constant. Fog volume can be adjusted within the voltage range from 24VDC to 36VDC.
2. The product has the property of reverse connection protection of input power, and with automatic shutdown protection when the voltage exceeds 56V.
3. Product has the automatically shuts down function when internal temperature is too high, and the power can be automatically adjusted according to the temperature.
4. With highly reliable capacitance style water shortage protection.
5 . With separated constant current circuit protection for each circuit.
6. With operating status indicator LED light, can display normal status, water shortage, over temperature and over voltage.
7. Oscillation frequency of the atomizing sheets is 1.7MHz.
8. Heat dissipation substrate is with an integrated aluminum profile.
9. With 304 polished stainless steel shell and brass nickel-plated chromium metal pressure rings.
2. The product has the property of reverse connection protection of input power, and with automatic shutdown protection when the voltage exceeds 56V.
3. Product has the automatically shuts down function when internal temperature is too high, and the power can be automatically adjusted according to the temperature.
4. With highly reliable capacitance style water shortage protection.
5 . With separated constant current circuit protection for each circuit.
6. With operating status indicator LED light, can display normal status, water shortage, over temperature and over voltage.
7. Oscillation frequency of the atomizing sheets is 1.7MHz.
8. Heat dissipation substrate is with an integrated aluminum profile.
9. With 304 polished stainless steel shell and brass nickel-plated chromium metal pressure rings.
Product Paramenters
Name: 12 head mist maker fogger
Material: 304 stainless
Size:326*68*51cm
Input voltage:AC220V/50-60HZ
Output voltage:DC48V
Power:400W
Weight: 1.7KG ( With the power supply:4KG)
Wire length:5 meter
Mist amout:8500ml/h
Optional adapter:water-proof adapter,rain-proof adapter etc.
Material: 304 stainless
Size:326*68*51cm
Input voltage:AC220V/50-60HZ
Output voltage:DC48V
Power:400W
Weight: 1.7KG ( With the power supply:4KG)
Wire length:5 meter
Mist amout:8500ml/h
Optional adapter:water-proof adapter,rain-proof adapter etc.

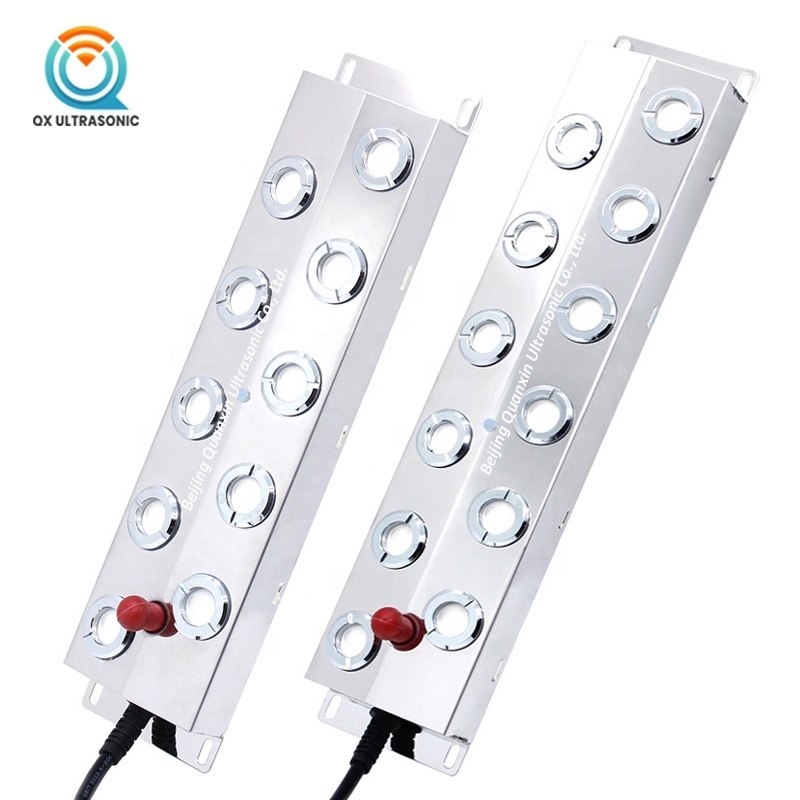

Product Picture
Product Usage Scenarios
