Quick Details
-
Air Consumption:
-
7-8m³/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XUGONG
-
Voltage:
-
380V, 380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1300*750*1180 mm
-
Weight:
-
600 kg
-
Warranty:
-
12 months
-
OEM/ODM:
-
acceptable
-
MOQ:
-
1 set
-
Operation Wind Pressure:
-
0.3-0.5 MPa
Quick Details
-
Max. Conveying Distance:
-
200 meters
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
7-8m³/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XUGONG
-
Voltage:
-
380V, 380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1300*750*1180 mm
-
Weight:
-
600 kg
-
Warranty:
-
12 months
-
OEM/ODM:
-
acceptable
-
MOQ:
-
1 set
-
Operation Wind Pressure:
-
0.3-0.5 MPa

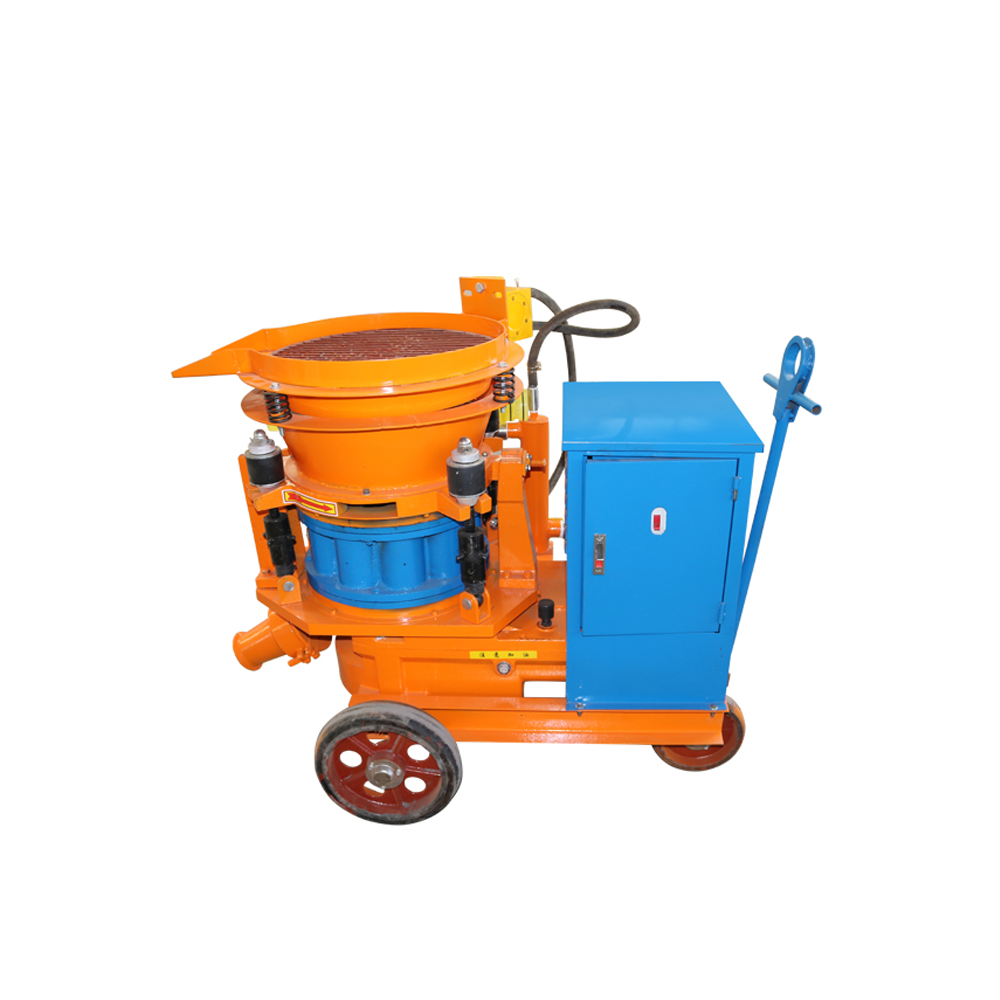

Widely Used PZ Series Dry Shotcrete Pump/ Gunite Machine For Sale
Shotcrete machine is also called dry shotcrete pump or small shotcrete machine.
Technical Parameters:
|
Type |
PZ-5 |
PZ-6 |
PZ-7 |
ZSP-7 |
|
Production Capacity |
5m³/hour |
6m³/hour |
7m³/hour |
7m³/hour |
|
Concrete Mixture Ratio |
1:4-5 |
1:4-5 |
1:4-5 |
1:4-5 |
|
Water Cement Ratio |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.6 |
|
Maximum Conveying Distance |
200m |
200m |
200m |
300mm |
|
Maximum Aggregate Size |
φ20mm |
φ20mm |
φ20mm |
φ20mm |
|
Nozzle Diameter |
φ51mm |
φ51mm |
φ64mm |
φ64mm |
|
Operation Wind Pressure |
0.3-0.5 MPa |
0.3-0.5 MPa |
0.3-0.5 MPa |
0.3-0.5 MPa |
|
Air Consumption |
7-8m³/min |
7-8m³/min |
10m³/min |
10-12 m³/min |
|
Filling Height |
1.1m |
1.1m |
1.2m |
1.2m |
|
Power of Motor |
5.5KW |
5.5KW |
7.5KW |
7.5KW |
|
Voltage |
380V |
380V |
380V |
380V |
|
Overall Dimensions |
1300*750* 1180mm |
1300*750* 1180mm |
1520*750* 1200mm |
2100*900* 1200mm |
|
Total Weight |
600 kg |
600kg |
850kg |
1000kg |
Excellent Performance:
l Tightly compact, attractive appearance.
l Stable and durable. easy to operate and maintain.
l Applicable for all kinds of working environment.
l Mainly used for tunnel, underground work, slope protection and other concrete construction.
