Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Shandong, China
-
Material ::
-
AISI 1045 Drop Forged Steel Brackets
-
Thickness::
-
10mm
-
Max load capacity::
-
1500Kgs
-
Bracket::
-
Top plate and bolt Molding In One
-
Brand Name:
-
JINGYANG
-
Wheel Diameter:
-
3-12i nch
-
MOQ:
-
100pcs
-
Color:
-
Custom color
Quick Details
-
Material:
-
Iron, POLYURETHANE
-
Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
-
Model Number:
-
MH2000
-
Warranty:
-
1year
-
Place of Origin:
-
Shandong, China
-
Material ::
-
AISI 1045 Drop Forged Steel Brackets
-
Thickness::
-
10mm
-
Max load capacity::
-
1500Kgs
-
Bracket::
-
Top plate and bolt Molding In One
-
Brand Name:
-
JINGYANG
-
Wheel Diameter:
-
3-12i nch
-
MOQ:
-
100pcs
-
Color:
-
Custom color
|

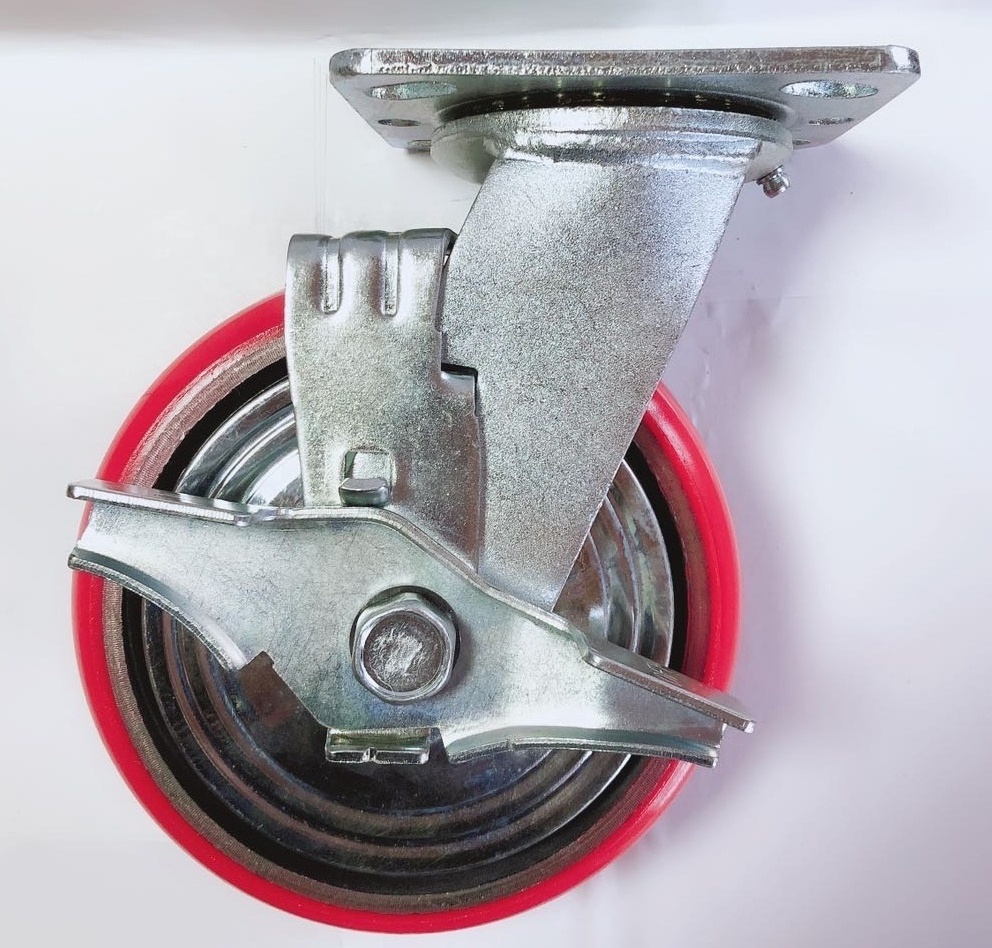

HD2000 serious moulding in one forged brackets :
Features :
1.Zinc Plated.
2.AISI 1045 Drop Forged Steel Brackets
3.Top plate and legs thickness 10 mm.
4. Top plate and bolt Molding In One.
Usage :
Large platform trucks , freight terminal trucks,drying racks. ,warehouse & factory applications, heavy food service & institutional equipment,textile applications,tool boxes,etc
|
Diameter: mm |
Width: mm |
Material
|
Bearing
|
Load: Kg |
Height: mm |
Radius: mm |
Part No.: |
|
|
4"(102) |
70 |
P.U/ Cast Iron |
6204 Ball Bearing |
1000 |
153 |
87 |
HD2040 |
|
|
5”(127) |
70 |
P.U/ Cast Iron |
6204 Ball Bearing |
1000 |
175 |
113 |
HD2050 |
|
|
6"(152) |
70 |
P.U/ Cast Iron |
6204 Ball Bearing |
1200 |
200 |
133 |
HD2060 |
|
|
8"(203) |
70 |
P.U/ Cast Iron |
6204 Ball Bearing |
1200 |
267 |
159 |
HD2070 |
|
|
10"(254) |
70 |
P.U/ Cast Iron |
6205 Ball Bearing |
1200 |
312 |
192 |
HD2010 |
|
| 12"(304) | 70 |
P.U/ Cast Iron |
6205 Ball Bearing |
1200 | 363 | 224 | HD2012 | |
|
TOP PLATE: |
|
Specification inch:(mm) |
||||||
|
|
1.Overall
: 134
×
184
|
|||||||
