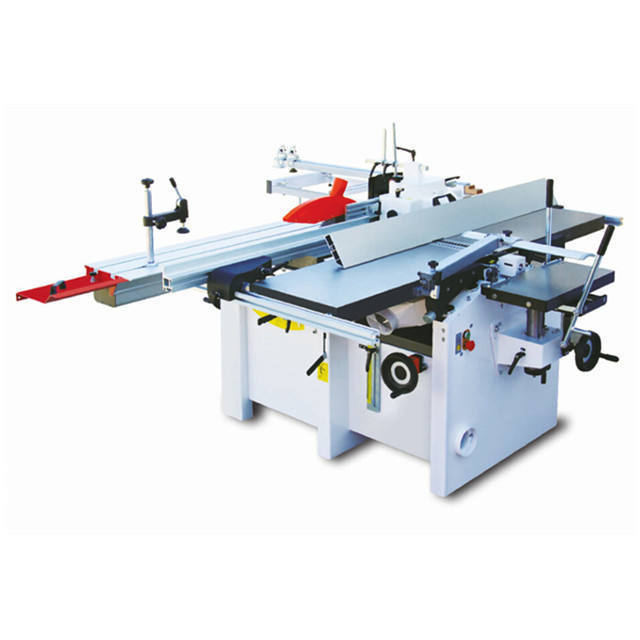

Planer,thicknesser,sawing ,mortiser-driller,profiling,moulder
The universal combined machine for D.I.Y woodworkers and craftsmen work shops,and with the best price.
The SC400 offer you the finest machine technology ,exceptional performance and a great deal of precision.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
600 KG
-
Name:
-
Woodwork Combination Machine
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Combination Woodworking Machines
-
Max. Planning width:
-
400mm
-
Max. Removal:
-
300mm
-
Motor power:
-
3kW 400V 50HZ
-
Knives specification:
-
410 * 30 *3mm
-
Total length of tables:
-
1700mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RY-C400
-
Machine Type:
-
Combination Machine, Cut-off Saw
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
600 KG
-
Name:
-
Woodwork Combination Machine
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Combination Woodworking Machines
-
Max. Planning width:
-
400mm
-
Max. Removal:
-
300mm
-
Motor power:
-
3kW 400V 50HZ
-
Knives specification:
-
410 * 30 *3mm
-
Total length of tables:
-
1700mm
Products Description
1.A perfect cut result is guaranteed by the saw unit constituted by a mighty,cast iron structure.
2.Maximum stability and rigidity in every working condition with the spindle moulder unit with a column of large dimension fully made in cast iron.
2.Maximum stability and rigidity in every working condition with the spindle moulder unit with a column of large dimension fully made in cast iron.
3.Great attention paid to the quality finishing,with solutions like the thicknesser's outfeed roller in sanded steel or the adjustable pressure on the feeding rollers depending on the workpiece type to be machined.
4.surprising quick changing from a function to the others.
4.surprising quick changing from a function to the others.
|
1.1Surface planning
|
|
|
Arbor cutting diameter:
|
Φ74mm
|
|
Arbor speed:
|
5400r/min
|
|
Knives specification:
|
410 × 30 × 3mm
|
|
Max. Planning width:
|
400mm
|
|
Total length of tables:
|
1700mm
|
|
Max. Removal:
|
3mm
|
|
Shaft stop time:
|
≤ 9sec
|
|
Fence tilting:
|
90 °/45 °
|
|
Motor power:
|
3kW 400V 50HZ
|
|
Suction collector:
|
Φ120mm
|
|
1.2 Thickness planning
|
|
|
Max. Planning width:
|
400mm
|
|
Available planning thickness:
|
6 ~ 240mm
|
|
Max. Removal:
|
3mm
|
|
Minimum working length:
|
130mm
|
|
Feeding speed:
|
7.5m/min
|
|
Suction collector:
|
Φ120mm
|
|
1.3Circular saw
|
|
|
Saw blade dia:
|
Φ305mm
|
|
Arbor diameter:
|
Φ 30mm
|
|
Blade speed:
|
3500r/min
|
|
Shaft stop time:
|
≤ 9sec
|
|
Max. Cut height (with guard)
|
At vertical position: 90mm
|
|
Max. Cross cut width:
|
2800mm
|
|
Suction collector:
|
Φ100mm
|
|
Up hood suction collector:
|
Φ40mm
|
|
Motor power:
|
2.2kW 400V 50Hz
|
|
1.4Moulder
|
|
|
Shaft diameter:
|
Φ30mm
|
|
Max. Shaft protrusion height from table:
|
115mm
|
|
Shaft stop time:
|
≤ 9sec
|
|
Useful shaft working length:
|
85mm
|
|
Tool retractable to table underside:
|
Max.Φ140mm
|
|
Max. Height of retractable tool:
|
40mm
|
|
Spindle rotation speed:
|
1750r/min or 3500r/min or 6700r/min
|
|
Cutter rotate Max. Diameter:
|
Φ 180mm
|
|
Suction pipe diameter:
|
Φ100mm
|
|
Cutter rotate Max. Diameter:
|
Φ140mm
|
|
Suction pipe diameter:
|
Φ100mm
|
|
Motor power:
|
2.2kW 400V 50Hz
|
|
Square table size (for cross cutting or tenon milling):
|
520 × 1080mm
|
|
1.5 Scorer
|
|
|
Blade specification:
|
MVF-100-24 (Φ22mm) or MVF-120-24 (Φ22mm)
|
|
Rotate speed:
|
7000r/min
|
|
1.6 Drilling
|
|
|
Drilling diameter:
|
Φ16mm
|
|
Max. Drilling depth:
|
80mm
|
|
1.7 The others
|
|
|
Machine weight:
|
755kg
|
|
Overall dimension:
|
3290 × 2500 × 1130mm
|
