- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
1500*3000mm
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Industrial Metal Cutting
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Type:
-
portable type
-
Control system:
-
Starfire Control System
-
Cutting thickness:
-
0-200mm
-
Cutting speed:
-
0-8000mm/min
-
arc torch height controller:
-
yes
-
rotary axis:
-
optional part
-
software:
-
Fastcam
-
Certification:
-
CE ISO
-
Weight:
-
150KG
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHINSAIL
-
Model Number:
-
CXP1530
-
Voltage:
-
220V/380V
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
1500*3000mm
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Industrial Metal Cutting
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Type:
-
portable type
-
Control system:
-
Starfire Control System
-
Cutting thickness:
-
0-200mm
-
Cutting speed:
-
0-8000mm/min
-
arc torch height controller:
-
yes
-
rotary axis:
-
optional part
-
software:
-
Fastcam
-
Certification:
-
CE ISO
-
Weight:
-
150KG

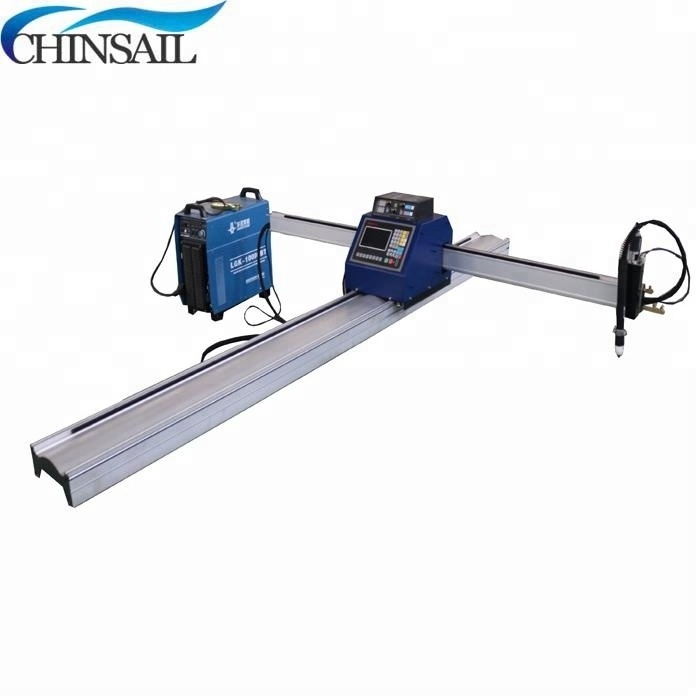

steel iron stainless steel aluminum cnc plasma kit / mini cnc plasma cutter
Contact Sun for more information,
email: info3(@)chinsailcnc.com, whatsapp/skpye:+86 180 5360 9593
| Machine pictures |
|
|
Features 1. Smart design,can be moved everywhere you need. 2. Send a flame cutting head for free, which can cut 0-200mm. 2.Stepper motor,can cut both thin and thick metal plate with fast speed and guarantee the cutting quality. 3.The CNC controller box is new design,this system is more stable when the machine working. 4.Smart cut,cut all shapes from AutoCad. 5. Control system is SF2012AH ,which is very popular in China,with large graphics library,and easy to learn to operate.This software can support English,Russian and Spanish. And the most important is it can be Expanded to 4 axis. 6. Prompt delivery, with 3-7 days,operate video for installation.
Applications of portable cnc plasma machine This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is w idely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical parameters
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| After-sale service |
|
1. Provide 2 years warranty for the whole machine. Any parts has quality problem during warranty period, We will send the replacement for free, customer only affords the shipping cost. 2. Training video and manual are sent with the machine. Customer can study the training by the detail video. Very easy to understand. 3. Provide 18 hours online guidance. If you meet any problem, please feel free to tell us by Email, Whatsapp and Skype etc. 4. Professional technical support, software update. 5. Engineer is available to service machinery overseas. 6. CHINSAIL company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.
|
