Quick Details
-
Dimension(L*W*H):
-
890mm*920mm*900mm
-
Weight (T):
-
5 T
-
Power (kW):
-
160
-
Product Name:
-
Aluminum Melting Crucible Induction Melting Furnace
-
Application:
-
Melting Metal
-
Max Temperature:
-
1200 Degrees C(2192F)
-
Melting Material:
-
Steel, Copper, Aluminum and ect
-
Capacity:
-
0.3-30 Ton
-
Structure:
-
Vertical Batch
-
Heating Rate:
-
0~140 /min
-
Rated Frequency:
-
100HZ-1000HZ
-
Working Theory:
-
Electromagnetic Induction Melting
-
Color:
-
Customzied
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HengYuan
-
Voltage:
-
220-950V
-
Dimension(L*W*H):
-
890mm*920mm*900mm
-
Weight (T):
-
5 T
-
Power (kW):
-
160
-
Product Name:
-
Aluminum Melting Crucible Induction Melting Furnace
-
Application:
-
Melting Metal
-
Max Temperature:
-
1200 Degrees C(2192F)
-
Melting Material:
-
Steel, Copper, Aluminum and ect
-
Capacity:
-
0.3-30 Ton
-
Structure:
-
Vertical Batch
-
Heating Rate:
-
0~140 /min
-
Rated Frequency:
-
100HZ-1000HZ
-
Working Theory:
-
Electromagnetic Induction Melting
-
Color:
-
Customzied

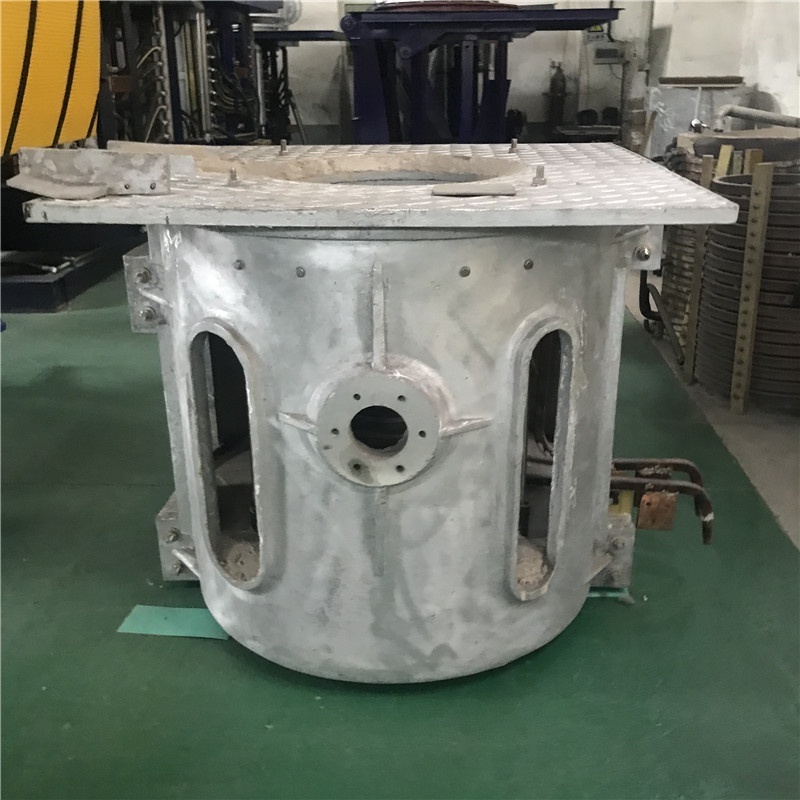

ISO Approved Hengyuan Brand Aluminum Melting Crucible Induction Melting Furnace
1.Brief introduction of aluminum melting crucible induction melting furnace
Product selling point:
Intellgent equipment, easy to operate, high stability;
High efficiency and energy consumption less than 550KWH/T;
Electronic components using well-know brands at home and abroad.
2.Characteristics of aluminum melting crucible induction melting furnace
(1)This kind of furnace has the advantages of high melting efficiency, good power saving effect, compact structure and strong overload capacity.
(2)The surrounding of the furnace is low temperature, smoke less, the working environment is good .
(3)Simple operation and reliable operation.
(4)Fast temperature heating-up, furnace temperature easy to control, high production efficiency.
3.SCR series rectifier, series resonant inverter medium frequency power supply for aluminum melting crucible induction melting furnace
Our series resonant inverter medium frequency power supply can achieve that one furnace melting and the other furnace thermal insulation refining. So that this advanced technology achieves that one set of equipment is equivalent to two sets of equipment working at the same time. And the utilization rate of power transformer is very high. According to the theoretical calculation and field test, it can save half of the transformer capacity. Because of adopting SCR series rectifier, series resonant inverter it is with high power factor and keeps over 0.98 with high order harmonic wave pollution. It is no need to add reactive power compensation device and harmonic wave control device. The current of induction coils are small and the melting time is short. It can save electricity 20%.
Advantages of this medium frequency power supply
(1)The utility model has the advantages of obvious energy-saving effect and 20% saving compared with common equipment.
(2)It is with high power factor and keeps over 0.98with high order harmonic wave pollution. It is no need to add reactive power compensation device and harmonic wave control device.
(3)It can achieve that one power supply cabinet for two furnaces. Transformer utilization rate is high.
(4)The two furnaces can cast simultaneously and also can supply continuously molten steel casting.
(5)Arbitrary power allocation, starting rate of 100%.
Main technical parameters for this
medium frequency power supply
|
Model |
Input Voltage |
Input current |
DC Voltage |
DC Current |
IF Voltage (about 10%V) |
IF Frequency |
IF Power |
|
HY-250 |
380V/ 3-phase |
408A |
500V |
500A |
1200V |
100-500HZ |
250kw |
|
HY-500 |
816A |
1000A |
500kw |
||||
|
HY-800 |
1305A |
1600A |
800kw |
||||
|
HY-1000 |
380V/ 6-phase |
816A |
1000V |
1000A |
2400V |
100-400HZ |
1000kw |
|
HY-1500 |
1220A |
1500A |
1500kw |
||||
|
HY-2000 |
1630A |
2000A |
2000kw |
||||
|
HY-2500 |
2040A |
2500A |
2500kw |
||||
|
HY-3000 |
480V/ 6-phase |
1960A |
1250V |
2400A |
2900V |
100-300HZ |
3000kw |
|
HY-3500 |
2280A |
2800A |
3500kw |
||||
|
HY-4000 |
2610A |
3200A |
4000kw |
||||
|
HY-4500 |
2940A |
3600A |
4500kw |
||||
|
HY-5000 |
575V/ 6-phase |
2720A |
1500V |
3330A |
3400V |
100-250HZ |
5000kw |
|
HY-6000 |
3260A |
4000A |
6000kw |
||||
|
HY-8000 |
4350A |
5330A |
8000kw |
||||
|
HY-10000 |
620V/ 6-phase |
5100A |
1600V |
6250A |
3600V |
100-200HZ |
10000kw |
|
HY-15000 |
7650A |
9370A |
15000kw |
4.FAQ---Aluminum melting crucible induction melting furnace
(1). A: Our workers are not professional on the
aluminum melting crucible induction melting furnace
, how can
we
solve that?
B: Don't worry, when the induction furnaces arrive at the clients' plant, our engineer will go
and assist in installation, commission, and training until the workers can operate by themselves.
(2). A: Which kind of power supply do you supply? Electricity or gas?
B: The power supply we provide is electricity.
(3). A: What about your package for
aluminum melting crucible induction melting furnace
? If damages happen,
how do you solve?
B: We take container loading, wire fixing. If damages occur, we will send the spare parts for
you.
(4). A: You are a green hand on Alibaba, just two years, how can I trust your company and machine?
B: Our factory have been in induction equipment, induction furnace and product parts for
around 25 years, just entering Alibaba for ads. And our machine have exported to Fast Asia,
South Asia, the middle East Asia, Africa etc. Areas and have a good feedback with no
complaints.
(5). A: Is it all right to make customer's own brand name?
B: Sure, with your authorization of brand. We accept OEM service.
(6). A: How do you control the quality?
B: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.
5. Services for aluminum melting crucible induction melting furnace
Pre-sale:
Professional introduction and suggestion on raw material, machine selection, workshop condition, feasibility analysis, and etc;
Reasonable recommendation;
24 hours on-line service;
Welcome to visit our factory anytime, if you need, we can make invitation card for you.
After-sale:
Engineer available to help with installation and test the machine overseas if needed;
Warranty one year after delivery;
Training support to the operator until they are satisfied;
Recall clients regularly, get feedback in time, keep well communication with each other.
6.About our factory
Gongyi Hengyuan industry CO., LTD. is established in 2008, we are located in Henan Province, China. We are specialized in offering the followings:
(1)Hot rolling mill
, we can offer whole project, such as factory design, rolling mill manufacturing, cooling bed, package system and so on;
(2)Aluminum melting crucible induction melting furnace.
Our goods sold to Malaysia, Vietnam, South Africa and so on. Our factory has rich experience and prior quality with reasonable price, and we really care about our every customer.
