Quick Details
-
Weight (KG):
-
1800
-
Voltage:
-
380V, 380V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhongchuang
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product Name:
-

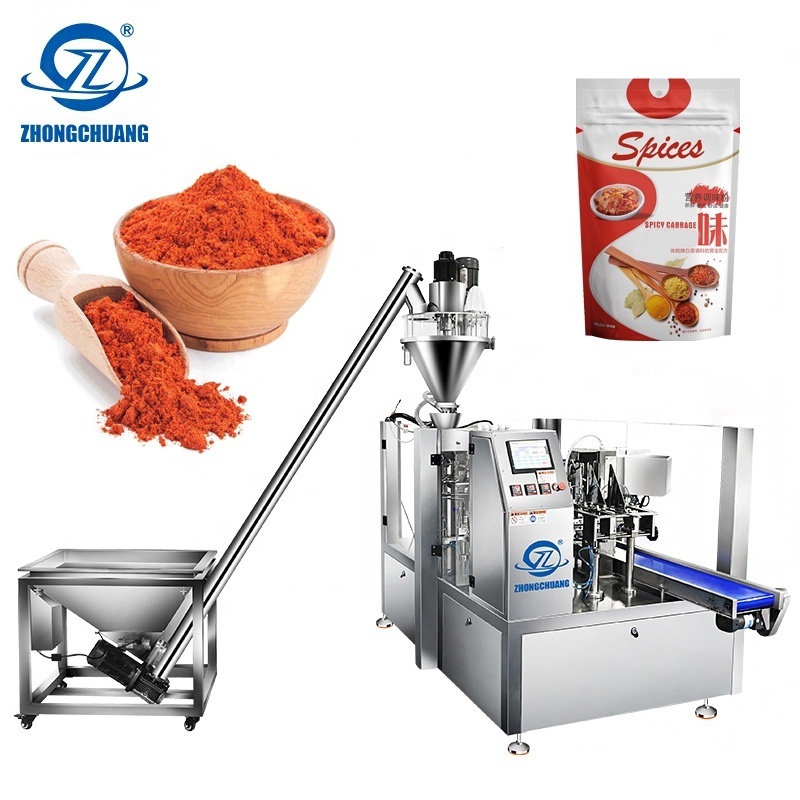

Rotary powder doypack packing machine
-
Feeding System:
-
According to packing material
-
Machine Surface material:
-
#304-Stainless steel
-
Gross Weight:
-
1800KG
-
Station:
-
8 working stations
-
Packing Speed:
-
16-60 bags /mins
-
Packing Bag Size:
-
"L: 100-350mm W : 60-200mm"
-
Accuracy:
-
±1g (≤100g) / ± 1%( >100g) according to material
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, Bag-feeding
-
Packaging Type:
-
Stand-up Pouch, Bags, Pouch, Stand-up pouch, Zipper Bag, Film, M pouch etc
-
Packaging Material:
-
Plastic, Wood
-
Weight (KG):
-
1800
-
Voltage:
-
380V, 380V 50/60hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zhongchuang
-
Dimension(L*W*H):
-
4000*2000*2100mm
-
Product Name:
-
Rotary powder doypack packing machine
-
Feeding System:
-
According to packing material
-
Machine Surface material:
-
#304-Stainless steel
-
Gross Weight:
-
1800KG
-
Station:
-
8 working stations
-
Packing Speed:
-
16-60 bags /mins
-
Packing Bag Size:
-
"L: 100-350mm W : 60-200mm"
-
Accuracy:
-
±1g (≤100g) / ± 1%( >100g) according to material
Product Paramenters
|
Item NO.
|
ZC-L200/250
|
|
|
|
|||
|
Dimensions
|
L4000mm×W2000mm×H2100mm
|
|
|
|
|||
|
Packing Speed
|
16-60 Bags/min (depending on products character and filling volume)
|
|
|
|
|||
|
Packing Bag Size
|
L: 100-350mm
W : 60-200mm/80-250mm |
|
|
|
|||
|
Weight
|
1800KG
|
|
|
|
|||
|
Air Compressed air consemed
|
≤0.6m³ / min
|
|
|
|
|||
|
Accuracy
|
±1g (≤100g) / ± 1%( >100g) according to material
|
|
|
|
|||
|
Application
|
Suitable for high measuring accuracy,and brittle material packing,such as soy milk powder,flour,walnut,milk-tea powder etc.
|
|
|
|
|||
|
|

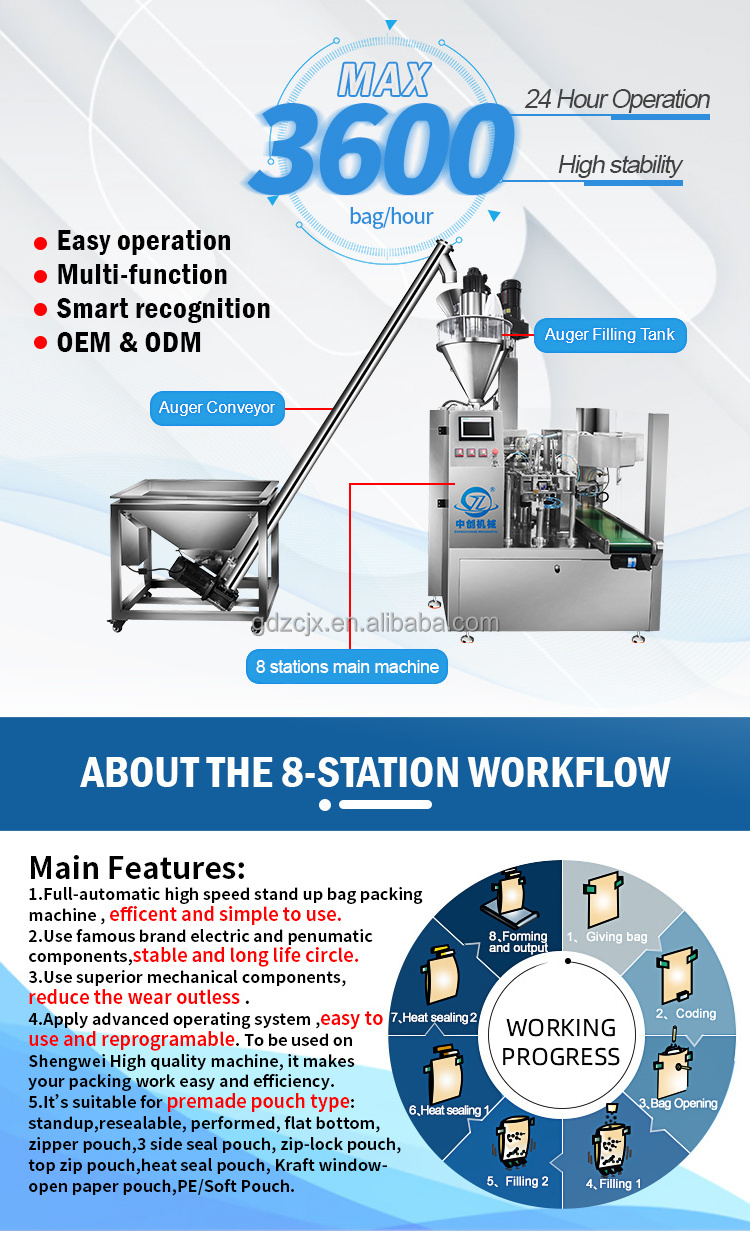

1.Bag feeding
2.Coding 3.Opening 4.Filling A 5.Filling B 6.Heat sealing A 7.Heat sealing B 8.Forming and output |
|
|
|
|||
|
|
1.According to customer demand for customized, to recommend the appropriate products to customers.
|
|
|
|
|||
|
|
2.Storage racks devices which can Satisfy the products short stop ,which can keep the production line work continuously.
|
|
|
|
|||
|
|
3.Good service,If you have any questions, you can communicate by telephone \ video.
|
|
|
|
|||
