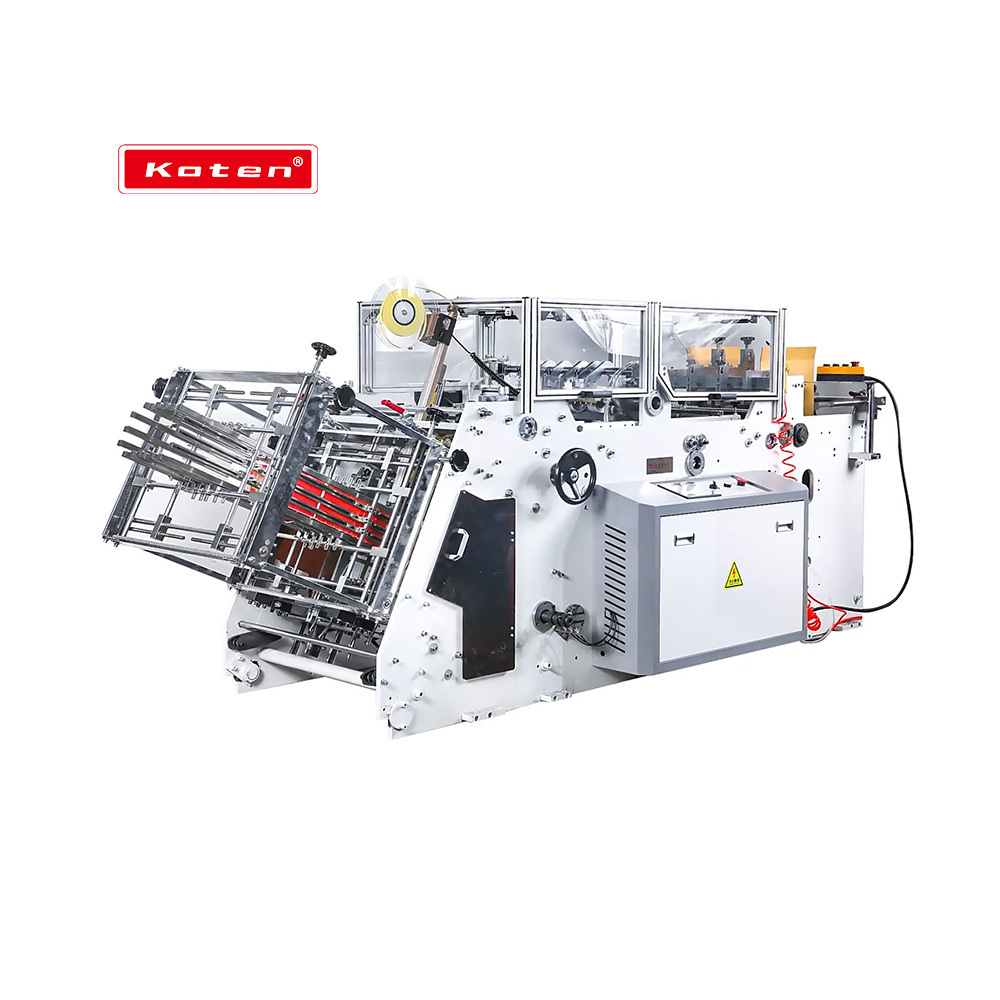

The paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts
micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape
counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise
positioning,smooth running,safety and reliability operation.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
2000 kg
-
Warranty of core components:
-
1YEAR
-
Suitable Material:
-
200-600gsm
-
Glue:
-
White cold glue
-
Feeder:
-
Automatic
-
Double Feeder:
-
Option
Quick Details
-
Production Capacity:
-
150 pcs/min
-
Place of Origin:
-
China
-
Brand Name:
-
Koten
-
Weight:
-
2000 kg
-
Warranty of core components:
-
1YEAR
-
Suitable Material:
-
200-600gsm
-
Glue:
-
White cold glue
-
Feeder:
-
Automatic
-
Double Feeder:
-
Option
Product Description
Details Images
Specification
|
Type
|
HB-800
|
HB-1200
|
|
|
Production capacity:
|
50-180 pcs/min
|
80-320pcs/min
|
|
|
Suitable Material:
|
200-600gsm card paper,PE coated paper, kraft paper, corrugated paper
|
|
|
|
Paper open length:
|
L100-450mm,degree:5°-40°
|
|
|
|
Paper open width:
|
B100-600mm Height H15-200mm
|
B100-400mm Height H15-200mm
|
|
|
Total Power:
|
5KW
|
6.25KW
|
|
|
Weight:
|
1.7T
|
2.4T
|
|
|
Dimension:
|
3600 x1400 x 1700 mm
|
3600 x 1850 x 1700 mm
|
|
