● Low noise level,suitable for quietness place and cities work.
● Full-closed bracket protects the main-body.
- Product Details
- {{item.text}}
Quick Details
-
Condition:
-
New, 100%new
-
Applicable Industries:
-
All
-
Weight:
-
556 kg
-
Suitable Excavator(ton):
-
6-9
-
Core Components:
-
Main body, Chisel, Piston, Bracket
-
Application:
-
Excavator
-
Type:
-
Box
-
Cylinder:
-
20CrMo
-
Certification:
-
CE ISO
-
Rod Diameter:
-
75
-
Applicable Carrier:
-
6-9
-
Valve Ass'y Position:
-
internal
-
Color:
-
Yellow or as customer's request
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Pterosaur
-
Model Number:
-

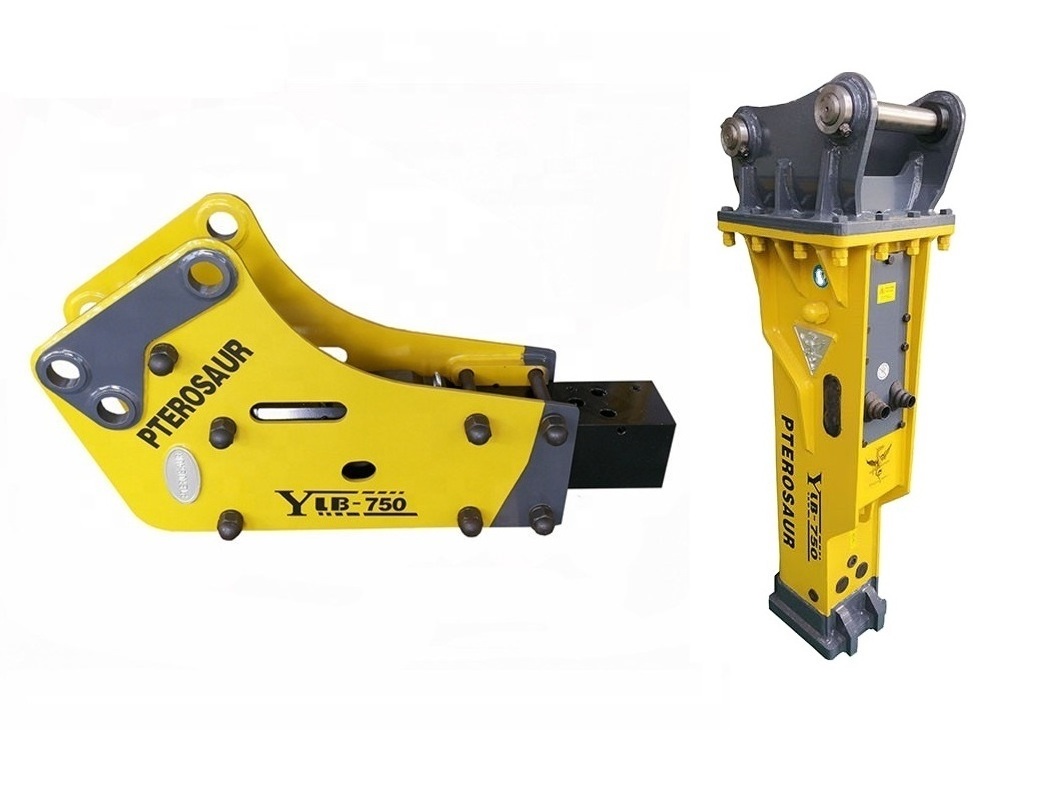

YLB 750
-
Condition:
-
New, 100%new
-
Applicable Industries:
-
All
-
Weight:
-
556 kg
-
Suitable Excavator(ton):
-
6-9
-
Core Components:
-
Main body, Chisel, Piston, Bracket
-
Application:
-
Excavator
-
Type:
-
Box
-
Cylinder:
-
20CrMo
-
Certification:
-
CE ISO
-
Rod Diameter:
-
75
-
Applicable Carrier:
-
6-9
-
Valve Ass'y Position:
-
internal
-
Color:
-
Yellow or as customer's request
Product Description
|
Description
|
Operating Weight
|
Required Oil Flow
|
Impact Rate
|
Working Pressure
|
Rod Diameter
|
Applicable Carrier
|
|
Unit
|
KG
|
L/min
|
bmp
|
Kg/cm²
|
mm
|
ton
|
|
YLB530
|
130
|
25-50
|
550-1000
|
90-120
|
53
|
2.5-4.5
|
|
YLB680
|
300
|
40-70
|
500-800
|
100-140
|
68
|
4-7
|
|
YLB750
|
396
|
50-90
|
450-800
|
120-150
|
75
|
6-9
|
|
YLB1000
|
780
|
80-120
|
350-700
|
160-180
|
100
|
11-16
|
|
YLB1350
|
1650
|
100-150
|
350-600
|
180-210
|
135
|
18-21
|
|
YLB1400
|
1750
|
130-170
|
350-500
|
190-220
|
140
|
20-26
|
|
YLB1550
|
2600
|
170-220
|
300-450
|
220-240
|
155
|
28-35
|
|
YLB1650
|
3200
|
200-260
|
250-400
|
230-250
|
165
|
30-40
|
|
YLB1750
|
3750
|
210-260
|
250-350
|
240-260
|
175
|
40-55
|
|
YLB2100
|
6800
|
400-500
|
300-400
|
170-190
|
210
|
50-90
|
The main components of our Pterosaur crusher
1. Through bolts-42Crmo: Long service life of bolts through the use of this new material
2. Back Head-20CrMo: It is experimented by our desiger many times to make the internal organization tighter and increasing the hydraulic breaker wear-resistance.
3. Front Head-20CrMo: Our material is used by the best quality standard in breaker market,it
can serve the breaker to work with longer using life.
4. Control Valve: We adopt production process by grinding machine to improve the size presicion, position accuracy & coordination accuracy.
5. Cylinder Body- 20CrMo: Our material is used by the best quality standard in breaker market,its hardness can reach 61.8HRC; it is more resistant to deformation、 ripping and scratching than other domestic breaker.
6. Piston-20Cr2Ni4: Our piston quality is controlled strictly by desiger; it has good hardness of 61.8HRC; it is more resistant to deformation、 ripping and scratching than other domestic breaker; it can also reduce scratch problem with grinding process.
7. Chisel-42Crmo: The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: moil, blunt,flat, conical point.
8.Main Body: Front head, cylinder and back head composed the main body,each part is in best performance.
9.Seal Kit: We adopt both Parker and NOK seal kit which are most famous brand in the business line.
Remark:
We are speciallied in making breakers, our engineer is come from Korean with professional experience for many years,each quality of our Pterosaur crusher is strictly controlled including the raw material, heat treatments, size and production technology, etc.
Why choose us
1. Our advantage
Application Field
☞ Mining:Mining,secondary breaking.
☞ Metallurgy:Clearing slag,demolition of furance and foundation.
☞ Road:Repairing,breaking,foundation work.
☞ Raliway:Tunneling demolition of bridge.
☞ Construction:Demolition of building and reinforced concrete.
☞ Ship reparing:Clearing alam and rust from the hull.
☞ Others:Breaking frozen mud.
2.Packing and delivery
1.Packing:
①Inner is stretch film
②Outside is export wooden case
③ As per customer's request
3.
After sales feedback
4
.
Company information
Certification
Exhibition Show
Our Customers
Our Service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory..
After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Are you a manufacturer?
Yes, our factory was established in 2004
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time?
3-7 working days after receiving the payment.
5. After-sale Service
12 months warranty
for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.
6. Impact Test
Every hydraulic breaker will do impact test before shipment.
