Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINHE
-
Voltage:
-
Country Voltage
-
Dimension(L*W*H):
-
8900*1550*1150
-
Power (kW):
-
75
-
Weight:
-
4500 KG
-
Name:
-
PVC PE single wall electric corrugated hose pipe making machine
-
Raw material:
-
PP PE PVC
-
Usage:
-
Wide Usage
-
Type:
-
Excruder
-
Keywords:
-
PVC Pipe Extruder Line
-
Product name:
-
plastic tube making machine fully atuomatic pipe making machinery
-
Inverter:
-
ABB Brand
-
Motor:
-
SIEMENS Brand
-
Extruder:
-
twin screw
-
After Warranty Service:
-
Video technical support
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
22:1
-
Screw Speed (rpm):
-
155 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINHE
-
Voltage:
-
Country Voltage
-
Dimension(L*W*H):
-
8900*1550*1150
-
Power (kW):
-
75
-
Weight:
-
4500 KG
-
Name:
-
PVC PE single wall electric corrugated hose pipe making machine
-
Raw material:
-
PP PE PVC
-
Usage:
-
Wide Usage
-
Type:
-
Excruder
-
Keywords:
-
PVC Pipe Extruder Line
-
Product name:
-
plastic tube making machine fully atuomatic pipe making machinery
-
Inverter:
-
ABB Brand
-
Motor:
-
SIEMENS Brand
-
Extruder:
-
twin screw
-
After Warranty Service:
-
Video technical support
Video Show
Eager to detailed videos or pictures ,click here.
https://siteadmin.alibaba.com/preview.htm?spm=a2700.siteadmin.0.0.3673102a1t1fsG&pageId=5124263647&type=pc
Overview

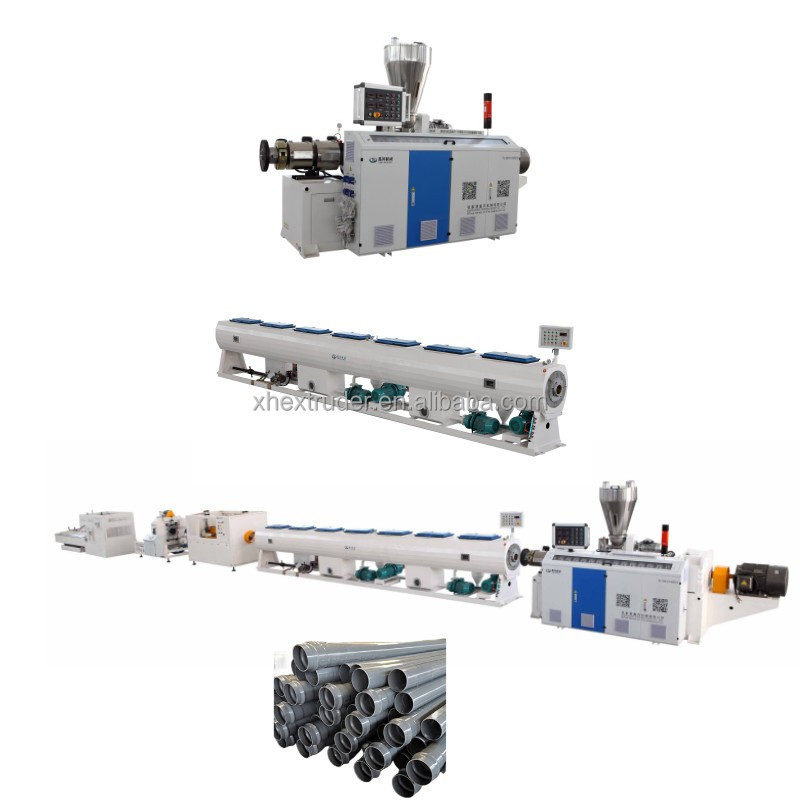

Plastic PVC UPVC CPVC Pipe Making Machine
1.PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city
drainage and Sewage and constructional plumbing cable laying etc. The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine.
2.Producing pipe diameter range: Φ160mm-Φ400mm. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer ,water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing.
3.Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
3.Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
Product parameters
|
Model
|
PVCG-2-50
|
PVCG-4-25
|
PVCG-110
|
PVCG-160
|
PVCG-250
|
PVCG-315
|
PVCG-400
|
PVCG-630
|
|
Extruder
|
SJZ51/105
|
SJZ65/132
|
SJZ51/105
|
SJZ65/132
|
SJZ65/132
|
SJZ80/156
|
SJZ80/156
|
SJZ92/188
|
|
PIPE Range
|
ø16-ø50
|
ø16-ø25
|
ø20-ø110
|
ø50-ø160
|
ø50-ø250
|
ø110-ø315
|
ø160-ø400
|
ø315-ø630
|
|
Total Length
|
17000
|
18000
|
17000
|
18000
|
20000
|
20500
|
28000
|
30000
|
Get further detailed parameters,click here.
https://siteadmin.alibaba.com/preview.htm?spm=a2700.siteadmin.0.0.3673102a1t1fsG&pageId=5124263647&type=pc
Details Images
Production process
Production process: raw materials + additives preparation → mixing → conveying and feeding → forced feeding → Cone-type twin-screw extruder → extrusion mold → sizing sleeve → spray vacuum setting box → immersion cooling water tank → ink printer → track tractor → knife lift cutting machine → pipe stacking rack → Finished product testing and packaging
Final Product
