Quick Details
-
Model Number:
-
PXC3
-
Length:
-
2mm
-
Fire Rating:
-
UL94V-0
-
Size:
-
Customized
-
Color:
-
Gray.White.Black.Blue
-
Advantage:
-
Good Insulation
-
Usage:
-
Organize the wires
-
Feature:
-
Eco-Friendly
-
Material:
-
PVC
-
Packing:
-
Customized Packing
-
Certification:
-
CCS,CE
Quick Details
-
Brand Name:
-
YINGFA
-
Type:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
PXC3
-
Length:
-
2mm
-
Fire Rating:
-
UL94V-0
-
Size:
-
Customized
-
Color:
-
Gray.White.Black.Blue
-
Advantage:
-
Good Insulation
-
Usage:
-
Organize the wires
-
Feature:
-
Eco-Friendly
-
Material:
-
PVC
-
Packing:
-
Customized Packing
-
Certification:
-
CCS,CE

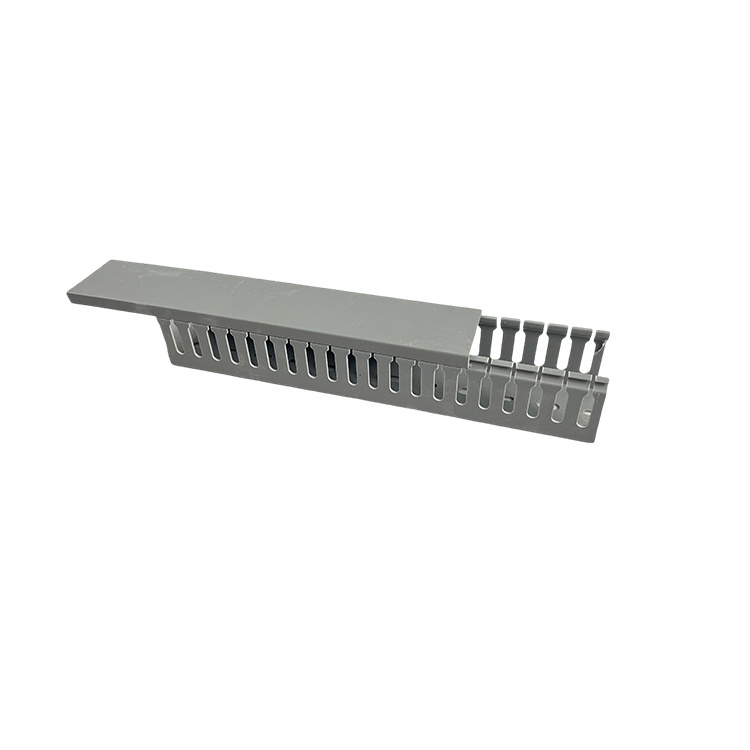

Eco-friendly PVC slotted distribution duct plastic cable trunking
1. Material: halogen-free material made of hard PVC, environmentally friendly, pollution-free, non-toxic
lead.
2. Fire rating: 94V-0, halogen, fire resistance without saliva, fire resistance and insulation are very high.
3. Product structure: composed from the bottom of the can lid. The bottom slot has exit holes on both sides
.
4. Color: gray (RAL 7030), white (RAL 9003), blue (RAL5005), black.
5. Working temperature: -40°C to constant high temperature 70°C.
6. How to use: Put the end of the fixed tank and enter the tank with the pipeline, and cover the tank.
Features:
1. Flip type slot cover design combined with the water tank will not fall off forever, and the joint is smooth,
will not cut the wires and scrapes near the hand.
2. It has a fault within 70C of slot difference, no deformation, discoloration, time-saving and convenient
assembly
.
3. Low water outlet. Combines easy disassembly with easy wiring.
More options: Other lengths can be customized for on-demand production.
Type | H×W(mm) | Contained wire(2.0²) | Length | |||
PXC3-2015 | 20×15 | 5-10PCS | 2m | |||
PXC3-2525 | 25×25 | 10-20PCS | 2m | |||
PXC3-3025 | 30×25 | 15-25PCS | 2m | |||
PXC3-3030 | 20-40PCS | 2m | ||||
PXC3-3035 | 30×35 | 30-45PCS | 2m | |||
PXC3-3040 | 30×40 | 40-55PCS | 2m | |||
PXC3-3525 | 35×25 | 30-45PCS | 2m | |||
PXC3-3525 | 35×35 | 35-50PCS | 2m | |||
PXC3-3550 | 35×50 | 50-60PCS | 2m | |||
PXC3-4025 | 40×25 | 20-25PCS | 2m | |||
PXC3-4030 | 35-45PCS | 2m | ||||
PXC3-40100 | 40×100 | 140-160PCS | 2m | |||
PXC3-4433 | 44×33 | 25-45PCS | 2m | |||
PXC3-4525 | 45×25 | 20-25PCS | 2m | |||
PXC3-4533 | 45×33 | 40-55PCS | 2m | |||
PXC3-4545 | 45×45 | 60-70PCS | 2m | |||
PXC3-4565 | 45×65 | 110-120PCS | 2m | |||
PXC3-5020 | 50×20 | 20-25PCS | 2m | |||
PXC3-5025 | 50×25 | 20-30PCS | 2m | |||
PXC3-5030 | 50×30 | 25-40PCS | 2m | |||
PXC3-5035 | 50×35 | 40-60PCS | 2m | |||
PXC3-5040 | 50×40 | 60-70PCS | 2m | |||
PXC3-5045 | 50×45 | 70-80PCS | 2m | |||
PXC3-5050 | 50×50 | 80-90PCS | 2m | |||
PXC3-5055 | 50×55 | 80-95PCS | 2m | |||
PXC3-5060 | 50×60 | 100-120PCS | 2m | |||
PXC3-5080 | 50×80 | 160-180PCS | 2m | |||
PXC3-50100 | 50×100 | 200-2503PCS | 2m | |||
PXC3-6025 | 60×25 | 40-50PCS | 2m | |||
PXC3-6033 | 60×33 | 60-80PCS | 2m | |||
PXC3-6035 | 60×35 | 90-105PCS | 2m | |||
PXC3-6040 | 60×40 | 100-115PCS | 2m | |||
PXC3-6045 | 60×45 | 110-125PCS | 2m | |||
PXC3-6050 | 60×50 | 115-130PCS | 2m | |||
PXC3-6060 | 60×60 | 120-135PCS | 2m | |||
PXC3-6080 | 60×80 | 180-210PCS | 2m | |||
PXC3-60100 | 60×100 | 240-290PCS | 2m | |||
PXC3-6525 | 65×25 | 40-50PCS | 2m | |||
PXC3-6533 | 65×33 | 60-80PCS | 2m | |||
PXC3-6545 | 65×45 | 110-115PCS | 2m | |||
PXC3-6565 | 65×65 | 125-140PCS | 2m | |||
PXC3-8025 | 80×25 | 110-120PCS | 2m | |||
PXC3-8035 | 80×35 | 110-130PCS | 2m | |||
PXC3-8040 | 80×40 | 140-160PCS | 2m | |||
PXC3-8045 | 80×45 | 145-165PCS | 2m | |||
PXC3-8050 | 80×50 | 160-180PCS | 2m | |||
PXC3-8055 | 80×55 | 180-210PCS | 2m | |||
PXC3-8060 | 80×60 | 180-210PCS | 2m | |||
PXC3-8080 | 80×80 | 240-290PCS | 2m | |||
PXC3-80100 | 80×100 | 260-350PCS | 2m | |||
PXC3-80120 | 80×120 | 280-380PCS | 2m | |||
PXC3-80140 | 80×140 | 350-450PCS | 2m | |||
PXC3-10033 | 100×33 | 130-165PCS | 2m | |||
PXC3-10040 | 100×40 | 130-175PCS | 2m | |||
PXC3-10048 | 100×48 | 210-240PCS | 2m | |||
PXC3-10050 | 100×50 | 220-250PCS | 2m | |||
PXC3-10060 | 100×60 | 240-290PCS | 2m | |||
PXC3-10080 | 100×80 | 260-360PCS | 2m | |||
PXC3-100100 | 100×100 | 300-400PCS | 2m | |||
PXC3-130100 | 130×100 | 350-450PCS | 2m | |||
PXC3-150100 | 150×100 | 450-700PCS | 2m |
