Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenveo
-
Model Number:
-
TEVO-VHD20N
-
Product name:
-

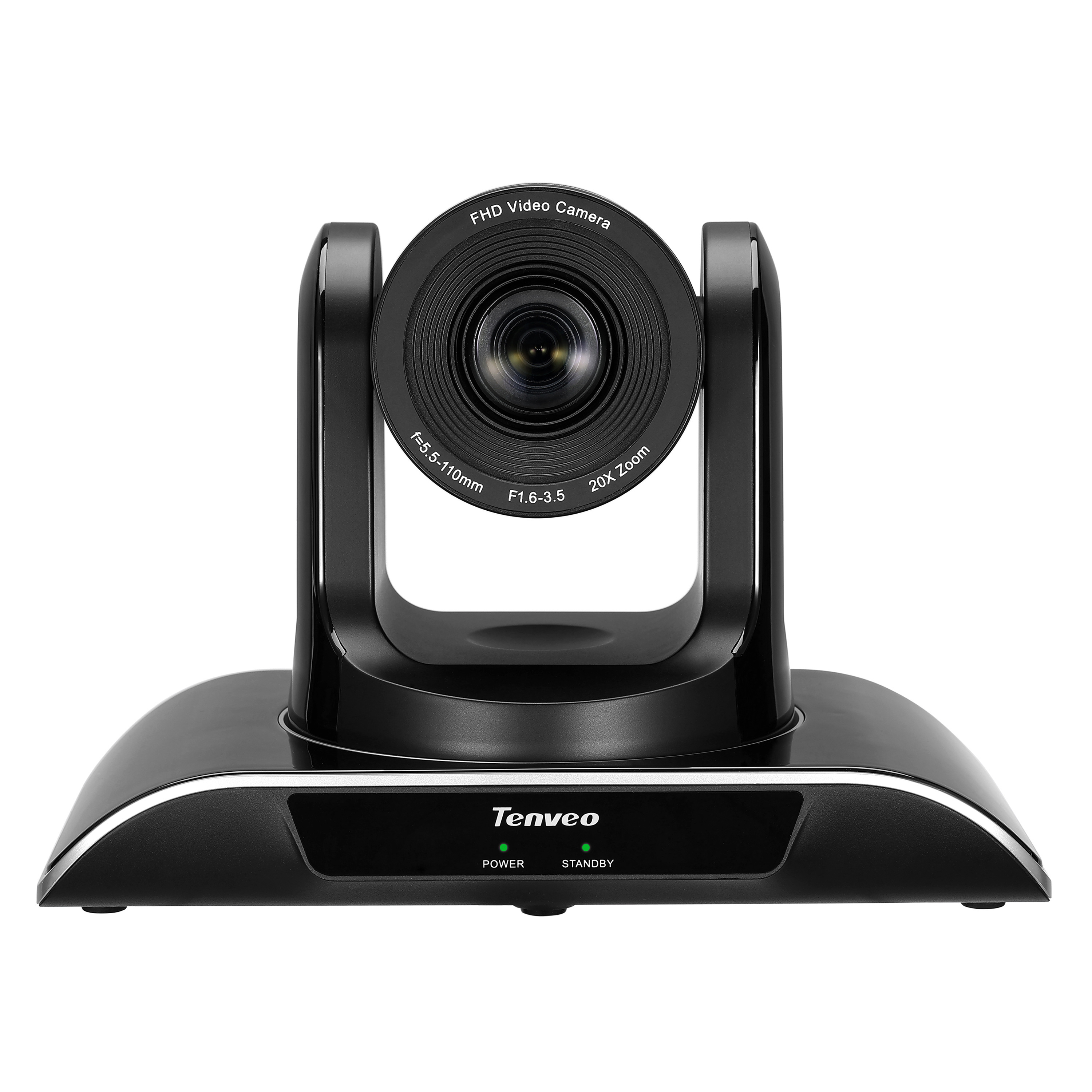

20x Optical Zoom 1080P H.265 PTZ HD Video Conference Camera
-
Keyword:
-
hd video camera for conference
-
Image Sensor:
-
1/3 inch HD CMOS
-
Effective pixel:
-
2.38 mega pixel(16:9)
-
Orizontal Resolution:
-
1080P60/50/30/25, 1080I60/50/30/25, 720P 60/50
-
Signal standard:
-
NTSC/PAL
-
Zoom:
-
20x zoom
-
SNR ratio:
-
≥50dB
-
Certificate:
-
CE ROHS FCC
Quick Details
-
Special Features:
-
PAN-TILT, hd video camera for conference
-
Function:
-
PAN-TILT, RESET, Built-in Mic
-
Customized support:
-
Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenveo
-
Model Number:
-
TEVO-VHD20N
-
Product name:
-
20x Optical Zoom 1080P H.265 PTZ HD Video Conference Camera
-
Keyword:
-
hd video camera for conference
-
Image Sensor:
-
1/3 inch HD CMOS
-
Effective pixel:
-
2.38 mega pixel(16:9)
-
Orizontal Resolution:
-
1080P60/50/30/25, 1080I60/50/30/25, 720P 60/50
-
Signal standard:
-
NTSC/PAL
-
Zoom:
-
20x zoom
-
SNR ratio:
-
≥50dB
-
Certificate:
-
CE ROHS FCC
Products Description
Details Images
More details
Product Paramenters
|
Product No.
|
TEVO-VHD20N
|
|
Image Sensor
|
1/3 inch SONY HD CMOS
|
|
Effective pixel
|
2.38 mega pixel (16:9)
|
|
Horizontal Resolution
|
1080p 30/1080I 60
|
|
Signal standard
|
NTSC/P AL
|
|
Zoom
|
10x optical zoom
|
|
Focal length
|
F=5.0mm(wide)-50.0(tele)
|
|
Horizontal Angle
|
Near-end 47°~Far-end 5.3°
|
|
Gain control
|
Auto/manual
|
|
Focus
|
Auto/manual
|
|
SNR ratio
|
≥50dB
|
|
Wide dynamic
|
D-WDR
|
|
Shutter speed
|
8to1/ 10000s(auto)
|
|
Preset position
|
IR remote control supports 9 presets
PELCO Protocol supports 256 presets |
|
Pan/Tilt movement range
|
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
|
|
Control terminal
|
RS-232, RS485
|
|
Control Protocol
|
VISCA, PELCO-D, PELCO-P (RS-232, RS485)
|
|
Video output
|
USB2.0&HDMI&SDI RJ45 Mic in
|
|
Video Compression Format
|
YUV, MJPEG, H.264
|
|
Noise Reduction
|
2D/3D
|
|
Baud rate
|
2400/4800/9600/19200bps
|
|
Decoder
|
Built-in
|
|
Address set
|
1~256
|
|
Installation
|
Support desktop, Tripod, Wall mount and Ceiling mount
|
|
Power supply
|
DC12 V/ 2A
|
