Quick Details
-
Brand Name:
-
UNICON VISION
-
Model Number:
-
UN-VC01
-
Product name:
-
Video Conference System Camera
-
Lens:
-
10X ZOOM Lens
-
Resolution:
-
4 Megapixels
-
Audio:
-
Two way voice conversation
-
Pan:
-
Pan: 355 degree
-
Tilt:
-
-30~90 degree
-
RS485:
-
Support
-
Software:
-
Skype, GoToMeeting, Micro-soft Teams, Zoom, Fastmeeting, etc.
-
Warranty:
-
One Year
-
Infrared Remote Control:
-
Support
Quick Details
-
Type:
-
Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNICON VISION
-
Model Number:
-
UN-VC01
-
Product name:
-
Video Conference System Camera
-
Lens:
-
10X ZOOM Lens
-
Resolution:
-
4 Megapixels
-
Audio:
-
Two way voice conversation
-
Pan:
-
Pan: 355 degree
-
Tilt:
-
-30~90 degree
-
RS485:
-
Support
-
Software:
-
Skype, GoToMeeting, Micro-soft Teams, Zoom, Fastmeeting, etc.
-
Warranty:
-
One Year
-
Infrared Remote Control:
-
Support

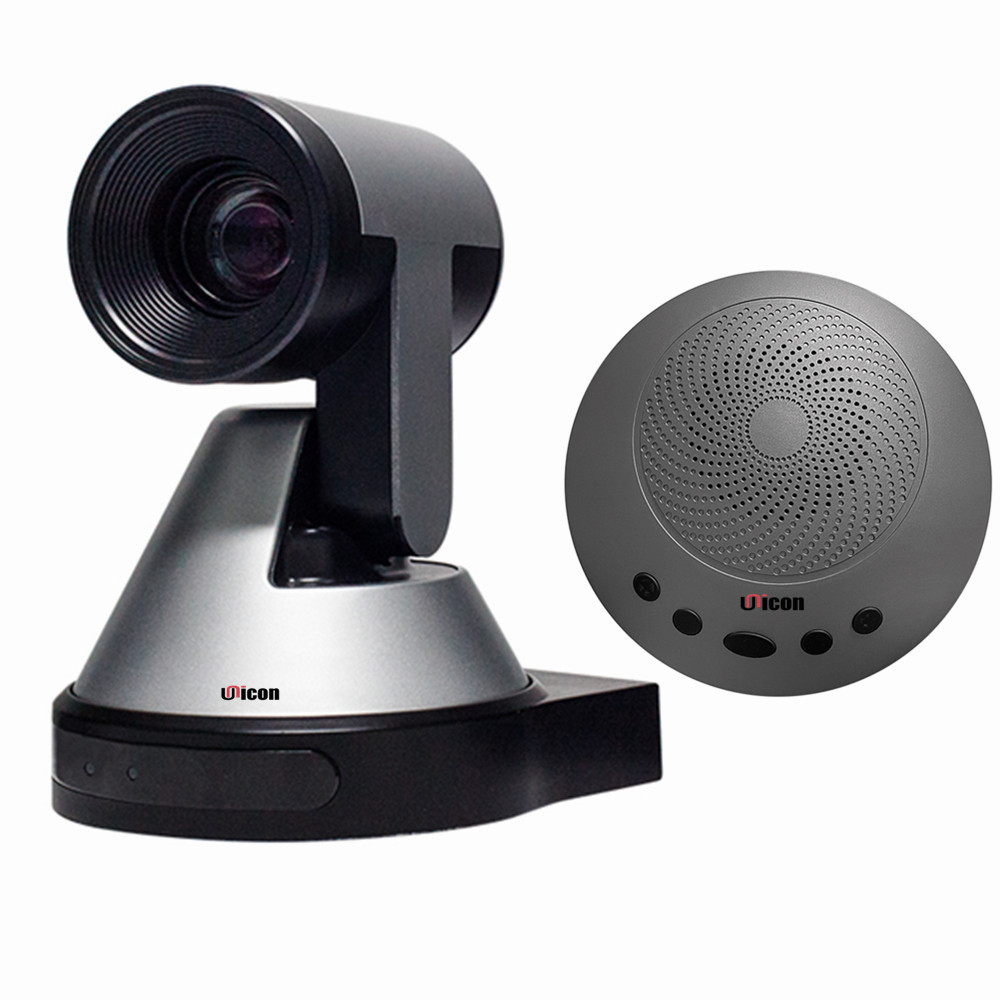

360 Degree PTZ Rotation Noise Reduction 10X Zoom 4MP HD Video Conference Camera System with Microphones and Speakers
- USB2. 0 interface, drive free, plug and play
- Support software such as haoshitong, Cisco, vidyo, Skype, WebEx, etc
- Power off, memory, automatic recovery
- S upport hoisting, floor and wall installation
- 80 degree super wide angle, with full HD lens, imaging without distortion
- Stable operation and low noise
- Support the automatic calibration function of preset position and run without deviation for a long time
- It supports omni-directional remote control reception, which is not limited by the installation position
- Support the automatic identification function of control protocol, and users do not need to set it
- It supports 4X 10x Optical Zoom function, and the visual distance can reach 50m
- Support wide dynamic function, and the use environment is not affected by backlight
- Support one click image flipping function
- It supports proportional speed change function, which is convenient to quickly move to the specified target
|
Camera |
|
|
Sensor |
T31X+4335 |
|
Effective Pixels |
4MP |
|
Lens focal length |
2.8-12mm |
|
Optical zoom |
4X ZOOM |
|
View angle |
Wide /D:67.6° H:64.8° V:41.2°
|
|
Lens aperture |
F1.8~2.8 |
|
Focus range |
0.5M~Infinity |
|
Focusing method |
automatic / manual |
|
Wide dynamic |
Off/support digital wide dynamic |
|
External interface |
|
|
Video output |
USB2.0 |
|
Power connector |
DC12V 2.0 interface |
|
Control interface 1 |
RS232 (loop through) |
|
Control interface 2 |
RS485 (loop through) |
|
PTZ parameters |
|
|
Control protocol |
PELCOD-D, PELCOD-P automatic recognition |
|
Baud rate |
1200,2400,4800,9600 |
|
Horizontal rotation range |
0~355° |
|
Horizontal rotation speed |
0.1°~100° |
|
Vertical rotation range |
-30°~+90° |
|
Vertical rotation speed |
0.1°~50° |
|
Proportional speed |
Speed and focal length automatically match |
|
Mechanical zero calibration |
Supprts |
|
OSD characters |
Supprts |
|
Number of preset positions |
255 |
|
Remote control distance |
Omni-directional receiving, effective control distance <10M |
|
Power supply |
DC12V(2A) |
|
Power consumption |
10W |
