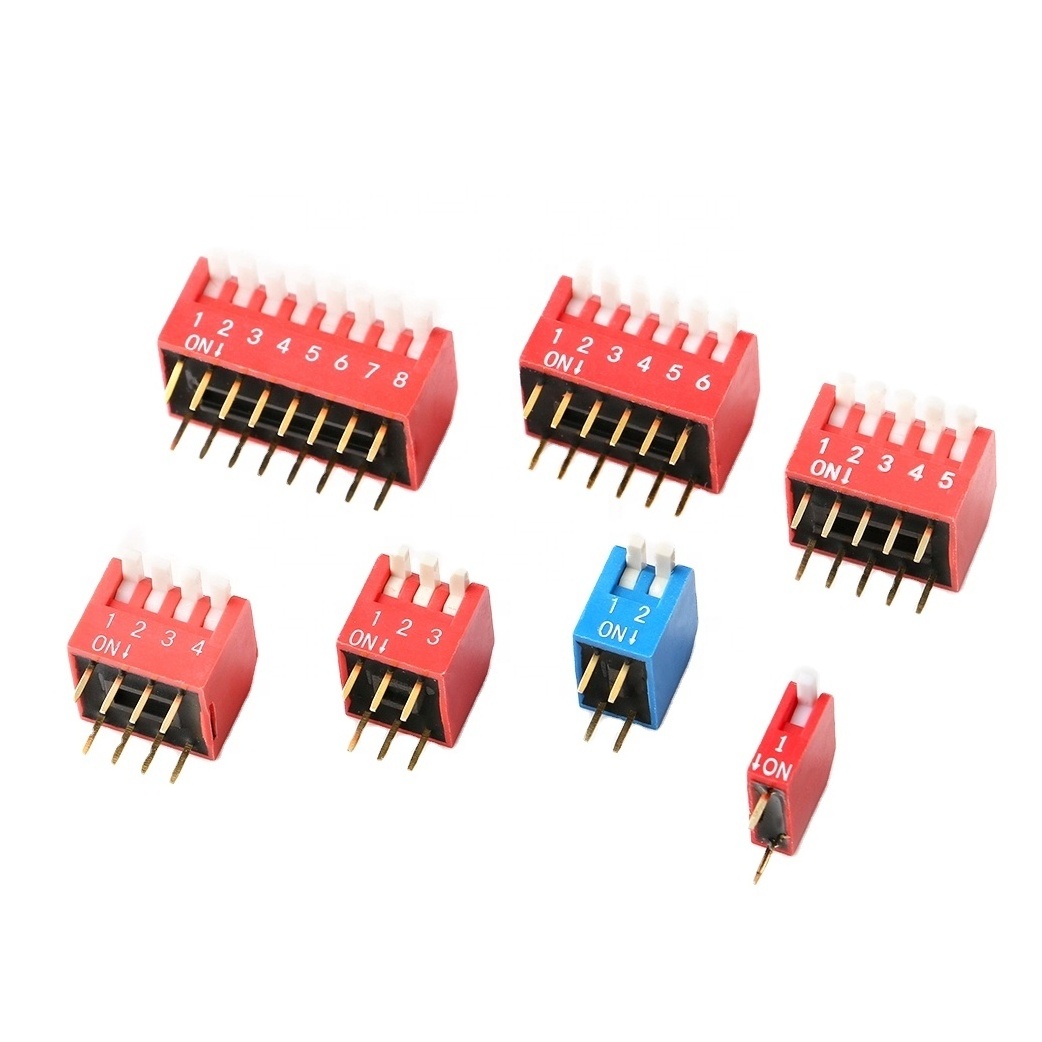

1-12 Position Insert Hole Blue/Red Housing PCB Dip Switch 2.54 mm Pitch Dip Switch Smd 2.54 Slide Dip Switch

1-12 Position Insert Hole Blue/Red Housing PCB Dip Switch 2.54 mm Pitch Dip Switch Smd 2.54 Slide Dip Switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.08

≥10000 Pieces

US $0.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: DS-2.54

Max. Current:: 0.1A

Product Name:: Dip Switches

Current Rating:: 0.1A

Voltage Rating:: 50V AC/DC

Dielectric Strength:: AC500V / 1min

Insulation Resistance:: 100MΩ Min

Certificate:: RoHs

Operating Temperature:: -20℃-+70℃

Operating Force:: 8N

Certification:: RoHS

Quick Details

Max. Voltage:: 50V DC

Place of Origin:: Guangdong, China

Brand Name:: SZTuozhi

Model Number:: DS-2.54

Max. Current:: 0.1A

Product Name:: Dip Switches

Current Rating:: 0.1A

Voltage Rating:: 50V AC/DC

Dielectric Strength:: AC500V / 1min

Insulation Resistance:: 100MΩ Min

Certificate:: RoHs

Operating Temperature:: -20℃-+70℃

Operating Force:: 8N

Certification:: RoHS

Specifications			Specifications
Product Name		Dip Switches
_{Electrical Characteristics}	_{Electrical Feature}	Current Rating	0.1A
			Voltage Rating	50V AC/DC
			Contact Resistance	100mΩ Max
			Dielectric Withstanding Voltage	500V AC(50/60Hz) / 1 Min
			Insulation Resistance	100MΩ Min / 500V DC
Material		Phosphor Bronze / Brass / UL94-0 PA66
Operating Force		8N
Operating Temperature		-45℃~+85℃		-20℃+65℃
OEM/ODM		Support
Application		Consumer Electronics, Computer Servers, Instrumentation, Test and Measurement, Among others

Product Description

Why Choose Us

●Different Optional Product

● Oem/Odm Custom Service

● Strict Product Quality Test

●Fast Delivery Service

to get latest price and wonderful service.

We are sincerely looking forward to cooperatering with you!

There are a wide range of products in our store, and many of them have not been released yet. Welcome to send product pictures or datasheet what you need , and we will provide you with quotation as soon as possible.
